Product Details:
|
| Color: | Black | Length: | 3m |
|---|---|---|---|
| Connector: | None. Transceivers Are Permanently Attached. | Application: | Data Center |
| Operating Temperature: | 0 To 70°C | Receiver Type: | PIN |
| Transmitter Type: | VSCEL | Cable Diameter: | 3.0mm |
| Cable Type: | Copper Cable | Weight: | 0.6kg |
| High Light: | 5m JNP-QSFP-DAC-5M,40G QSFP+ Direct Attach Copper Cable,5m 40G QSFP+ DAC Cable |
||

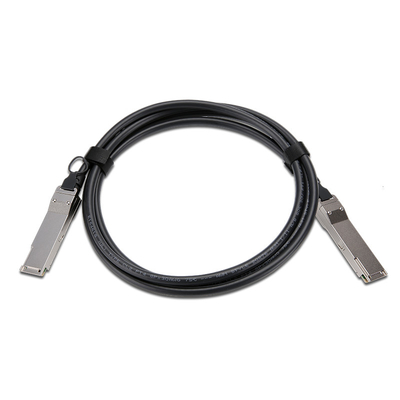

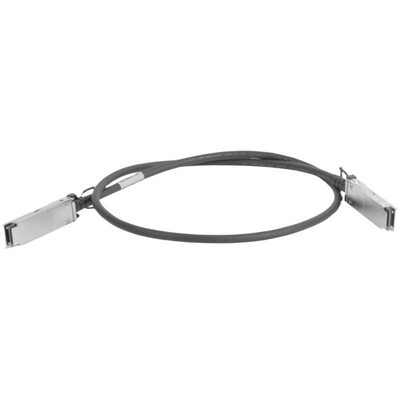

5m JNP-QSFP-DAC-5M Direct Attach Copper Cable Compatible Juniper Networks 40G QSFP+ Passive
40GBase-CU QSFP+ Direct Attach Cable (Passive Twinax, 5m)
This is a Juniper Networks JNP-QSFP-DAC-5M compatible 40GBase-CU QSFP+ to QSFP+ direct attach cable that operates over active copper with a maximum reach of 5.0m (16.4ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a 3 years warranty.
The compatible Juniper Networks JNP-QSFP-DAC-5M Compatible 40G QSFP+ Passive Direct Attach Copper Twinax Cable is designed for use in 40GBASE Ethernet. It provides a QSFP+ to QSFP+ copper direct-attach solution. This cable is compliant with IEEE 802.3ba Ethernet standard and QSFP MSA Compliant.With these features, this easy to install, high speed, cost-effective direct attach copper twinax cable is suitable for short-distance connectivity within a rack or between adjacent racks in data centers,such as 40G Switches, Routers, Network Interface Cards (NICs) and Network Storage Systems.
Features
● QSFP conforms to the Small Form Factor SFF-8436
● 4-Channel Full-Duplex Passive Copper Cable
● Operates 1G to 10.3125 Gbps data rate per channel(per channel)
● Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
● Available in lengths of 0.5m(1.6ft) to 7m (23ft)
● High-Density QSFP 38-PIN Connector
● Low power consumption: 0.02 W (typ.)
● I2C based two-wire serial interface for EEPROM signature
● Single 3.3V power supply
● 24AWG to 30AWG cable available
● Operating temperature range: 0 to 70°C
● RoHS Compliant and Lead-Free
Applications
● 40 Gigabit Ethernet links
● Fiber Channel over Ethernet
● Data storage and communication industry
● Switches, servers,routers and HBA
● Enterprise network
| Max Data Rate | 40Gbps |
| Minimum Bend Radius | 40mm |
| Jacket Material | PVC |
| Cable Type | Copper Cable |
| DDM/DOM | NA |
| Wire AWG | 26 AWG |
| Cable impedance | 100 Ω |
| Power supply | 3.3V |
| Protocols | 40GbE and high-density 10GbE interconnects Datacom/Telecom switch & router connections Data aggregation and backplane applications Proprietary high-speed Interconnections Infiniband Connectivity SDR/DDR/QDR Data center cabling infrastructure |
Description
The QSFP-DAC-5M direct attach copper cable assembly (also known as DAC) is suitable for very short distances and offers a highly cost-effective way to establish a 40 Gigabit link connectivity between devices using QSFP+ ports. The QSFP+ DAC cable is designed for 40Gb/s high-speed interconnecting networking applications such as high-performance computing (HPC), enterprise networking including top-of-rack switching and network storage markets. It fully complies with QSFP+ Multi-Source Agreement (MSA) standards SFF-8436 and IEEE 802.3ba 40GBASE-CR4.Topstar’s high-quality QSFP+ DAC copper cable provides a cost-effective replacement to QSFP+ transceiver and QSFP+ active optical fiber (AOC).
