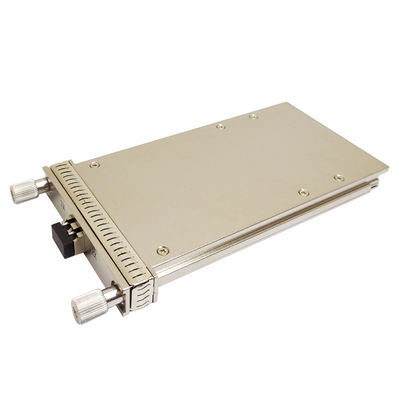

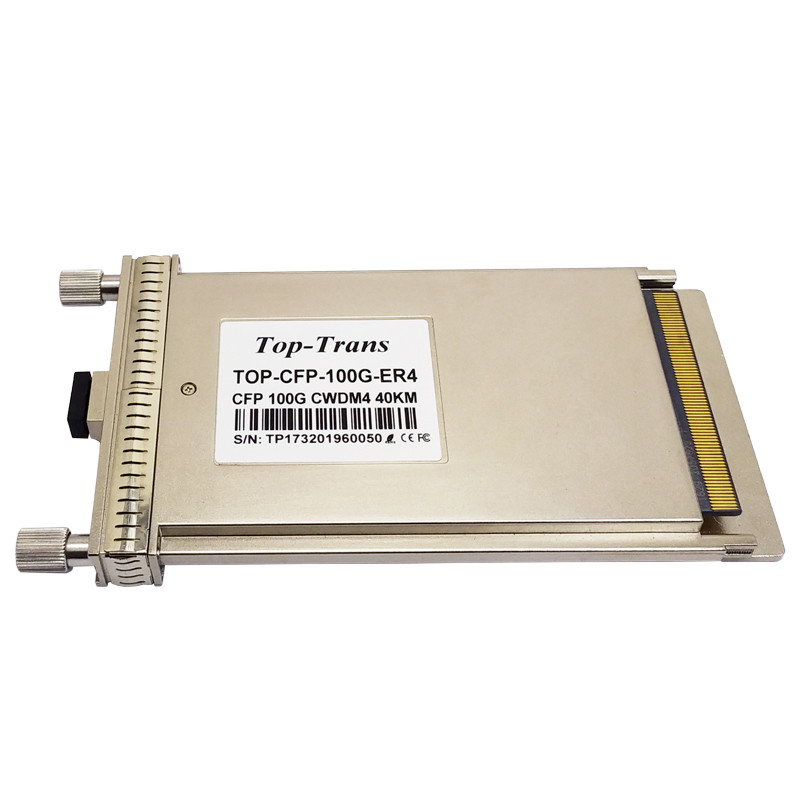

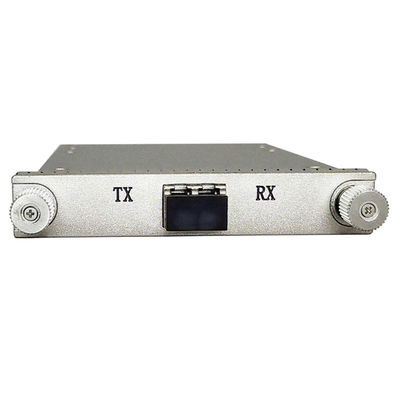

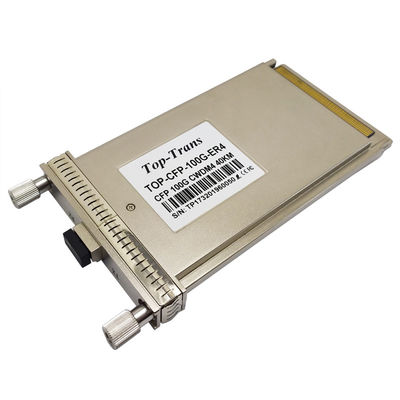

100G 40km CFP Optical Module LWDM4 ER4 Fiber Optic Sfp Module

100G 40km CFP Optical Module LWDM4 ER4 Fiber Optic Sfp Module
100G 40km CFP Optical Module LWDM4 ER4 Fiber Optic Sfp Module 100G 40km CFP Optical Module LWDM4 ER4 Fiber Optic Sfp Module 100G 40km CFP Optical Module LWDM4 ER4 Fiber Optic Sfp Module 100G 40km CFP Optical Module LWDM4 ER4 Fiber Optic Sfp Module

Large Image :  100G 40km CFP Optical Module LWDM4 ER4 Fiber Optic Sfp Module

Product Details:
Place of Origin: China
Brand Name: Top-Trans
Certification: CE FCC RoHS
Model Number: TCFP-100G-ER4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price is negotiable
Packaging Details: According to quantity ,we can provide professional package, 1/10/20 pcs in one anti-static plastic box, retail package. We can also do as your requirement.
Delivery Time: 1-3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200pcs per Day

100G 40km CFP Optical Module LWDM4 ER4 Fiber Optic Sfp Module

Description
Form-Factor: CFP Data Rate: 100G
Center Wavelength: LWDM4 Transmission Distance: 40KM
Temperature: 0C~+70C OEM Or ODM: Support
Weight: 0.3KG Per Piece Warranty: 3 Years
Highlight:

LWDM4 ER4 Fiber Optic Sfp

,

LWDM4 ER4 Fiber Optic Sfp Modules

,

100G LWDM4 ER4 CFP Optical Modules

CFP 100G Transceiver 40km LAN-DWM LWDM4 ER4 Fiber Optic Sfp Module

CFP 100G 40KM Fiber Optic Sfp Module



TOP-CFP-100G-ER4 CFP transceivers are designed for use in 100 Gigabit Ethernet links over 40km single module fiber, and it compliant to the CFP MSA and IEEE 802.3ba 100GBASE-ER4. Digital diagnostics are available via MDIO as specified in the CFP MSA Management Interface Specification.

The transceiver's designs are optimized for high performance and cost efficiency to provide customers the best solutions for Datacom and Telecom applications.

The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC.



Parameters

Fiber Type Single-mode Cable
Connector LC
Lasers and TIA DFB+PIN

Data Rate, each Lane

25.78125 Gbps

Rx Sensitivity -10.6 dBm to 4.5 dBm

Tx Transmitter

8.9 dBm
Max Power Consumption Less than 12 W
Single Power Supply 3.3 V



PRODUCT FEATURES

  •  Hot Pluggable CFP MSA package
  •  IEEE 802.3ba 100GBASE-ER4 compliant
  •  ITU-T 4I1-9D1F compliant
  •  CFP-MSA-HW-Spec-rev1-40 compliant
  •  Up to 40km for G.652 SMF
  •  Receiver: 4-lane x 25Gb/s PIN ROSAs
  •  Transmitter: 4-lane x 25Gb/s LAN-WDM EA-DFB TOSAs (1295.56,1300.05,1304.58,1309.14nm)
  •  10x10G Electrical Serial Interface (CAUI/OTL4.10)
  •  MDIO management interface with Digital Diagnostic
  •  +3.3V power supply
  •  Power consumption less than 12W
  •  Compact size: 144.75 x 82 x 13.6 mm
  •  Operating case temperature: 0 to +70 ℃
  •  Duplex SC or LC Receptacle
  •  ROHs-6 compliant



APPLICATIONS

  •  100GBase-ER4 Ethernet
  •  ITU-T OTU4



FAQ

Q1. Are your transceiver modules compatible with Cisco?

A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.



Q2. How does your company do regarding quality control?

A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.



Q3. What are the trade terms?

A3: EXW-Shenzhen or FOB-Shenzhen or More you want

Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.



Q4. What is operating temperature range of optical modules?

A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)



We can supply according to your request.
