10m SC UPC To SC UPC Patch Cord Duplex 3.0mm OFNR 9/125 Single Mode

5m LC UPC To SC UPC Duplex OS2 Single Mode PVC3.0mm Fiber Patch Cable

High Quality and Cost-effective 9/125μm Single Mode Bend Insensitive Fiber Optic Cable

Topstar manufactures and supplies Fiber Optic Patch Cord/ Cable/ Jumper/ Lead SC/UPC to SC/APC, 9/125um Singlemode, Simplex, 3mm Cable, 10M Ceramic ferrules

Exceeds industry standards
Guaranteed quality and performance

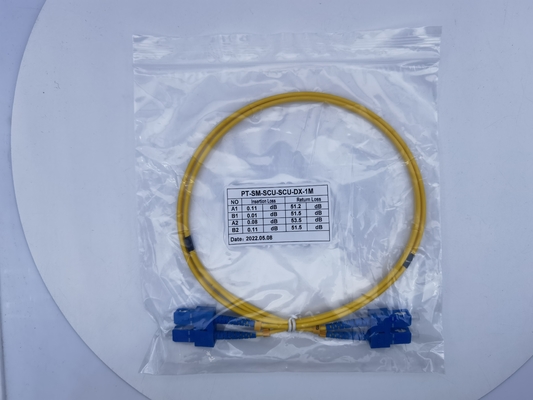

100% tested and recorded for insertion loss and return loss

Looking for a great deal on 1m (3ft) to 20 M(15 ft) SC/UPC to SC/UPC Duplex Single Mode PVC 3.0mm Fiber Optic Patch Cable ; G652D? Explore a wide range of the best and most affordable fiber optic components which cna meet your deamnd affordable and quality 9/125μm Single Mode Bend Insensitive Fiber Optic Cable offered by Topstar Technology Industrial Co.Ltd.

OS1 Single mode cable is used widely in the telecommunications industry for high speed single mode transmission applications.
Easily recognized by its yellow jacket and is available in both simplex and duplex formats.

The 9/125μm OS2 single mode has a narrow core, and the index of refraction between the core and the cladding changes less than it does for multimode fibers. It is ideally for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections.

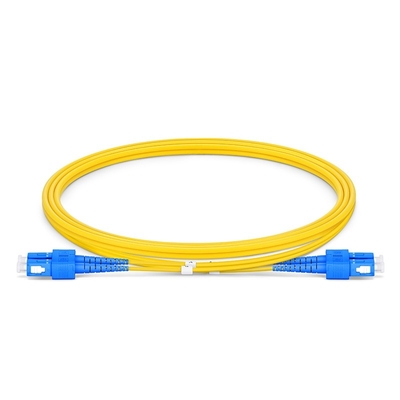

SC UPC to SC UPC Duplex OS2 Single Mode PVC , 3.0mm Fiber Optic Patch Cable

1m (3ft) to 20 M(15 ft) SC/UPC to SC/UPC Duplex Single Mode PVC 3.0mm Fiber Optic Patch Cable,G652D;

Specifications

General Specifications

• Flame rating: LSZH™/FRNC
• Cable assembly type: Two Fibre
• Fibre Category: single-mode (OS2)

Temperature Range

• Operation: -20 °C to 60 °C
• Installation and assembly: -5 °C to 50 °C
• Storage: -25 °C to 70 °C

Design - Connector A

• Connector Type: SC duplex
• Ferrule Material: Ceramic
• Polish: UPC
• Housing material: Composite
• Housing Colour: Blue
• Boot type: Individual
• Boot colour: blue / white
• Keyed (security): No

Mechanical Specifications - Connector A

• Durability: ≤ 0.2 dB 1000 rematings, FOTP-21
• Tensile strength jacketed cable: 44 N

Optical Specifications - Connector A

• Insertion loss, typical: 0.15 dB
• Insertion loss, max.: 0.4 dB
• Reflectance, typical: ≤ -59 dB

Design - Connector B

• Connector Type: SC duplex
• Ferrule Material: Ceramic
• Polish: UPC
• Housing material: Composite
• Housing Colour: Blue
• Boot type: Individual
• Boot colour: blue / white
• Keyed (security): No

Mechanical Specifications - Connector B

• Durability: ≤ 0.2 dB 1000 rematings, FOTP-21
• Tensile strength jacketed cable: 44 N

Optical Specifications - Connector B

• Insertion loss, typical: 0.15 dB
• Insertion loss, max.: 0.4 dB
• Reflectance, typical: ≤ -59 dB

Cable design

• Fibre Count: 2
• Outer diameter: 2.0 mm x 4.1 mm
• Outer jacket colour: yellow
• Outer jacket material: LSZH™/FRNC
• Minimum Bend Radius: 30 mm
• Crush resistance (reversible): 1000 N/10 cm
• Tensile strength: 400 N
