Product Details:
|
| Color: | Aqua | Fiber Type: | Multi Mode |
|---|---|---|---|
| Length: | 10m | Connector: | MPO To MPO |
| Application: | FTTx | Connector Type: | MPO Female |
| Operating Temperature: | -10°C To +70°C | Return Loss: | ≥20dB |
| Insertion Loss: | 0.35dB Max (0.15dB Typ.) | Fiber Count: | 12 Fibers |
| Cable Diameter: | 3.0mm | ||
| High Light: | Aqua 1m mpo mpo cable,Fiber Optic Trunk Cable OM3 Multimode,type ofnp fiber optic cable OM3 |
||

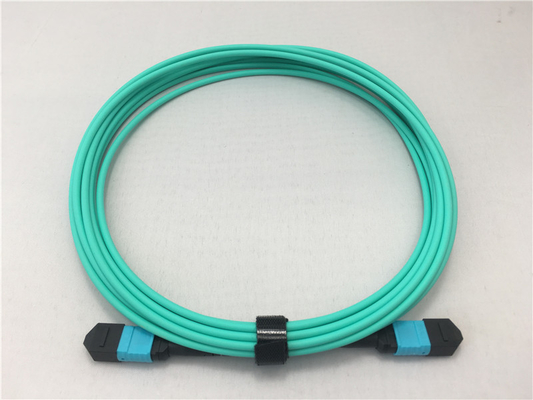

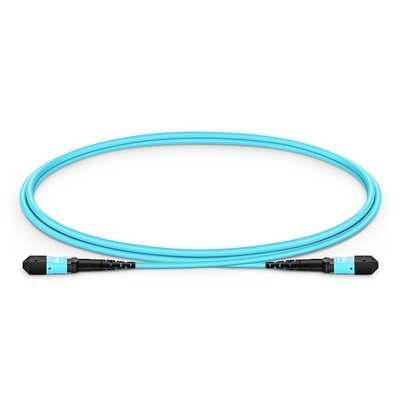

1m MPO Female to MPO Female OM3 Multimode Trunk Cable 12 Fibers Type B Plenum OFNP Aqua
MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. it is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
| Fiber Type | OM3 50/125um |
| Wavelength | 850/1300nm |
| 10G Ethernet Distance | 300m at 850nm |
| 40/100G Ethernet Distance | 100m at 850nm |
| Polish Type | UPC to UPC |
| Minimum Bend Radius | 7.5mm |
| Attenuation at 850nm | ≤2.3 dB/km |
| Attenuation at 1300nm | ≤0.6 dB/km |
| Installation Tensile Load | 66N |
| Tensile Strength (Long/Short Term) | 80N/240N |
10Gb 50/125 Multimode OM3 MPO Fiber Optic Trunk Cable (12 Fiber, MPO Female, Type B, LSZH, Aqua)
The requirements for data center infrastructures are increasing as the rapid growth in worldwide IT usage continues. As an experienced and innovative fiber optic cable manufacturer, Topstar supplies complete MPO trunk fiber optic cabling solutions for high-density optical connectivity in the modern data center. Compared with the classical fiber optic cabling solutions, this high-density fiber optic solution offers higher flexibility and space-saving while supporting very high data rates, such as 10-Gigabit, 40-Gigabit Ethernet and 100-Gigabit Ethernet.
Topstar's PT-12OM3MPO-10M is a factory pre-terminated 50/125 Multimode OM3 MPO trunk cable, offering the user the advantage of consistent quality, much faster installation, and simpler cable management. The MPO fiber optic trunk cable is manufactured with multiple, 12-strand MPO female connectors and 12 core OM3 fiber cables. The trunk cable conforms to Method B (Cross-Connect) polarity, and the MTP® connector is available upon request. This OM3 MPO trunk cable is suitable for use in 40G QSFP SR4 transceivers, 100G QSFP28 SR4 connections.
