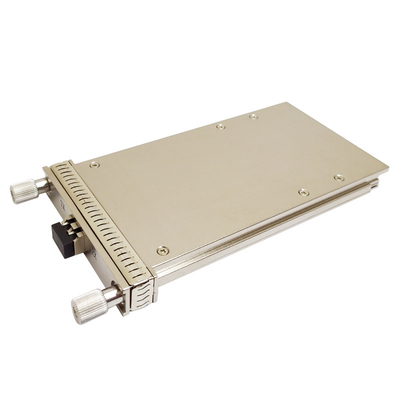

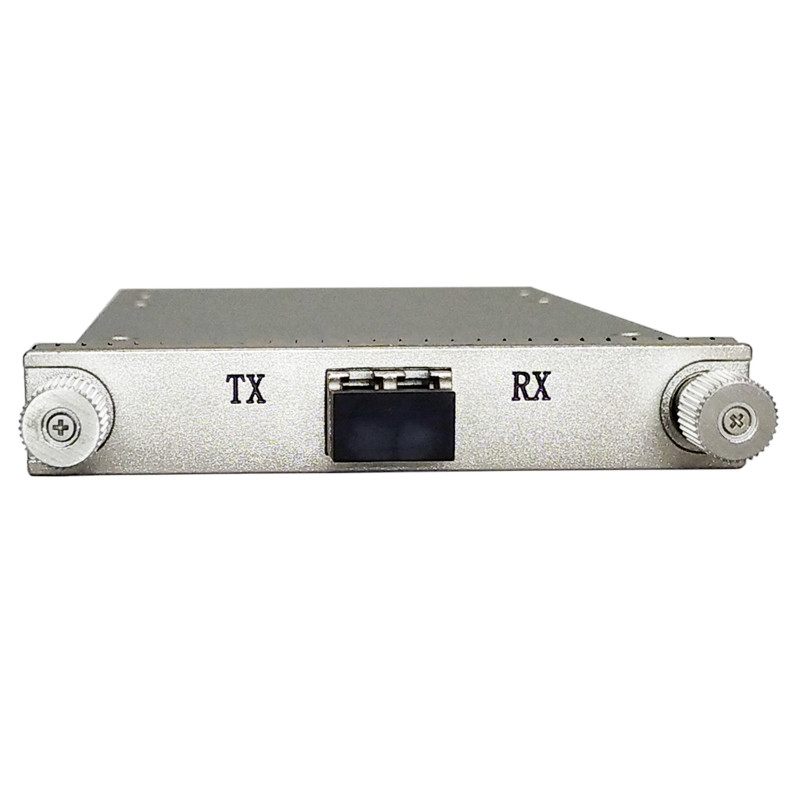

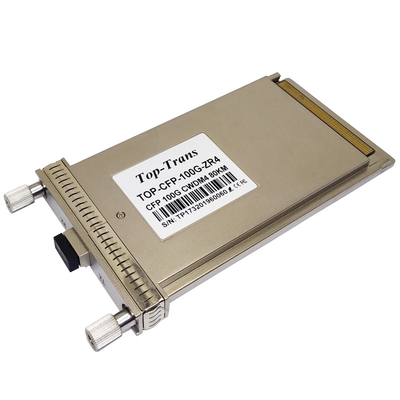

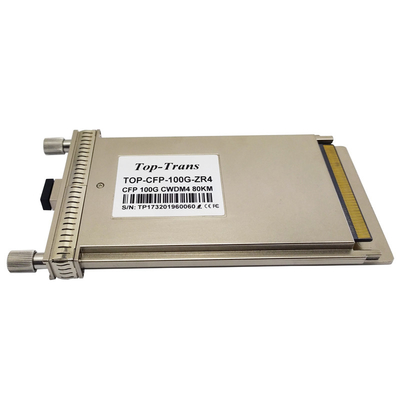

LAN-DWM 80KM ZR4 100G CFP Transceiver For Metro Ethernet Switch

LAN-DWM 80KM ZR4 100G CFP Transceiver For Metro Ethernet Switch
LAN-DWM 80KM ZR4 100G CFP Transceiver For Metro Ethernet Switch LAN-DWM 80KM ZR4 100G CFP Transceiver For Metro Ethernet Switch LAN-DWM 80KM ZR4 100G CFP Transceiver For Metro Ethernet Switch LAN-DWM 80KM ZR4 100G CFP Transceiver For Metro Ethernet Switch

Large Image :  LAN-DWM 80KM ZR4 100G CFP Transceiver For Metro Ethernet Switch

Product Details:
Place of Origin: China
Brand Name: Top-Trans
Certification: CE FCC RoHS
Model Number: TCFP-100G-ZR4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price is negotiable
Packaging Details: According to quantity ,we can provide professional package, 1/10/20 pcs in one anti-static plastic box, retail package. We can also do as your requirement.
Delivery Time: 1-3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200pcs per Day

LAN-DWM 80KM ZR4 100G CFP Transceiver For Metro Ethernet Switch

Description
Form-Factor: CFP Data Rate: 100G
Center Wavelength: LWDM4 Transmission Distance: 80KM
Temperature: 0C~+70C OEM Or ODM: Support
Weight: 0.3KG Per Piece Warranty: 3 Years
Highlight:

LAN-DWM 80KM CFP Transceiver

,

cfp 100g For Metro Ethernet Switch

,

Metro Ethernet Switch CFP Transceiver

100G CFP Transceiver LAN-DWM 80KM ZR4 Metro Ethernet Switch

100G CFP Transceiver Metro Ethernet Switch



TOP-CFP-100G-ZR4 CFP transceivers are designed for use in 100 Gigabit Ethernet links over 40km single module fiber, and it compliant to the CFP MSA and IEEE 802.3ba 100GBASE-ZR4. Digital diagnostics are available via MDIO as specified in the CFP MSA Management Interface Specification.

The transceiver's designs are optimized for high performance and cost efficiency to provide customers the best solutions for Datacom and Telecom applications.

The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC.



Parameters

Fiber Type Single-mode Cable
Connector Duplex LC
Lasers and TIA EML+PIN

Data Rate, each Lane

25.78125 Gbps

Rx Sensitivity < -28 dBm

Tx Transmitter

-6.5~+12.5 dBm
Max Power Consumption Less than 12 W
Single Power Supply 3.3 V



PRODUCT FEATURES

  •  Supports multi-rate (100GBASE-100GE and OTU4); from 103.1Gb/s to 111.8Gb/s aggregate;
  •  Lane bit rate 25.78 Gb/s 100GE, 27.95 Gb/s OTU4;
  •  Up to 80km transmission on SMF;
  •  LAN WDM laser and PIN receiver with SOA;
  •  High speed I/O electrical interface (CAUI-10);
  •  MDIO interface with integrated Digital Diagnostic monitoring;
  •  CFP MSA package with duplex LC connector



APPLICATIONS

  •  100GBase-ZR4 Ethernet
  •  ITU-T OTU4



FAQ

Q1. Are your transceiver modules compatible with Cisco?

A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.



Q2. How does your company do regarding quality control?

A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.



Q3. What are the trade terms?

A3: EXW-Shenzhen or FOB-Shenzhen or More you want

Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.



Q4. What is operating temperature range of optical modules?

A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)



We can supply according to your request.
