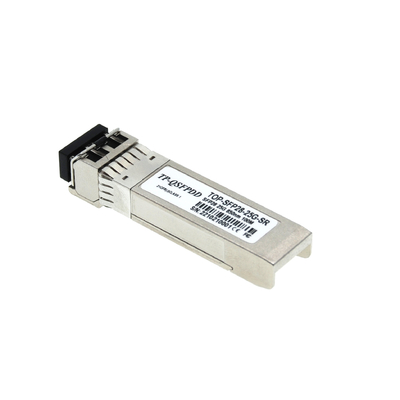

SFP-25G-MR-SR Arista Compatible Transceivers SFP28 25G 100M MMF For Campus LAN

SFP-25G-MR-SR Arista Compatible Transceivers SFP28 25G 100M MMF For Campus LAN
SFP-25G-MR-SR Arista Compatible Transceivers SFP28 25G 100M MMF For Campus LAN SFP-25G-MR-SR Arista Compatible Transceivers SFP28 25G 100M MMF For Campus LAN

Large Image :  SFP-25G-MR-SR Arista Compatible Transceivers SFP28 25G 100M MMF For Campus LAN

Product Details:
Place of Origin: Guangdong, China
Brand Name: Top-Trans
Certification: ISO9001, ROHS, CE, FCC
Model Number: SFP28-25G-SR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: SFP Blister box + Anti-static Bag
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, Paypal,
Supply Ability: 3000pcs per month

SFP-25G-MR-SR Arista Compatible Transceivers SFP28 25G 100M MMF For Campus LAN

Description
Data Rate: 25G Form-Factor: SFP28
Center Wavelength: 850NM Transimission Distance: 70M OM3 100M OM4 MMF
OEM/ODM: Supported Temperature: 0°C~70°C Commercial
Weight: 25 Grams Warranty: 3 Years
Highlight:

Arista Transceivers SFP28 25G

,

SFP28 25G 100M MMF

,

SFP-25G-MR-SR Arista Transceivers

Arista SFP-25G-MR-SR Compatible Transceivers SFP28 25G 100M MMF For Campus IoT

Parameters



Data Speed 25.78 Gbps
Center Wavelength 850NM
Fiber Type Multimode Fiber
Transmission 70M OM3, 100M OM4
Connector LC Duplex
Lasers VSCEL + PIN
Tx power -8.4 - 2.4 dBm
Rx sensitivity -10 dBm
Extinction Ratio 2 dB
Power Consumption < 1 W
Single Power Supply 3.3 v



Top-Trans SFP-25G-SR is Arista Networks SFP-25G-MR-SR compatible 25GBASE-SR Transceiver. It is fully interoperable with the SFP28 interface of Arista 720XP Series leaf switches for Campus IoT. This module uses an 850nm VCSEL transmitter and PIN receivers and supports the transmission distance of 100M over OM4 Multimode Fiber (70 over OM3). It offers high speed, low latency, low power consumption 25GBASE-SR connection fully compliant with IEEE 802.3by, IEEE 802.3cc, SFF-8402, SFF-8472, 21CFP-1040 LC#50 7/2001. It features build-in DDM/DOM via the I2C Interface to monitor the operating status.



Key Features



  • Hot-pluggable SFP28 form factor

  • Supports 25.78Gbps data rate

  • Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF

  • 850nm VCSEL laser and PIN photo-detector

  • Internal CDR on both Transmitter and Receiver channel

  • Duplex LC receptacle

  • Single 3.3V power supply

  • Power dissipation < 1W

  • Digital diagnostics functions are available via the I2C interface

  • RoHS-6 compliant

  • Commercial case temperature range: 0°C to 70°C

Protocol



  • 25GBASE-SR Ethernet

  • Infiniband EDR

FAQ



  • What's the price of this compatible transceiver?

The price is negotiable and project-based

please advise the project details with qty, link budget, compatibility and lead time requirement.

Our sale will make the best quote meeting your expectation





  • Can you ship this SFP module to my place?


Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.

​​

  • What's the lead time of production?

For trial qty, we have stock ready to ship in 3 working days.

For large qty, our standard monthly production capacity is 3000pcs, up to 10000pcs.



  • What brand compatibilities have your SFP been verified?

Nokia-Alcatel, Ericsson, Cisco, Dell-EMC, Juniper, Arista, Extreme Network, Fortinet, 3COM, BDCOM, ZTE, DCN
