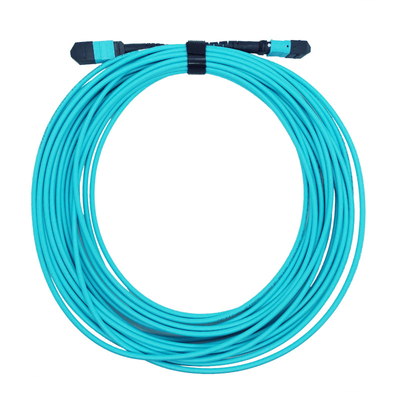

Type B Plenum MTP To MTP Fiber Patch Cable 10M 8 Fibers OM4 Multimode

Type B Plenum MTP To MTP Fiber Patch Cable 10M 8 Fibers OM4 Multimode
Type B Plenum MTP To MTP Fiber Patch Cable 10M 8 Fibers OM4 Multimode Type B Plenum MTP To MTP Fiber Patch Cable 10M 8 Fibers OM4 Multimode

Large Image :  Type B Plenum MTP To MTP Fiber Patch Cable 10M 8 Fibers OM4 Multimode

Product Details:
Place of Origin: China
Brand Name: Top-Trans
Certification: CE ROHS
Model Number: PT-8OM4MTP-C10
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Price is negotiable
Packaging Details: paper cartoon
Delivery Time: 2-3 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000pcs per month

Type B Plenum MTP To MTP Fiber Patch Cable 10M 8 Fibers OM4 Multimode

Description
Color: Aqua Fiber Type: Multi Mode
Length: 10m Connector: MTP To MTP
Application: Data Center Connector Type: MTP Female
Operating Temperature: -10°C To +70°C Return Loss: ≥20dB
Insertion Loss: 0.35dB Max (0.15dB Typ.) Fiber Count: 8 Fibers
Cable Diameter: 3.0mm
Highlight:

Type B Plenum Fiber Patch Cable

,

mtp to mtp fiber cable 10M 8 Fibers

,

8 Fibers OM4 multimode fiber patch cable

10M 8 fibers MTP Female to MTP Female OM4 Multimode Type B, Plenum Elite Trunk Cable





MTP FiberShield Specifications

8 Fiber Multimode (OM4) MTP Fiber Cable w/FiberShield with MTP(Female)-MTP(Female) connectors. Use this 5 Meter (Approx. 15ft) for 40G 50/125 (OM4) fiber optic links Type: For 40G Networks - Fiber optic cable for connection between two 40G QSFP+ transceivers with MTP/MPO interfaces or other 10G/40G network links. MTP Polarity Method B (Cross-Connect) - Key-up to Key-up (Polarity A or C optional), MTP-MTP.

Topstar's 8 fiber MTP cables feature our new and exclusive FiberShield design. The FiberShield structure employs three times (3x) the amount of the PVC jacket and DuPont Kevlar to protect the multitude of delicate optical fibers located inside the cables. This ruggedized cable structure results in a flexible yet robust 4.5mm MTP cable that is 5x stronger than the standard 3.0mm cable.



  • Fiber Optic Patch Cable, 0.5 m - 100 m
  • MTP® (female) UPC to MTP® (female) UPC
  • MTP® connector complies to the MPO standard but ensures lower Insertion Loss
  • 8 Cores for 40G (4x 10G) or 100G (4x 25G) applications
  • Multimode - Fiber grade ITU-T G.651.1

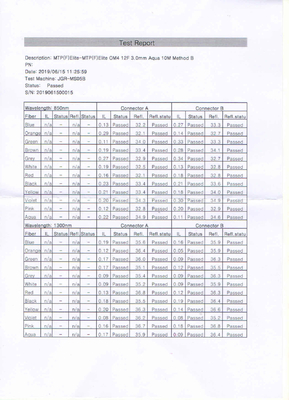

Type B Plenum MTP To MTP Fiber Patch Cable 10M 8 Fibers OM4 Multimode 0



Fiber Type OM4 50/125um
Wavelength 850/1300nm
10G Ethernet Distance 400m at 850nm
40/100G Ethernet Distance 150m at 850nm
Polish Type UPC to UPC
Minimum Bend Radius 7.5mm
Attenuation at 850nm ≤2.3 dB/km
Attenuation at 1300nm
≤0.6 dB/km
Installation Tensile Load 66N
Tensile Strength (Long/Short Term) 80N/240N




Use this MTP Multimode Cable for 40G/100G (4 Send - 4 Receive):
100G QSFP+ SR4 links between two Juniper, Finisar or Cisco QSFP+ transceivers (100GBASE-SR4).
100G QSFP100 SR4 links between two Cisco, Juniper or Finisar QSFP100 transceivers (100GBASE-SR4).
40G QSFP+ SR4 links between two Cisco, Finisar or Juniper QSFP+ transceivers (40GBASE-SR4).
40G QSFP SR4 links between two Cisco, Finisar or Juniper QSFP transceivers (40GBASE-SR4).
Other 10G/40G/100G links between patch panels and transceivers.
Genuine MTP Connectors (US Conec). Manufactured using OM4 fiber, standard jacket MTP Fiber Cable w/FiberShield is designed for light to medium duty indoor applications such as data-center racks and desktop/network connections. Optional MTP Elite (US Conec) low loss connectors available.
