Product Details:
|
| Color: | Aqua | Fiber Type: | Multi Mode |
|---|---|---|---|
| Length: | 10m | Connector: | MTP To MTP |
| Application: | Data Center | Connector Type: | MTP Female |
| Operating Temperature: | -10°C To +70°C | Return Loss: | ≥20dB |
| Insertion Loss: | 0.35dB Max (0.15dB Typ.) | Fiber Count: | 12 Fibers |
| Cable Diameter: | 3.0mm | ||
| High Light: | Type B Plenum MTP Trunk Cable,12fmtpom4 MTP Trunk Cable,5M 12 Fibers om4 mtp cable |
||

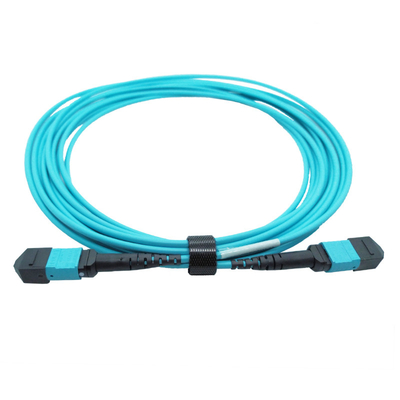

5M 12 fibers MTP Female OM4 Multimode Type B Plenum MTP Trunk Cable
The five-meter PT-12OM4MTP-C5 MTP Multimode Patch Cable supports 40/100 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers. With two female MTP connectors, this OM4-rated multimode fiber optic cable is recommended for high-density fiber patching between data center MDFs (main distribution frames) and IDF (intermediate distribution frames). It’s colored aqua for instant identification as an OM4 cable. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections.
The 12-fiber MTP connectors are about the same size as SC connectors, but are 12 times denser, freeing up circuit card and rack space for other cables. The cable is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts.
| Fiber Type | OM4 50/125um |
| Wavelength | 850/1300nm |
| 10G Ethernet Distance | 400m at 850nm |
| 40/100G Ethernet Distance | 150m at 850nm |
| Polish Type | UPC to UPC |
| Minimum Bend Radius | 7.5mm |
| Attenuation at 850nm | ≤2.3 dB/km |
| Attenuation at 1300nm | ≤0.6 dB/km |
| Installation Tensile Load | 66N |
| Tensile Strength (Long/Short Term) | 80N/240N |
Premium multimode fiber optic cabling for transmitting 40/100 Gb data and voice signals over short distances. Designed for high-density connections between network equipment in telecom rooms and data centers.
Push/pull tab connectors install/remove with one hand
12-fiber MTP/MPO connectors with 12x density of SC connectors
100% tested for low insertion loss and back reflection
Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
50/125 OM4-rated multimode fiber
Aqua color for easy OM4 identification

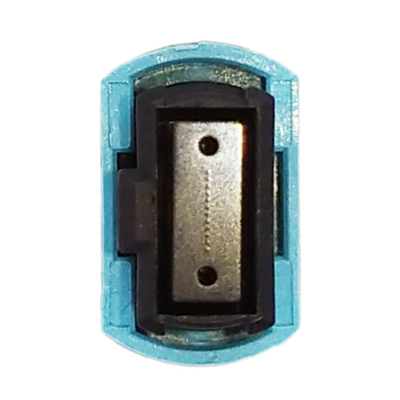

MTP/MPO Connectors with Push/Pull Tabs
12-fiber female connectors 12 times denser than SC connectors
Push/pull tab connectors easy to install and remove with one hand
100% tested for low insertion loss and back reflection
Error-Free Signal Transfer
50/125 duplex glass fiber construction
Plenum-rated jacket perfect for ceilings, walls and ducts
