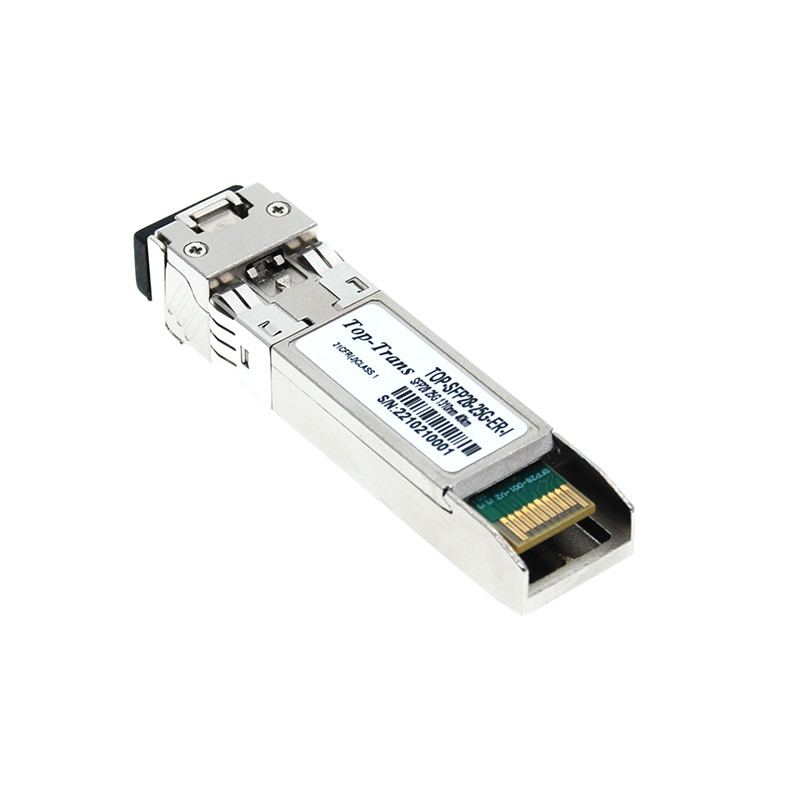

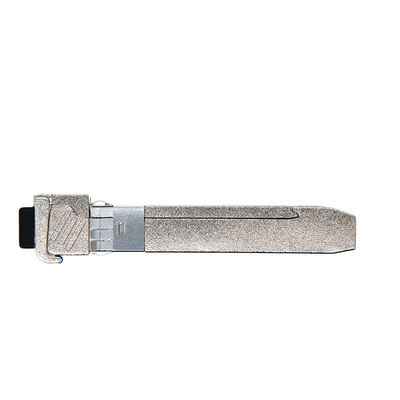

10KM SMF 25G SFP28 Transceiver 25GBASE-LR For Enterprise Data Center Interconnect

10KM SMF 25G SFP28 Transceiver 25GBASE-LR For Enterprise Data Center Interconnect
10KM SMF 25G SFP28 Transceiver 25GBASE-LR For Enterprise Data Center Interconnect 10KM SMF 25G SFP28 Transceiver 25GBASE-LR For Enterprise Data Center Interconnect

Large Image :  10KM SMF 25G SFP28 Transceiver 25GBASE-LR For Enterprise Data Center Interconnect

Product Details:
Place of Origin: Guangdong, China
Brand Name: Top-Trans
Certification: ISO9001, ROHS, CE, FCC
Model Number: TSFP28-25G-LR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: SFP Blister Box + Anti-static Bag
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 3000pcs per month

10KM SMF 25G SFP28 Transceiver 25GBASE-LR For Enterprise Data Center Interconnect

Description
Data Rate: 25G Form-Factor: SFP28
Center Wavelength: 1310NM Transimission Distance: 10KM SMF
OEM/ODM: Supported Temperature: 0°C~70°C Commercial
Weight: 25 Grams Warranty: 3 Years
Highlight:

10KM SMF 25G SFP28 Transceiver

,

10KM SMF 25GBASE-LR

,

SFP28 Transceiver 25GBASE-LR



25GBASE-LR SFP28 Transceivers 10KM SMF For Enterprise Data Center Interconnect



Top-trans SFP28-25G-LR is designed for data center and Enterprise wide-area interconnection. This SFP28 module provides high speed, low latency, and reliable optic connection for service distribution within a wide area region and seamless communication.



This SFP28 module can interoperate with the market mainstream platforms like Cisco, Arista, Dell, Mellanox, Broadcom, and Lenovo/IBM.



It is fully compliant with the industry MSA agreement for 25GBASE-LR, using 1310NM wave for 10KM transmission over single-mode fiber with LC duplex connectors and an SFP28 interface for port contact with switches, servers, and NIC. With the Built-in DOM/DDM function, network maintenance can monitor its working statuses like operation temperature, voltage, bias current, RX power, and TX power for network diagnostic and adjustment.



Key Features



  • Hot-pluggable SFP28 form factor

  • Supports 25Gbps data rate

  • Maximum link length 40KM over OS2 Single Mode Fiber

  • 1310NM DFB laser and APD photo-detector

  • Internal CDR on both Transmitter and Receiver channel

  • Duplex LC receptacle

  • Single 3.3V power supply

  • Power dissipation < 1W

  • Digital diagnostics functions are available via the I2C interface

  • RoHS-6 compliant

  • Commercial case temperature range: 0°C to 70°C



Protocol



  • 25GBASE-LR Ethernet



Parameters





Data Speed

25.78 Gbps

Center Wavelength

1310NM

Fiber Type

Single Fiber

Transmission

10KM OS2 SMF

Connector

LC Duplex

Lasers

DFB + PIN

Tx power

-5 - 2 dBm

Rx sensitivity

-11.4 dBm

Extinction Ratio

3.5 dB

Power Consumption

< 1 W

Single Power Supply

3.3 v



Compatible Platform



  • Cisco, Mellanox, Broadcom, Dell-EMC, Juniper, Fortinet, Extreme Network, Avago, Finisar, Nokia, Ericsson



FAQ





Do your SFP works on the Cisco platform?

Yes, we always test our SFP compatibility with Cisco Nexus, Catalyst, Meraki, etc Series Switches


Can I use your SFP at the speed of 10GBASE?

Yes, we can provide the dual-rate version of 10/25GBASE



Can you provide other types of sfp28 modules?

Yes, we can provide an SFP28 module for dual fiber, single fiber(BIDI), and WDM (CWDM, DWDM, MWDM) systems.



Who is Topstar?​

Topstar is an integrated ICT solution provider for SFP transceivers, SAN FC Switches, NIC, and HBA.​

We are based in Shenzhen, with a Joint OEM factory to produce 3rd Party SFP transceivers

and a well-established distribution chain on Finisar, Brocade, Cisco, Innolight, AOI, Source, Broadcom, Dell-EMC
