5m LC UPC To SC UPC Duplex Fiber Patch Cable OS2 Single Mode

5m LC UPC To SC UPC Duplex OS2 Single Mode PVC3.0mm Fiber Patch Cable

High Quality and Cost-effective 9/125μm Single Mode Bend Insensitive Fiber Optic Cable

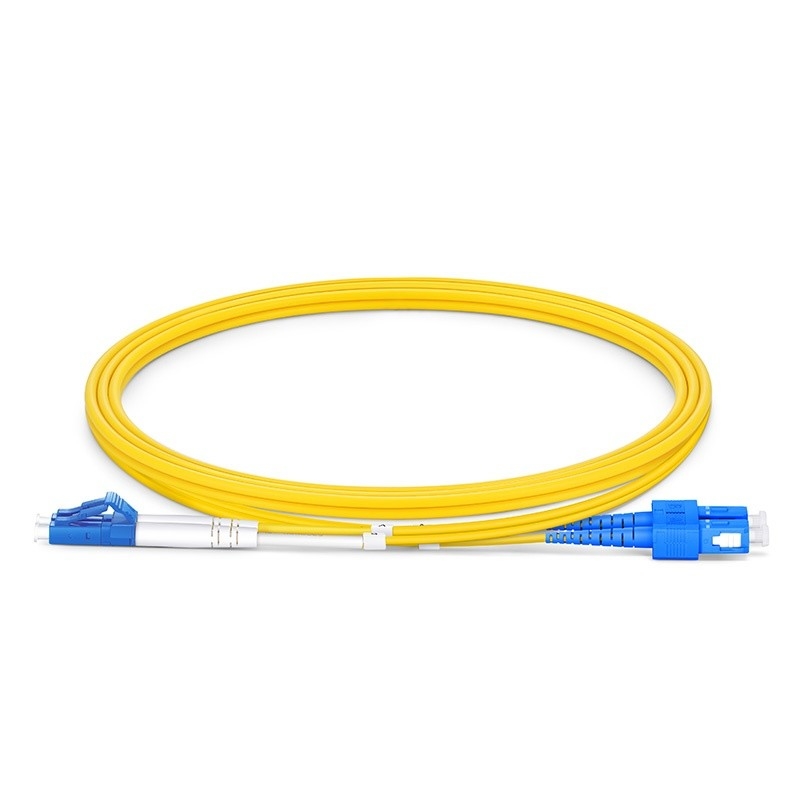

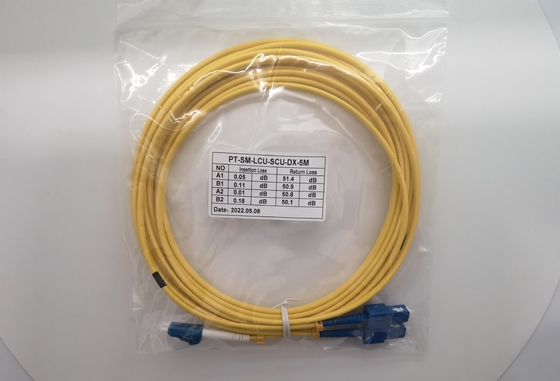

The LC/UPC-SC/UPC Fiber Patch Cord Duplex SM G.657.A1 2.0mm 1m Yellow (Part number: PT-SM-LCU-SCU-DX-5M) from Topstar is a Duplex patch cord with LC/UPC connector at one side and a SC/UPC connector at the other one. Fiber patch cords are a type of cables that have two connectors on both ends. Optic patch cords can come in simplex (1 fiber), duplex (2 fibers) or in MPO (12 fibers). The connectors on both sides of the patch cord, allow it to be quickly connected to another device such as an optical switch or other telecommunications/computer device.

• Singlemode
• Polishing UPC
• Return loss ≥ 55 dB (unmated), >60 dB (mated)
• Insertion loss ≤ 0,25 dB (Grade B1)
• Ferrule material Ceramic (zirconia)
• Ferrule diameter 1.25 mm / 2.5 mm
• Insertion / extraction cycles Min. 1000

Cable Mechanical Properties

• Cabled optical fiber OS2
• Nominal diameter core / sheath 9 / 125 μm
• Color Yellow
• Outer diameter 1.6 mm to 3 mm
• Sheath material LSZH, UL-94 V0
• Bending radius (static) 45 mm
• Temperature range -20°C +70°C
• Attenuation @ 850 / 1300 nm (dB/km) ≤ 3,2 / ≤ 0,8
• Attenuation @ 1310 / 1383 / 1550 nm (dB/km) ≤ 0,4 / ≤ 0,4 / ≤0,4

FAQ

Q1. Can you offer OEM/ODM serivce for those fiber patch cables?

A1:Topstar has rich expiriences inproducing OEM/ODM cases becaused of Profession R & D team

• Customized Logo
• Printing on Cable
• Label/PE bag/Carton design
• Different Color & Different Lengths Available

Q2. How does your company do regarding quality control?

A2: we offer 1 year warranty for those fiber accessories;

Q3. What are the trade terms?

A3: Ex-w, COF, CIP, FOB as client requested;
