Product Details:
|
| Generation: | 5 | Fibre Channel Ports: | 48 Universal (E, F, M, FL, Or N) Ports |
|---|---|---|---|
| Aggregate Bandwidth: | 768 Gbps End-to-end Full Duplex | Performance: | Auto-sensing Of 2, 4, 8, And 16Gb/s Ports |
| AC Input: | 85 V To 264 V ~5 A To 2.5 A | Data Traffic Types: | Fabric Switches Supporting Unicast |
| Weight: | 14.5kg | Frame Buffers: | 8.192 Per 24-portgroup; Dynamically Allocated Fibre Channel Performance |
| High Light: | 24 Port 8GB Brocade SAN Switch,EMC DS6510B brocade 8gb switch,Brocade SAN Switch EM-6510-24-8G-R |
||

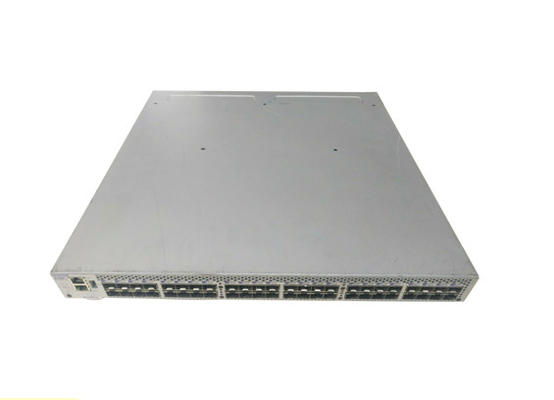

DS-6510B EMC 6510 24 Port Active EM-6510-24-8G-R 8GB Brocade FC Switch
EMC BladeCenter DS-6510B Rack Mountable Fibre Channel Switch
DS-6510B - The Connectrix DS-6510B is a 1U 48-port Fibre Channel (FC) Switch. With ports-on-demand the DS6510B can scale from 24 to 36 or 48 ports. The model has two hot-swappable, redundant integrated power supplies and fan FRUs. There are two options for these PS/FAN FRU’s; one for front-to-back airflow and the other for back-tofront airflow. The DS-6510B features 10Gb FC SFPs that will allow for easy integration with 10GB DWDM devices. The DS-6510B can also provide in flight compression and encryption for ISL connections.
| Main features | Systems Architecture |
| Media types | Hot-pluggable, industry-standard Small Form-Factor Pluggable (SFP+), LC connector; Short-Wavelength (SWL), Long-Wavelength (LWL); Extended LongWavelength (ELWL); distance depends on fiber optic cable and port speed. Supports SFP+ (2, 4, 8, 10, 16 Gbps) optical transceivers. |
| AC Power consumption |
110 W with all 48 ports populated with16 Gbps SWL optics 72 W for empty chassis with no optics
|
| Scalability | Full-fabric architecture with a maximum of 239 switches |
| Hot swappable components | Base switch includes dual hot-swappable power supply with integrated system cooling fans. |
| Management access | 110/100 Mbps Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45), and one USB port |
| ISL Trunking | Frame-based Trunking with up to eight 16 Gbps ports per ISL trunk; up to 128 Gbps per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS. |
| USB | One USB port for system log file downloads or firmware upgrades |
| Vibration | Operating: 0.5 g sine, 0.4 grms random, 5 Hz to 500 Hz Non-operating: 2.0 g sine, 1.1 grms random, 5 Hz to 500 Hz |
| Power supply |
Dual, hot-swappable redundant power supplies with integrated system cooling fans
|
| Port types | D_Port (Diagnostic Port), E_Port, EX_Port, F_Port, M_Port (Mirror Port); self-discovery based on switch type (U_Port); optional port type control |
| Fabric services | Simple Name Server (SNS); Registered State Change Notification (RSCN); NTP, RADIUS, LDAP, Switch and port binding, Reliable Commit Service (RCS), Advanced Zoning, Advanced Web Tools, Fabric Watch, Extended Fabrics, ISL Trunking, DPS, QoS, Advanced Performance Monitoring, Adaptive Networking Services with QoS |
| Temperature | Operating: 0°C to 40°C (32°F to 104°F) Non-operating: -25° C to 70°C (-13°F to 158°F) |
| Relative Humidity | Operating: 10% to 85% non-condensing Non-operating and storage (noncondensing): 10% to 90% non-condensing |
| Altitude | Up to 3,000 meters (9,842 feet) |
| Shock | Operating: 20 G, 6 ms, half-sine Non-operating: Half-sine, 33 G 11 ms, 3/eg Axis |
| Heat dissipation | 48 ports at 338 BTU/hr |
FAQ
Q1. What Brocade optical transceivber can be used on this EMC DS-6510B switch?
A1: 57-1000117-01 57-0000080-01 57-1000114-01 57-1000115-01 57-0000088-01 etc optical modules can be used;
Q2. How does your company do regarding quality control?
A2: All our Brcoade switch were from formal channels, and we only sell original type products for the past 16 years;
Q3. What series of DELL EMC 16G storgae network switch can you provide?
A3: We can offer DELL EMC DS-6505B DS-6510B DS-6520B switches according to your capacity demand and budget;
