Product Details:
|
| Generation: | 6 | Fibre Channel Ports: | 48 Fibre Channel SFP+ Ports And 4 QSFP Port |
|---|---|---|---|
| Aggregate Bandwidth: | 2Tb/s | Performance: | 32Gb/s SFPs Can Operate At 32, 16 Or 8Gb/s |
| AC Input: | 90 V To 264 V ~3.5A | Power Supply: | Switch Chassis Includes Dual, Hot-swappable Power Supplies With Integrated Cooling System |
| Weight: | 28kg | ||
| High Light: | DS6620B Fiber Optic Switch 24 Port,Dell Connectrix DS6620B Fiber Optic Switch,32Gb/S Enterprise Network Switch |
||

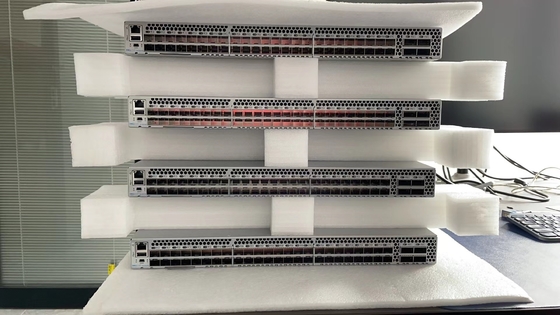

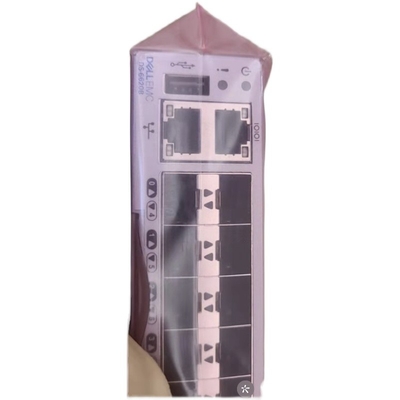

Dell EMC Connectrix DS-6620B Switch 24 ports 32 Gb/s Enterprise switch
EMC Connectrix 6600 series Switch w/ Up to 64 ports. 24-port base DS-6620B
Product Description:
DS-6620B is designed to support the SAN requirements of medium-to large sized workgroups as well as that of large enterprises, the Connectrix DS-6620B offers forty-eight SFP+ ports and four QSFP ports in a 1U form factor. Two base models are available which have 24 active 32Gb/s or 16Gb/s ports, populated with 32Gb or 16Gb/s shortwave SFPs. QSFP ports can be used to form dense high performance ISLs with other 32Gb/s switches or directors. QSFPs can also be configured to add up to 16 additional ports. With its speed and port density the DS-6620B can be deployed in any Fibre Channel Storage Area Network (SAN) to enable very dense fabrics in a relatively small package.
| Main features | Systems Architecture |
| AC Power consumption |
DS-6620B and DS-6620B-V2 - 206 WATTS with all 64 ports populated
|
| Scalability |
from eight to 128 ports
|
|
Operating environment
|
Temperature: 0°C to 40°C/32°F to 104°F
Humidity: 10% to 85% (non-condensing)
|
| Management access |
10/100/1000 Mb/s Ethernet (RJ-45), In-band over Fibre Channel, Serial port (RJ-45), and one USB port
|
| ISL Trunking |
Enterprise Package - includes Fabric Vision, Extended Fabric and ISL Trunking
|
| USB | One USB port for system log file downloads or firmware upgrades |
| Vibration | Operating: 0.5g sine, 0.4 grms random, 5 Hz to 500 Hz
Non-operating: 2.0g sine, 1.1 grms random, 5 Hz to 500 Hz
|
|
Enclosure
|
There are two air flow options: front-to-rear (FTR) and rear-to-front (RTF)
|
| Port types | DS-6620B and DS-6620B-V2 - D_Port (ClearLink Diagnostic Port), E_Port, EX_Port, F_Port, AE_Port;optional port-type control Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port |
| Hot swappable components |
DS-6620B and DS-6620B-V2 – Dual power supplies with three embedded cooling fan FRUs, SFPs and QSFP optics. The fans are connected to the power supplies and are not themselves replaceable
|
|
Security
|
AES-GCM-256 encryption on ISLs; DH-CHAP (between switches and end devices), FCAP switch authentication; HTTPS, IPsec, IP filtering, LDAPwith IPv6, OpenLDAR, Port Binding, RADIUS, TACACS+, user-defined Role-based Access Control (RBAC), Secure Copy (SCP), Secure RPC, Secure Syslog, SSH v2,SSL, Switch Binding, Trusted Switch
|
|
Dimension and weight
|
Height x Width x Depth: 1.73x17.32x14.0 inches
(43.9mmx440mmx355.6mm), 1RU
Weight with 2 power supplies and no transceivers: 17lbs (7.73kg)
|
