Product Details:
|
| Generation: | 6 | Fibre Channel Ports: | 96 Standard SFP 32Gb/s Capable Ports And 8 QSFP Ports |
|---|---|---|---|
| Aggregate Bandwidth: | 4Tb/s | Performance: | 32Gb/s SFPs Can Operate At 32, 16 Or 8Gb/s |
| AC Input: | 100V To 240V Nominal, 90V To 264V Range. Maximum Input Current: 12A. | Power Supply: | Two Power Supply FRUs With Integrated Power Module, Voltage Range Of 90V To 264V AC. 80 Plus Platinum. |
| Weight: | 22kg | ||
| High Light: | Brocade SAN Switch hD-G630-96-32G-R,96 Ports Brocade SAN Switch,2U Connectivity brocade g630 switch |
||

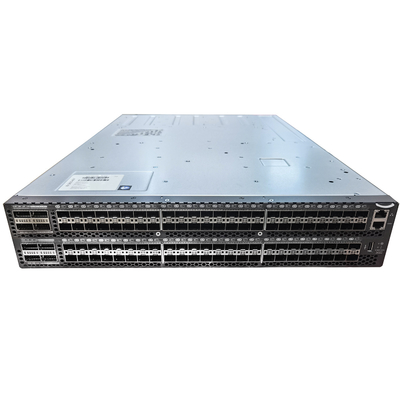

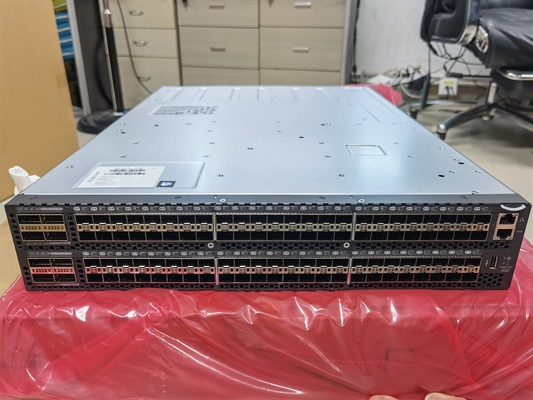

Hitachi Brocade HD-G630-96-32G-R 96 Ports 2U Connectivity SAN Switch
Product Description:
| Main features | Systems Architecture |
| AC Power consumption |
Maximum 942W with all 128 ports operating at 32G (96 ports populated with 32G SWL optics and 8 QSFP ports populated with 4×32G SWL optics).
Maximum of 495W for empty chassis with no optics in idle configuration |
| Scalability |
Full-fabric architecture with a maximum of 239 switches
|
|
Operating environment
|
Temperature: 0°C to 40°C/32°F to 104°F
Humidity: 10% to 85% (non-condensing)
|
| Management access |
10/100/1000 Mb/s Ethernet (RJ-45), In-band over Fibre Channel, Serial port (RJ-45), and one USB port
|
| ISL Trunking |
Enterprise Package - includes Fabric Vision, Extended Fabric and ISL Trunking
|
| USB | One USB port for system log file downloads or firmware upgrades |
| Vibration | Operating: 0.5g sine, 0.4 grms random, 5 Hz to 500 Hz
Non-operating: 2.0g sine, 1.1 grms random, 5 Hz to 500 Hz
|
|
Enclosure
|
Front-to-back airflow; non-port-side exhaust; port-side intake; 2U
Back-to-front airflow; non-port-side intake; port-side exhaust; 2U
|
| Port types |
D_Port (ClearLink Diagnostic Port), E_Port, EX_Port, F_Port, AE_Port, optional port-type control
|
|
Media types
|
32G FC SFP+ LC connector: SWL, LWL, ELWL
16G FC SFP+ LC connector: SWL, LWL, ELWL
10G FC SFP+ LC connector: SWL, LWL
4x32G FC QSFP+ MPO connector: SWL
4x32G FC QSFP+ SMF LC connector: 2 km (fixed at 4x32G only)
4x16G FC QSFP+ MPO connector: SWL
|
|
Security
|
DH-CHAP (between switches and end devices), FCAP switch authentication; HTTPS, IP filtering, LDAP with IPv6, OpenLDAP, Port Binding, RADIUS, TACACS+, user-defined Role-Based Access Control (RBAC), Secure Boot, Secure Copy (SCP), Secure Syslog, SFTP, SSH v2, SSL, Switch Binding, Trusted Switch. The Brocade G630 Switch provides up to 12 in-flight encryption and compression ports.
|
|
Size
|
Width: 440.00 mm (17.32 in.)
Height: 86.70 mm (3.41 in.)
Depth: 609.60 mm (24.00 in.)
|
|
Heat dissipation
|
128 ports at 3512 BTU/hr
|
