Product Details:
|
| Generation: | 6 | Fibre Channel Ports: | 8-, 16-, And 24-port Configurations |
|---|---|---|---|
| Aggregate Bandwidth: | 768Gb/s | Performance: | Auto-sensing Of 4, 8, 16, And 32G Port Speeds |
| AC Input: | 90 V To 264 V ~3.5 A | Data Traffic Types: | Fabric Switches Supporting Unicast |
| Weight: | 7.5kg | ||
| High Light: | BR-G610-24-16G-R Fibre Channel Switch,Brocade Fibre Channel Switch 16Gbps 1U,24 Ports 16gb fibre channel switch |
||

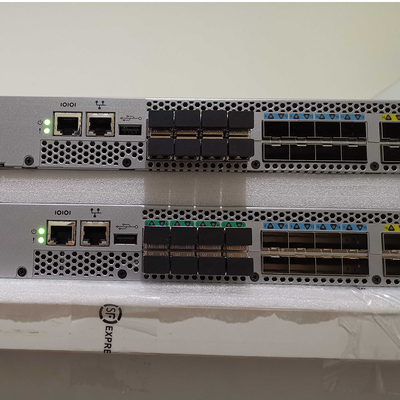

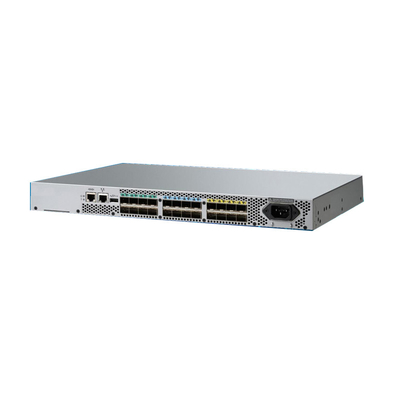

Brocade BR-G610-24-16G-R Switch 24 Fiber Channel Ports Expansion Slots Manageable 1U
Brocade G610 24 Port 16Gbps SFP AC Ethernet Switch
Product Description:The Brocade G610 offers small to midsized data centers affordable access to industry-leading Gen 6 Fibre Channel technology. Organizations gain the best of both worlds: high-performance access to industry-leading storage technology, and the ability to
| Main features | Systems Architecture |
| Power consumption |
76.52W with all 24 ports populated with 32G SWL optics.
55.83W for idle configuration (all optics loaded but not initialized).
|
| Scalability | Full-fabric architecture with a maximum of 239 switches. |
| Certified maximum | 6000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required. |
| Management access | 10/100/1000 Mb/s Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45) and one USB port. |
| ISL Trunking |
Frame-based trunking with up to eight 32G SFP+ ports per ISL trunk; up to 256Gb/s per ISL trunk.
Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS fabrics.
|
| USB | One USB port for system log file downloads or firmware upgrades |
| Vibration |
Operating: 0.5g sine, 0.4 grms random, 5 Hz to 500 Hz
Nonoperating: 2.0g sine, 1.1 grms random, 5 Hz to 500 Hz
|
| Power supply | Base switch includes a single, fixed power supply with four integrated system cooling fans. |
