SFP28 DWDM Transceivers 25GBASE CPRI  C Band 40KM SMF Dual LC DOM for 5G IoT Access

5G network accelerates artificial intelligence (AI) application in the Internet of things (IoT) area such as autonomous vehicles, delivery drones, VR/AR, HD Streaming, smart factories, smart city, etc. AI learning, computing and operation become more synchronous and agile with ultra-low latency, ultra-reliable, high bandwidth, and high-speed connection.

Mainstream IoT technologies are home or workplace-based applications interconnected by smart devices. These applications feature short to medium range linkage, ultra-low latency, and diversified service. To access more smart applications, 5G IoT ISP is being urged on the bandwidth. There exist three routes to increase bandwidth by using SDM, TDM, and WDM. SDM is space division multiplexing technology, using more fibers for distribution with MIMO. However, fiber cores and regional fiber resources are limited and demand high CPAX and OPEX. TDM is time-division multiplexing (TDM) technology, using synchronous transmission. TDM offers extra bandwidth by data packaging over existing fiber resources but features high latency and is not suitable for IoT access. Endly, service providers pay more attention to wavelength division multiplexing (WDM) technology taking advantage of high bandwidth, fewer fiber demands, and low latency.

25GBASE DWDM is a common scenario of WDM technology in 5G IoT, using 40 individual light waves of C-Band ranging between C21 - C60 and offering a total capacity of near one Tbps. 25GBASE DWDM allows IoT service providers to access up to 40 individual applications on-site, each of 25GBASE bandwidth, with existing fiber resources.

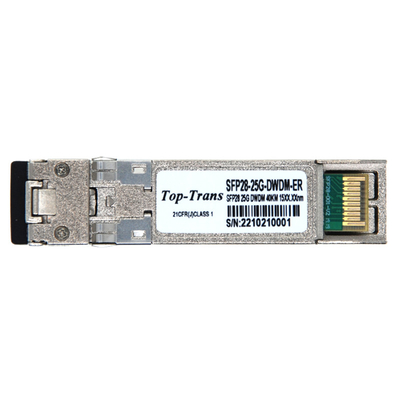

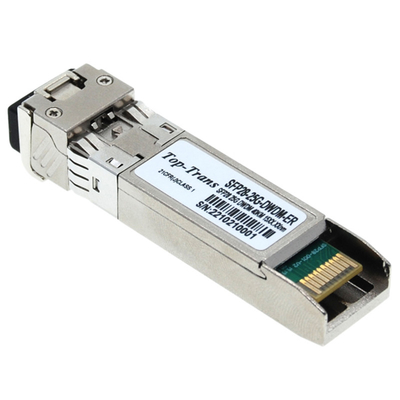

Top-Trans TDM-SFP28-ER-XX transceivers are designed for 5G IoT, using C-Band wavelength ranging between C21-C60 Channels to create the fiber link up to 40KM via dual SMF. It is fully compliant with 25G SFP28 DWDM MSA and CPRI/eCPRI standards, using DWDM DFB and APD Receivers. It supports the protocol of 25GBASE and CRRI Option 10 (24.33 Gbps).

Key Features

• Hot-pluggable SFP28 form factor

• Supports 25Gbps data rate

• Maximum link length 40KM over OS2 Single Mode Fiber

• DWDM DFB lasers and APD photo-detector

• Internal CDR on both Transmitter and Receiver channel

• Duplex LC receptacle

• Single 3.3V power supply

• Power dissipation < 1W

• Digital diagnostics functions are available via the I2C interface

• RoHS-6 compliant

• Industrial operation temperature range: -40°C to 85°C

Protocol

• 25GBASE

• CPRI Option 10​​

Parameters

​Compatible Platform

• Cisco, Mellanox, Broadcom, Dell-EMC, Juniper, Fortinet, Extreme Network, Avago, Finisar, Nokia, Ericsson

 FAQ


Do your SFP works on the Cisco platform?

Yes, we always test our SFP compatibility with Cisco Nexus, Catalyst, Meraki, etc Series Switches

Can I use your SFP at the speed of 10GBASE?

Yes, we can provide the dual-rate version of 10/25GBASE

Can you provide other types of sfp28 modules?

Yes, we can provide the SFP28 module for dual fiber, single fiber(BIDI), and WDM (CWDM, DWDM, MWDM) systems.

Who is Topstar?​

Topstar is an integrated ICT solution provider for SFP transceivers, SAN FC Switches, NIC, and HBA.​

We are based in Shenzhen, with a Joint OEM factory to produce 3rd Party SFP transceivers

and the well-established distribution chain on Finisar, Brocade, Cisco, Innolight, AOI, Source, Broadcom, Dell-EMC
