Avago AFBR-725SMZ Compatible Transceivers 10G 25G Dual Rate SFP28 850NM 100M DMI

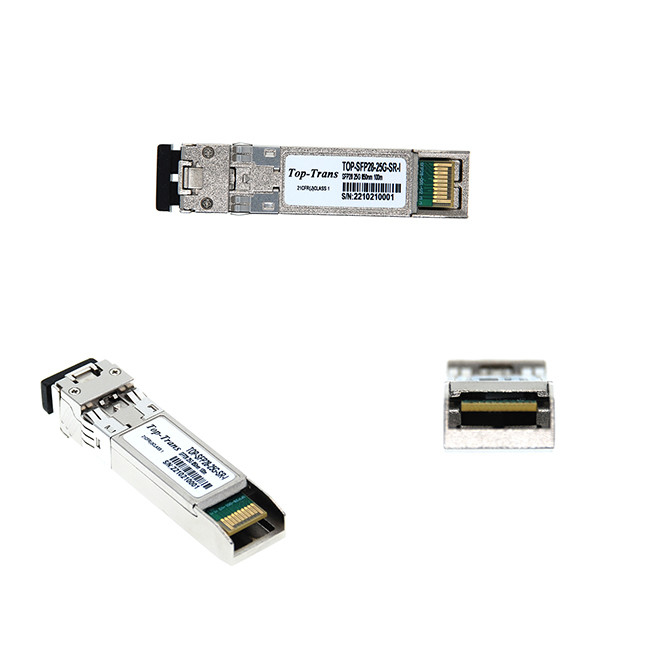

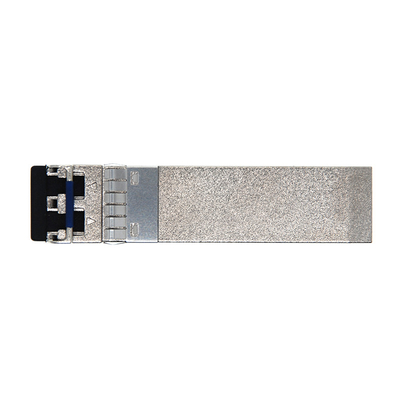

Top-trans SFP28-10/25G-CSR is an Avago AFBR-725SMZ compatible transceiver, with verified interoperation in the Broadcom 10GbE and 25GbE PCIe adapters such as 57404, 57414 and 57454 etc, used for Dell-EMC, ThinkSystem etc server platform.

Parameters


Top-trans SFP28-10/25G-CSR is a dual-rate 10GbE and 25GbE Optical Transceiver with SFP28 Form and 850NM VSCEL lasers and PIN photo-detector for the short-range LAN architecture. It can enable the data link of 10Gb/25GbE over 100M OM4 Multimode Fiber via an LC duplex connector. It is fully compliant with the industrial standard of IEEE 802.3by, SFP28 MSA, SFF-8472, SFF-8432, CPRI, and eCPRI.

Key Features

• Hot-pluggable SFP28 form factor

• Supports 10G/25.78Gbps data rate

• Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF

• 850nm VCSEL laser and PIN photo-detector

• Internal CDR on both Transmitter and Receiver channel

• Duplex LC receptacle

• Single 3.3V power supply

• Power dissipation < 1W

• Digital diagnostics functions are available via the I2C interface

• RoHS-6 compliant

• Commercial case temperature range: 0°C to 70°C

​

Protocol

• 10/25GBASE-SR Ethernet

• 25G CPRI RAN

• 32G Fiber Channel

• Infiniband EDR

​

​Compatible

• Cisco SFP-10G-SR-S, SFP-25G-SR-S, SFP-10/25G-CSR-S, SFP-25G-SL

• Mellanox MFM1T02A-SR, MMA2P00-AS,

• Dell EMC 407-BCBK, 407-BBYP, 407-BBOU

• Avago AFBR-725SMZ, AFBR-57G5AMZ, AFBR-734ASMZ, AFBR-735JAMZ

​

Fiber optic network architecture

FAQ

• FAQ



Do your SFP works on the Cisco platform?

Yes, we always test our SFP compatibility with Cisco Nexus, Catalyst, Meraki etc Series Switches

Can I use your SFP at the speed of 10GBASE?

Yes, we can provide the dual-rate version of 10/25GBASE

Can your SFP transmit a distance beyond 10km?

It depends on the link budget. We can offer 25GBASE BIDI SFP for 10KM, 20KM and 40KM applications.

Can you provide other types of sfp28 modules?

We can provide the SFP28 module for dual fibre, single fibre (BIDI) and WDM (CWDM, DWDM, MWDM) systems.

Who is Topstar?​

Topstar is an integrated ICT solution provider for SFP transceivers, SAN FC Switches, NIC, and HBA.​

We are based in Shenzhen, with a Joint OEM factory to produce 3rd Party SFP transceivers.

and the well-established distribution chain on Finisar, Brocade, Cisco, Innolight, AOI, Source, Broadcom, and Dell-EMC.
