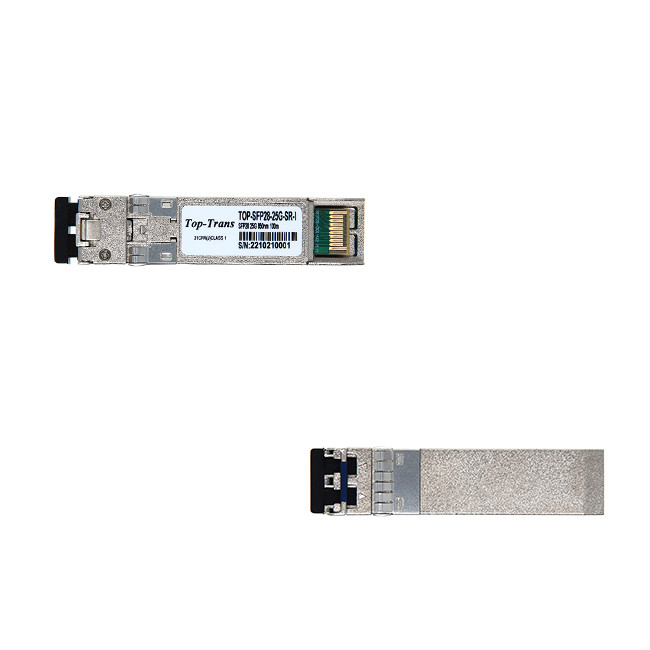

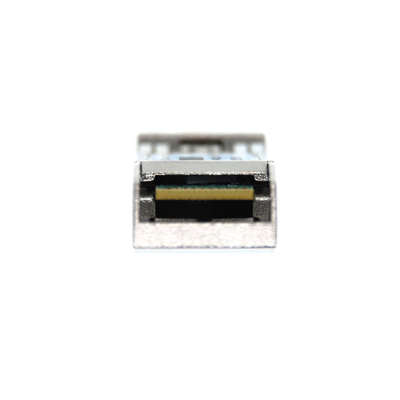

Dell 407-BCBK Compatible Optical Module SFP28 SR 10/25GbE for PowerEdge Switches

Parameters


Top-trans SFP28-10/25G-CSR is an SFP28 form short distance optical module used for 10Gigabit and 25Gigabit Ethernet. This module uses the 850nm VSCEL lasers and PIN photo-detector for transmission over 100M OM4 Multimode Fiber via an LC duplex connector. It can interoperate with both 10G and 25G ethernet server adapters, switches and existing 10G cabling systems for a smooth transition into next-generation 25G LAN. It is fully compliant with the industrial standard of IEEE 802.3by, SFP28 MSA, SFF-8472, SFF-8432, CPRI, and eCPRI.

Key Features

• Hot-pluggable SFP28 form factor

• Supports 10G/25.78Gbps data rate

• Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF

• 850nm VCSEL laser and PIN photo-detector

• Internal CDR on both Transmitter and Receiver channel

• Duplex LC receptacle

• Single 3.3V power supply

• Power dissipation < 1W

• Digital diagnostics functions are available via the I2C interface

• RoHS-6 compliant

• Commercial case temperature range: 0°C to 70°C

​

Protocol

• 10/25GBASE-SR Ethernet

• 25G CPRI RAN

• 32G Fiber Channel

• Infiniband EDR

​

Application

•  Enterprise LAN​

​

​Interoperate 10G/25G Servers, Adapter, Switches and 10G/25G/40G/100G Cabling system to Enterprise

10/25GBASE-SR LAN

• Data Center network​

​

​In rack or across rack short distance interconnect between server, TOR/MOR/EOR Switches and Leaf Switches

for high bandwidth access

​​

​Compatible

• Cisco SFP-10G-SR-S, SFP-25G-SR-S, SFP-10/25G-CSR-S, SFP-25G-SL

• Mellanox MFM1T02A-SR, MMA2P00-AS,

• Dell EMC 407-BCBK, 407-BBYP, 407-BBOU

• Avago AFBR-725SMZ, AFBR-57G5AMZ, AFBR-734ASMZ, AFBR-735JAMZ

​

Fiber optic network architecture

FAQ

• Do your SFP have quantitytity warranty?

​

​Yes, all transceivers provide three years quality warranty. For any hardware defects,

our after-sale team will take the issues seriously and figure out the solution for clients

to return, replace, repair and refund the broken items. Topstar marketed SFP transceiver since 2006

and has been serving its clients for over 15 years, without substantial quality after-sale issues.

• What delivery method do you provide?

​

For Trial orders <500pcs, we will send it by Express through DHL, FedEx, UPS, Aramex etc Logistic Service

For Large orders, we will choose air shipment, land shipment and sea freight according to freight and cost

• How can I order your SFP?

​

Please send an inquiry through our website and leave your valid contact

Our Sales will touch you shortly and they will help handle your order

We support the payment via T/T, West Union, Paypal

​​

• What else SFP can you provide?

​

Topstar is an integrated sf transceiver solution provider, with a reliable supply chain

to distribute brand original cisco, Finisar, brocade, innolight, Dell-EMC, Avago, source etc

transceiver and joint factory to do OEM for 10G to 400G bandwidth Optical Transceiver.

• What brand compatibilities have your SFP been verified?​

​

Nokia-Alcatel, Ericsson, Cisco, Dell-EMC, Juniper, Arista, Extreme Network, Fortinet, 3COM, BDCOM, ZTE, DCN
