Product Details:
|
| Generation: | 5 | Fibre Channel Ports: | Switch Mode (default): 48, 72, 96 Port Configurations (12-port Increment Through Ports On Demand [PoD] License) |
|---|---|---|---|
| Aggregate Bandwidth: | 1,536 Gbps: 96 Ports × 16 Gbps Data Rate | Performance: | Auto-sensing Of 2 4 8 And 16Gbps Port Speeds |
| AC Input: | 85 V To 264 V ~5 A To 2.5 A | Data Traffic Types: | Fabric Switches Supporting Unicast |
| Weight: | 25kg | ||
| High Light: | 6520 Gen 5 Brocade SAN Switch,Brocade SAN Switch BR-6520-48-8G-R,48 Port SFP+ brocade 6520 switch |
||

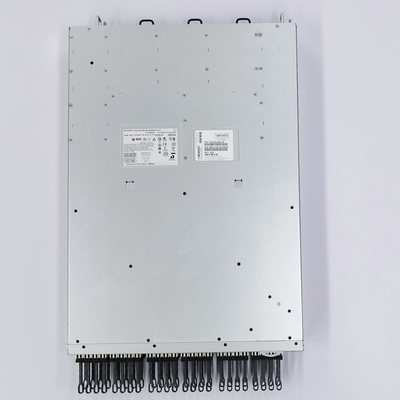

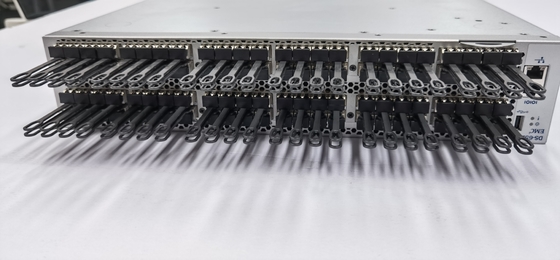

Brocade BR-6520-48-8G-R 6520 48-Port Active Fiber Channel SFP+ Switch
Brocade 6520 Gen 5 Fibre Channel 16 Gbps Network Switch
The Brocade 6520 Switch meets the demands of growing, dynamic workloads and private cloud storage environments by delivering market-leading Gen 5 Fibre Channel technology and capabilities.
The Brocade 6520 is a high-density, purpose-built, foundational building block for large and growing Storage Area Network (SAN) infrastructures. It provides industry-leading scalability, reliability,and 16 Gbps performance in a flexible, easy-to-deploy enterprise-class switch, enabling greater data center consolidation,operational efficiency, and business continuity. In addition to increased throughput, it helps improve bandwidth utilization, security, and network visibility and management through in-flight data compression and encryption and advanced diagnostics. It’s an ideal switch for bandwidth-intensive workloads, evolving virtualized data centers, and private cloud architectures
| Main features | Systems Architecture |
| Power consumption |
464 W with all 96 ports populated with 16 Gbps SWL optics 183 W for empty chassis with no optics
|
| Scalability | Full-fabric architecture with a maximum of 239 switches |
| Certified maximum | 6000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required |
| Management access | 10/100/1000 Mbps Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ45), and one USB port |
| ISL Trunking | Frame-based Trunking with up to eight 16 Gbps ports per ISL trunk; up to 128 Gbps per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS. |
| USB | One USB port for system log file downloads or firmware upgrades |
| Vibration | Operating: 0.5 g sine, 0.4 grms random, 5 Hz to 500 Hz Non-operating: 2.0 g sine, 1.1 grms random, 5 Hz to 500 Hz |
| Power supply |
Dual, hot-swappable redundant power supplies with integrated system cooling fans
|
HIGHLIGHTS
FAQ
Q1. What Brocade optical transceiver can be used on this Brocade 6520 switch?
A1: 57-1000027-02 57-0000080-01 XBR-000174 etc Brocade 4G 8G 16G whole series optical modules can be used;
Q2. How does your company do regarding quality control?
A2: All our Brcoade switch were from formal channels, and we only sell original type products for the past 16 years;
Q3. What else Brocade SAN Switch can you offer?
A3: We can offer BR-6520-48-8G-F BR-6520-48-8G-R BR-6520-48-16G-F BR-6520-48-16G-R BR-6520-96-16G-R, welcome to consult!
