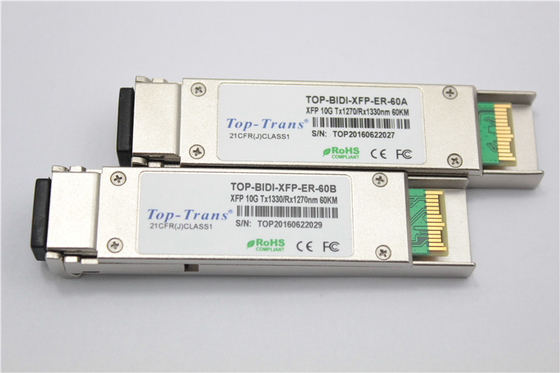

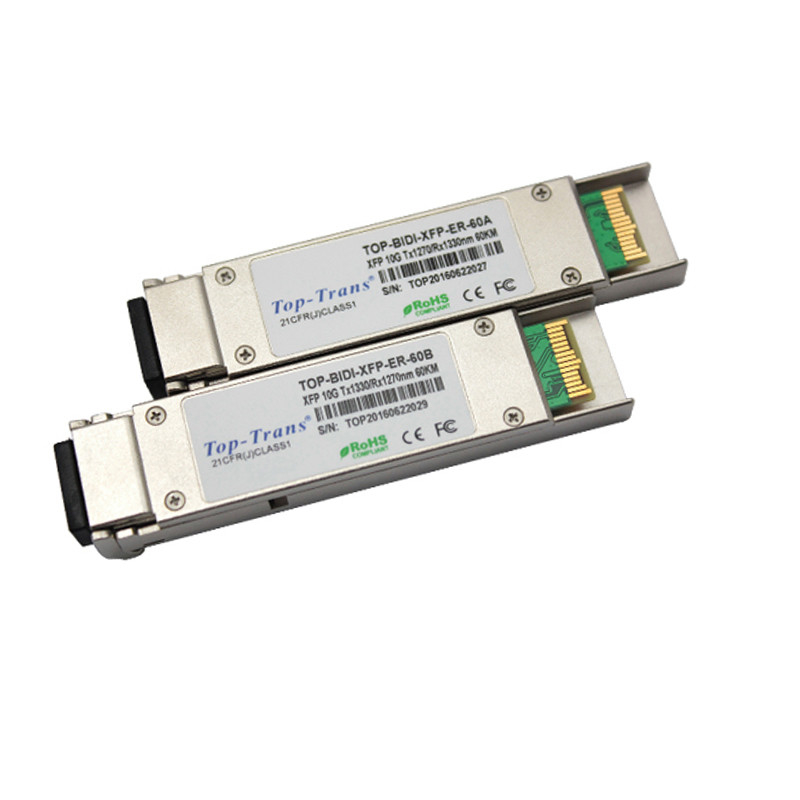

60km BIDI 10G SMF SFP Module 1270nm R1330nm Network Solution



1270nm/R1330nm Network Solution 60km Optical Transceiver SFP SMF Module





60Km Transceiver Network Solution Products Fetures:





● Hot pluggable



● Support 9.95Gb/sto11.1Gb/s bit rates



● Below<1.8w power consumption



● XFPMSA package with LC connector



● Digital Diagnostic Monitor Interface



● Very low EMI and excellent ESD protection



● Un-cooled 1270nmDFB laser and APD receiver



● +3.3V single power supply



● operating temperature range0°Cto70°C



● No reference clock requirement





APPLICATIONS



●10GBASE-BX10.3125Gb/s Ethernet



●10GBASE-BX9.953Gb/s Ethernet



●SONETOC-192 &SDH STM I-64.1





STANDARD



● XFPMSA Compliant



● SFF-8472reversion9.5compliant



● IEEE802.3-2005compliant



● TelcordiaGR-468-COREcompliant



● FCC47CFRPart15,Class B compliant



● FDA21CFR1040.10and1040.11,class1com-pliant



● RoHS compliant











Fibre type	SMF
Standard Temperature	0°Cto+70°C
Power supply	4V
Distance	60Km
Form-Factor	SFP
Wavelength	1270/1310 nm
Diagnostic	Yes
Optical Extinction Ratio	3.5dB



Description





The XFP modules implement the 2-wire serial communication protocol as defined in the XFPMSA.



The serial ID information of the XFP modules and Digital Diagnostic Monitor parameters can be accessed through the I2C



interface at address A0handA2h. The memory is mapped in Table1. Detailed ID information(A0h) is listed in Ta-ble2. And the



DDM specification(A2h)is described in Table3. For more details of the memory map and byte definitions, please refer to the



SFF-8472(Rev9.3,Aug.2002), “Digital Diagnostic Monitoring Interface for Optical Transceivers”.



The DDM parameters have been internally calibrated.
