Product Details:
|
Power Dissipation: | <1.5W | Data Transfer Rate: | 10G |
---|---|---|---|
Distance: | 20Km | DDM: | Yes |
Wavelength: | 1270nm/1330nm | Supply Power: | 3.3V |
Temperature: | 0ºC To 70ºC | Extinction Ratio: | 3.5 DB |
Highlight: | RoHS 20Km 10G SFP Module,1270nm 1330nm 10GBASE-BX,10GBASE-BX XFP MSA |

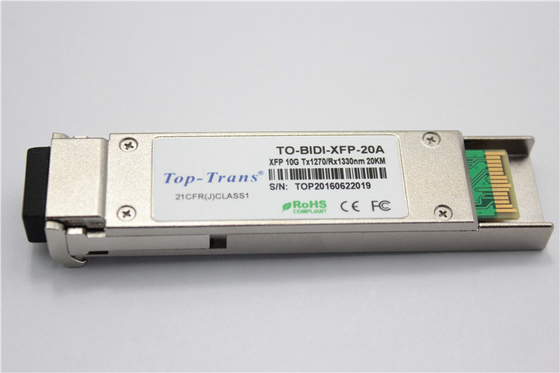

20Km 10G 1270nm 1330nm Optical Transceiver RoHS Compliant Power Consumption Module
Optical Module TOP-BIDI-XFP-LH-20A Specification
Rate | 10Gb/s |
Wavelength | 1270nm/1310 nm |
Temperature | 0 to 70°C |
Distance | 20Km |
Form Factor | XFP |
Application | 10GBASE-BX10.3125Gb/s Ethernet |
Extinction Ratio | 3.5dB |
Certificate | ROHS |
PRODUCT FEATURES
● Hot pluggable
● Support 9.95Gb/sto11.1Gb/s bit rates
● Below<1.5w power consumption
● XFPMSA package with LC connector
● Digital Diagnostic Monitor Interface
● Very low EMI and excellent ESD protection
● Un-cooled 1270nm DFB laser
● +3.3V single power supply
● operating temperature range0°Cto70°C
● No reference clock requirement
APPLICATIONS
●10GBASE-BX10.3125Gb/s Ethernet
●10GBASE-BX9.953Gb/s Ethernet
●SONETOC-192 &SDHSTM I-64.1
STANDARD
● XFPMSACompliant
● SFF-8472reversion9.5compliant
● IEEE802.3-2005compliant
● TelcordiaGR-468-COREcompliant
● FCC47CFRPart15,ClassBcompliant
● FDA21CFR1040.10and1040.11,class1com-pliant
● RoHS compliant
PRODUCT DESCRIPTIONS
XFP 10G 10KM 1270 transceivers are designed for 10G Ethernet 10GBASE-LR/LWper802.3ae and 10GSOIOC-192/SDHSTM-64,and it can
support data-rate from 9.953Gb/sto11.1Gb/s. Digital diagnostics are avail-able via I2C interface as specified in the XFPMSA. The transceiver
designs are optimized for high per-formance and cost effective to supply customers the best solutions for data-comand telecom applications.
