Product Details:
|
Data Rate: | 10G | Temperture: | 0°C To 70°C |
---|---|---|---|
Connector: | LC | APPLICATIONS: | 10GBASE-SR/SW 10G Ethernet |
Power Supply: | 3.3V | Distance: | 10 Km |
Media: | MMF | Wavelength: | 850 Nm |
Highlight: | 850nm 300m 10G SFP Module,FTLX8571D3BCV 10G SFP Module,finisar 850nm sfp FTLX8571D3BCV |

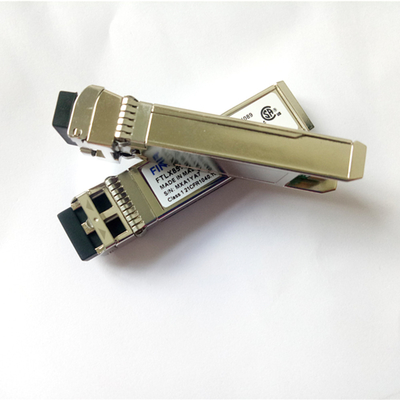

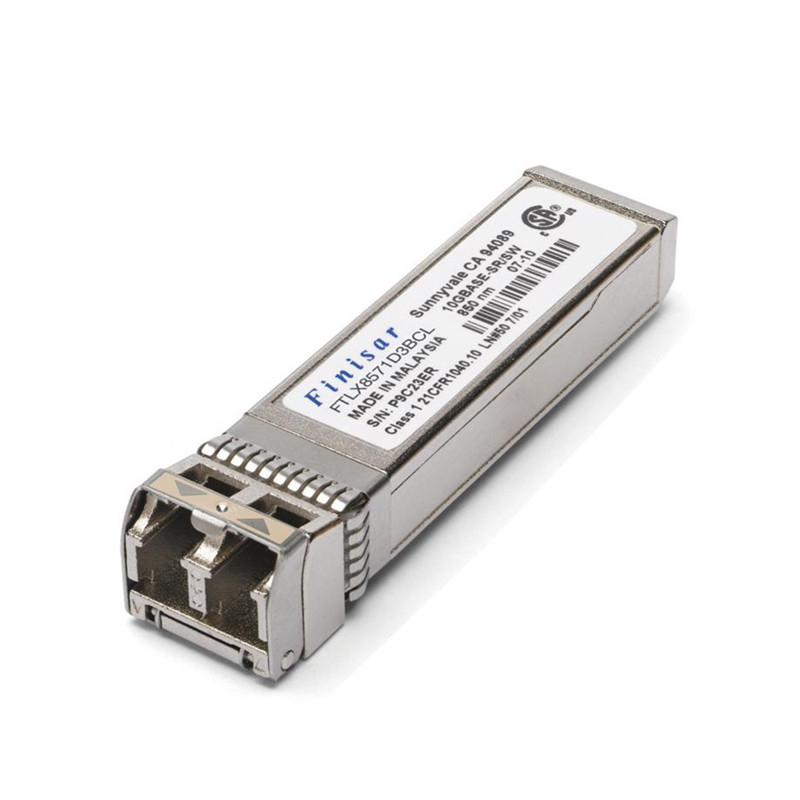

10G FTLX8571D3BCV Optical Transceiver 850nm 300m Fiber Module
FTLX8571D3BCV Optical Module Fetures:
Hot-pluggable SFP+ footprint
• Supports rate selectable 1.25 Gb/s or 9.95 to 10.3 Gb/s bit rates
• Power dissipation < 1W
• RoHS-6 compliant (lead-free)
• Commercial temperature range 0°C to 70°C
• Single 3.3Vpower supply • Maximum link length of 300m on 2000 MHZ-km MMF
• Uncooled 850nm VCSEL laser
• Receiver limiting electrical interface
• Duplex LC connector • Built-in digital diagnostic functions .
APPLICATIONS of of FTLX8571D3BCV
• 1000BASE-SX 1G Ethernet
• 10GBASE-SR/SW 10G Ethernet
FTLX8571D3BCV 850nm 300m Fiber Module Specification
Fiber Type | MMF |
Conector |
LC |
Operating Temperature |
0°C to 70°C |
Distance |
10Km |
Rate |
10G |
wavelength |
850 nm |
Application |
10GBASE-SR/SW 10G Ethernet |
Optical Extinction Ratio | 9dB |
Finisar’s FTLX8571D3BCV 1G/10G Dual-Rate SFP+ transceivers are designed for use in 1-Gigabit and 10-Gigabit Ethernet
links over multimode fiber. They are compliant with SFF-84311 , IEEE 802.3-2005 10GBASE-SR/SW2 and 1000BASE-SX3 .
Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF84724 . The FTLX8571D3BCV is a
“limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC
manufacturer’s recommended settings for interoperability with an SFP+ limiting module. This product is for applications
specifically designed for 10G SFP+ ports and 1G/10G SFP+ ports and not native 1G SFP ports. The transceiver is RoHS
compliant and lead free per Directive 2002/95/EC5 , and Finisar Application Note AN-20386 .
