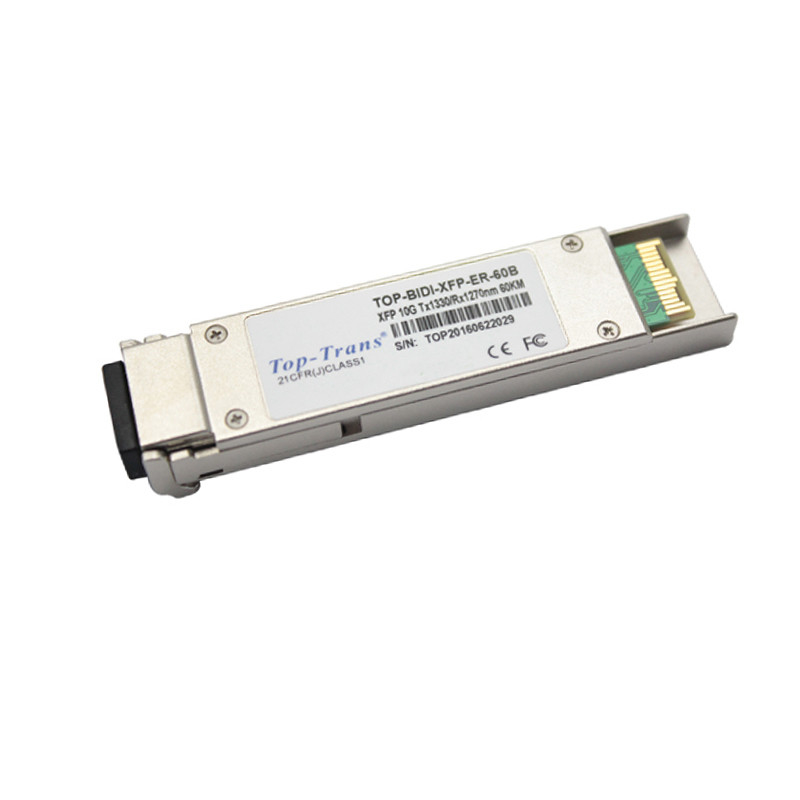

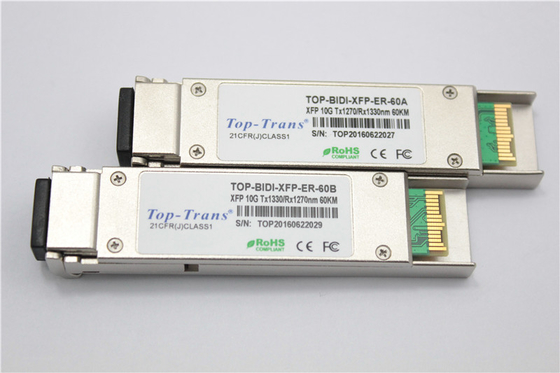

10G XFPT1270nm R1330nm 60km Optical Transceiver Power Consumption Modules







PRODUCT FEATURES



● Hot pluggable



● Support 9.95Gb/sto11.1Gb/s bit rates



● Below<1.8w power consumption



● XFPMSA package with LC connector



● Digital Diagnostic Monitor Interface



● Very low EMI and excellent ESD protection



● Un-cooled 1270nmDFB laser and APD receiver



● +3.3V single power supply



● operating temperature range 0°Cto70°C



● No reference clock requirement







Optical Module TOP-BIDI-XFP-ER+-60A Specification



Rate	10Gb/s
Wavelength	1270nm/1310 nm
Temperature	0 to 70°C
Distance	60Km
Form Factor	XFP
Application	10GBASE-BX10.3125Gb/s Ethernet
Extinction Ratio	3.5dB
Certificate	ROHS



APPLICATIONS



●10GBASE-BX10.3125Gb/s Ethernet



●10GBASE-BX9.953Gb/s Ethernet



●SONETOC-192 &SDH STM I-64.1





STANDARD



● XFPMSA Compliant



● SFF-8472reversion9.5compliant



● IEEE802.3-2005compliant



● TelcordiaGR-468-COREcompliant



● FCC47CFRPart15,Class B compliant



● FDA21CFR1040.10and1040.11,class1com-pliant



● RoHS compliant











PRODUCT DESCRIPTIONS



● XFP 10G 60KM 1270transceivers are designed for 10GEthernet



10GBASE-ZR/ZWper802.3ae and10G SOIOC-192/SDHSTM-64,and it can support



data-rate from9.953Gb/sto11.1Gb/s. Digital diagnostics are avail-able viaI2C interface as specified in the XFPMSA.



● The transceiver designs are optimized for high per-formance and cost effective to supply customers the best solutions for



data-comand telecom applications.
