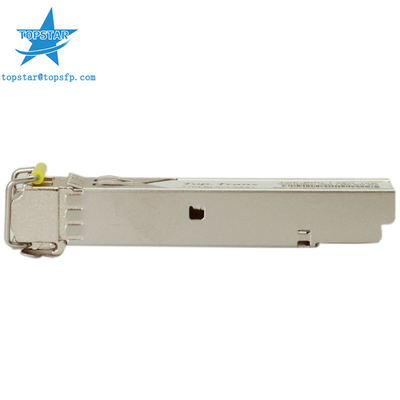

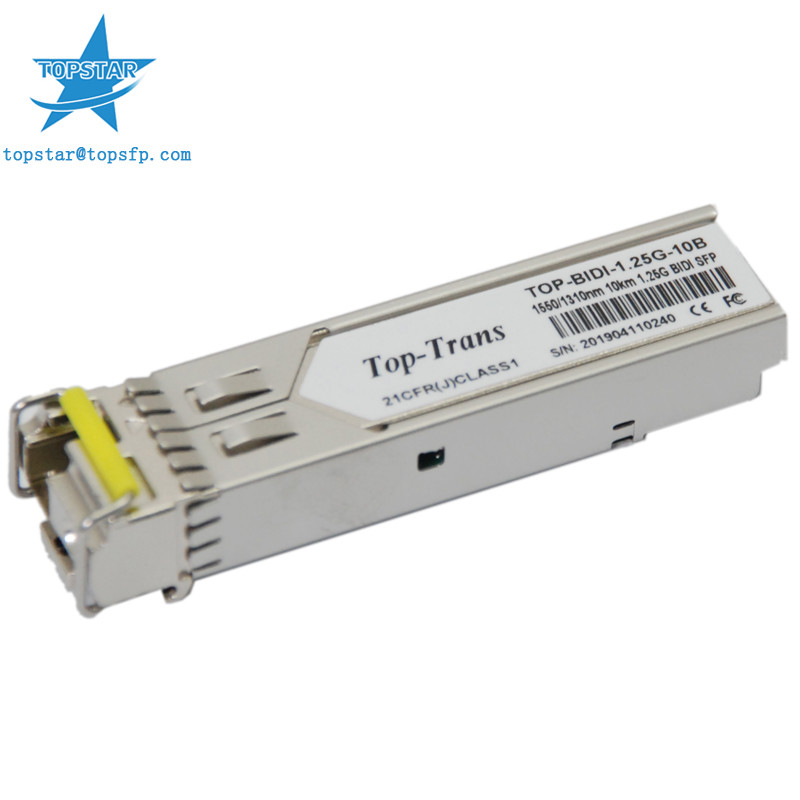

10Km 1.25 G SFP Transceiver 1550nm 1310nm MultiMode Fiber Module

1.25G Optical Transceiver 10Km 1550/1310nm Multi Mode Fiber SFP Module





  Optical Module 10Km 1550/1310nm Fetures:





Up to 1.25Gb/s data links



 FP laser transmitter for TOP-BIDI-1.25G-10AD/BD



DFB laser transmitter for TOP-BIDI-1.25G-10AD/BD



PIN photo-detector



Up to 10km on 9/125μm SMF



Hot-pluggable SFP footprint



BIDI LC/UPC type pluggable optical interface



Low power dissipation



Metal enclosure, for lower EMI



RoHS compliant and lead-free



Single +3.3V power supply



Support Digital Diagnostic Monitoring interface



Compliant with SFF-8472



Case operating temperature Commercial: 0°C to +70°C Extended: -10°C to +80°C Industrial: -40°C to +85°C







APPLICATIONS





Switch to Switch Interface



Fast Ethernet



Switched Back plane Applications



Router/Server Interface



Other Optical Links





STANDARD





 SFP+ MSA Compliant



 SFF-8472 reversion 9.5 compliant



 IEEE802.3-2005 compliant



 Telcordia GR-468-CORE compliant



 FCC 47 CFR Part 15,Class B compliant









Fiber Type	SMF
Industrial temperature	-40°C to +85°C
Power supply	3.3V
Distance	10Km
Form-Factor	SFP
Wavelength	1310/1550 nm
Certificate	CE
Optical Extinction Ratio	9dB
Extended Temperature	-10°C to +80°C







SFP 1.25G 10KM 1310&1550 optical transceivers are designed for optical interfaces for data communications with single mode



fiber (SMF).The transceiver designs are optimized for high performance and cost effective to supply customers the best



solutions for telecom applications.









SFP 1.25G 10KM 1310&1550 transceivers support the 2-wire serial communication protocol as defined in the SFP MSA. It is



very closely related to the E2PROM defined in the GBIC standard, with the same electrical specifications.



The standard SFP serial ID provides access to identification information that describes the transceiver’s capabilities, standard



interfaces, manufacturer, and other information.



Additionally, SFP 1.25G 10KM 1310&1550 transceivers provide a unique enhanced digital diagnostic monitoring interface,



which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted



optical power, received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and



warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.



The SFP MSA defines a 256-byte memory map in E2PROM that is accessible over a 2-wire serial interface at the 8bit address



1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8 bit address 1010001X (A2h), so the originally



defined serial ID memory map remains unchanged. The interface is identical to, and is thus fully backward compatible with both



the GBIC Specification and the SFP Multi Source Agreement.



The operating and diagnostics information is monitored and reported by a Digital Diagnostics Transceiver Controller (DDTC)



inside the transceiver, which is accessed through a 2-wire serial interface. When the serial protocol is activated, the serial clock



signal (SCL, Mod Def 1) is generated by the host. The positive edge clocks data into the SFP transceiver into those segments



of the E2PROM that are not write-protected. The negative edge clocks data from the SFP transceiver. The serial data signal



(SDA, Mod Def 2) is bi-directional for serial data transfer. The host uses SDA in conjunction with SCL to mark the start and end



of serial protocol activation. The memories are organized as a series of 8-bit data words that can be addressed individually or



sequentially.



Digital diagnostics for the TOP-BIDI-1.25G-10AD/BD are Internally calibrated by default.
