25G SFP28 BIDI CPRI Transceivers 1270NM 1330NM 10KM SMF for 5G Wireless Fronthaul

To initiate 5G network transition, direct fiber connection is the main solution with key features of high convenience, simpleness and ease of deployment. However, because of the increasing demand for spectrum resources, 5G fronthaul demands more base stations and excessive fiber resources for distribution. Instead of dual fiber, the single fiber scenario using bidirectional signal transmission becomes a better choice for ISP to wire AAU and DU.

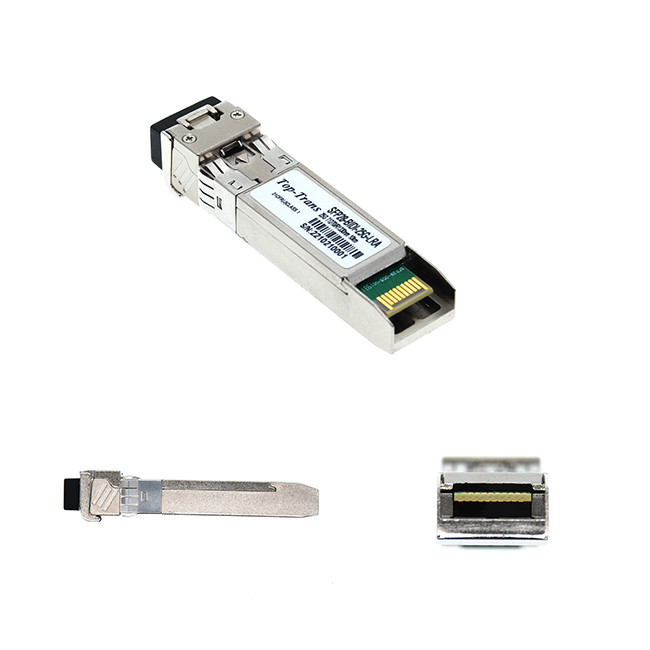

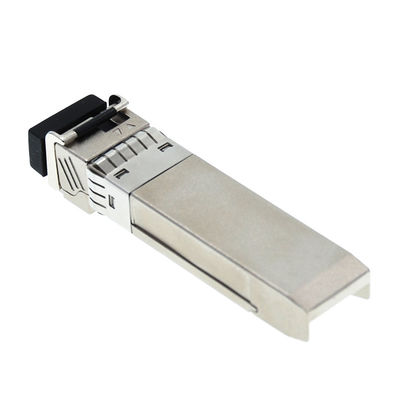

TBD-SFP28-LR27/33 is a 25G CPRI BIDI transceiver designed for the single fiber scenario. It is fully compliant with 25G SFP28 BIDI MSA and CPRI/eCPRI standards, using 1270/1330NM bidirectional DFB lasers and PIN receivers. It is ideal for the fibre link of 10KM over a simplex OS2 single-mode fibre via LC connectors. Due to bidirectional, it must work in pairs with another module or network equipment of opposite wavelengths. With build-in DDM/DOM functions, this module can monitor operation status and diagnose voltage, bias current, RX power, and TX power.

Key Features

• Hot-pluggable SFP28 form factor

• Supports 25Gbps data rate

• Maximum link length 10KM over Simplex OS2 Single Mode Fiber

• 1270/1330NM DFB BIDI + PIN

• Internal CDR on both Transmitter and Receiver channel

• Simplex LC receptacle

• Single 3.3V power supply

• Power dissipation < 1W

• Digital diagnostics functions are available via the I2C interface

• RoHS-6 compliant

• Industrial operation temperature range: -40°C to 85°C

Protocol

• 25GBASE-LR Ethernet

• ​5G CPRI

​​

Parameters

​Compatible Platform

• Cisco, Mellanox, Broadcom, Dell-EMC, Juniper, Fortinet, Extreme Network, Avago, Finisar, Nokia, Ericsson

 FAQ


Do your SFP works on the Cisco platform?

Yes, we always test our SFP compatibility with Cisco Nexus, Catalyst, Meraki etc Series Switches

Can I use your SFP at the speed of 10GBASE?

Yes, we can provide the dual-rate version of 10/25GBASE

Can your SFP transmit a distance beyond 10km?

It depends on the link budget. We can offer 25GBASE BIDI SFP for 10KM, 20KM and 40KM applications.

Can you provide other types of sfp28 modules?

We can provide the SFP28 module for dual fibre, single fibre (BIDI) and WDM (CWDM, DWDM, MWDM) systems.

Who is Topstar?​

Topstar is an integrated ICT solution provider for SFP transceivers, SAN FC Switches, NIC, and HBA.​

We are based in Shenzhen, with a Joint OEM factory to produce 3rd Party SFP transceivers.

and the well-established distribution chain on Finisar, Brocade, Cisco, Innolight, AOI, Source, Broadcom, and Dell-EMC.
