Product Details:
|
Data Rate: | 10G | Power Supply: | 3.3V |
---|---|---|---|
Diagnostic: | Yes | Media Type: | SMF |
Distance: | 80Km | Power Consumption: | 1.5W |
Connector: | LC | Application: | 10G Ethernet And Other Optical Link |
Highlight: | 1490nm 1550nm 10G SFP Module,1550nm 10G SFP Module 80Km 3.3V,80Km 3.3V SFP BIDI Transceiver |

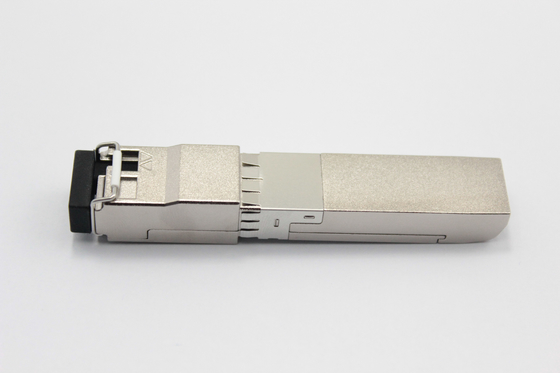

10G Optical Module 80Km 1490nm/1550nm SFP Module BIDI Transceiver
Optical Module BIDI 80Km Fetures:
This model Supports 9.95 to 11.3Gb/s bit rates,with Simplex LC Connector ,Hot pluggable SFP+ footprint,
Cooled 1490nm EML transmitter 1550nm APD receiver, Cooled 1550nm EML transmitter, 1490nm APD receiver
Applicable for 80km SMF connection, Low power consumption< 1.5W ,Power Saving ,support Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae 10GBASE-ZR,Electrical interface compliant to SFF-8431
Operating case temperature: Commerical:0 to 70 °C
APPLICATIONS
10.3125Gbps Ethernet
Other optical link
80km BIDI Specification
Fiber Type | SMF |
Lasers |
EMI |
power supply |
3.3V |
Distance |
80Km |
Form-Factor |
SFP |
wavelength |
1490/1550 nm |
Operating case temperature |
Commercial 0°C-70°C |
Optical Extinction Ratio |
9dB |
Power dissipation | < 1.5W |
Certificate | ROHS |

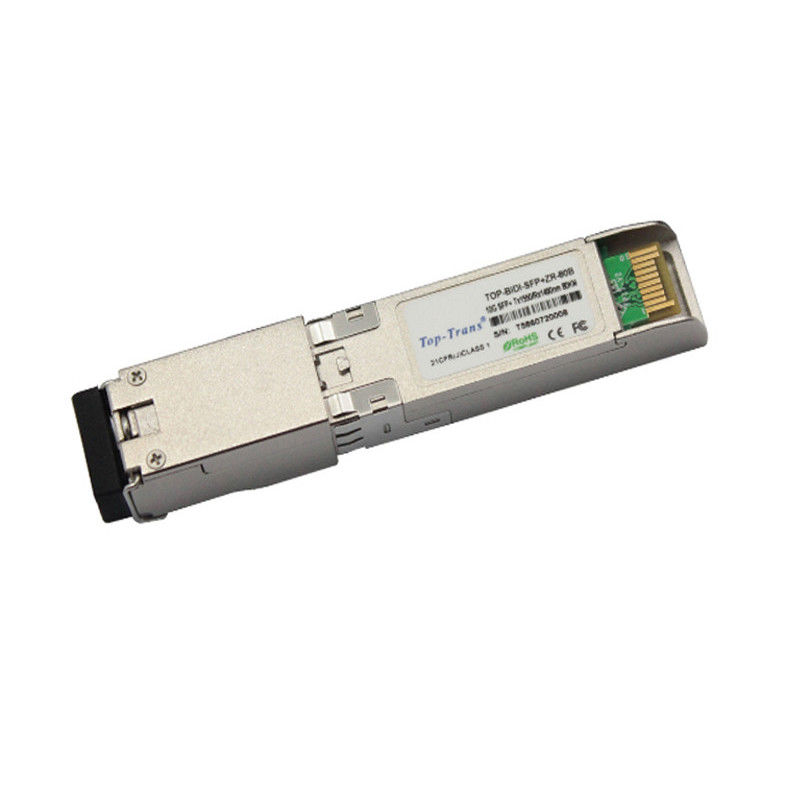

TOP-BIDI-SFP+-ZR-49/55 series single mode transceiver is small form factor pluggable module for optical data
communications such as 10G Ethernet. It is with the SFP+ 20-pin connector to allow hot plug capability. The TOP-BIDI-SFP+-
ZR-49/50 module is designed for single mode fiber and operates at a nominal wavelength of 1490nm or 1550nm; The
transmitter section uses a EML laser, which is class 1 laser compliant according to International Safety Standard IEC-60825.
The receiver section consists of a APD photodiode integrated with a TIA. The transceiver designs are optimized for high
perform -ance and cost effective to supply customers the best solutions for telecommunication.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What will you do if I found the product has any quality problem?
A3.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith
that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!
Q4. What are the trade terms?
A4.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
Q5. Do you have compatible ones?
A5.Yes, we have our own brand:Top-trans, including 1X9,SFP, XFP, SFP+, BIDI in all kinds of specifications.
