Product Details:
|
| Data Rate: | 10G | Power Supply: | 3.3V |
|---|---|---|---|
| Diagnostic: | Yes | Media Type: | SMF |
| Distance: | 10Km | Power Consumption: | 1.5W |
| Connector: | LC | Certificate: | CE |
| High Light: | SFP Bidi 10km Tx1270 Rx1330nm,10Gb 10km Bidirectional SFP Module,Rx1330nm Bidirectional SFP Module |
||

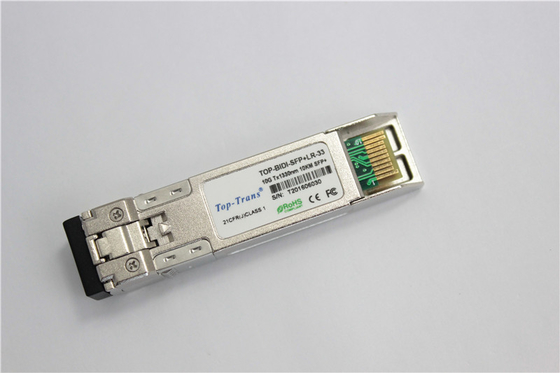

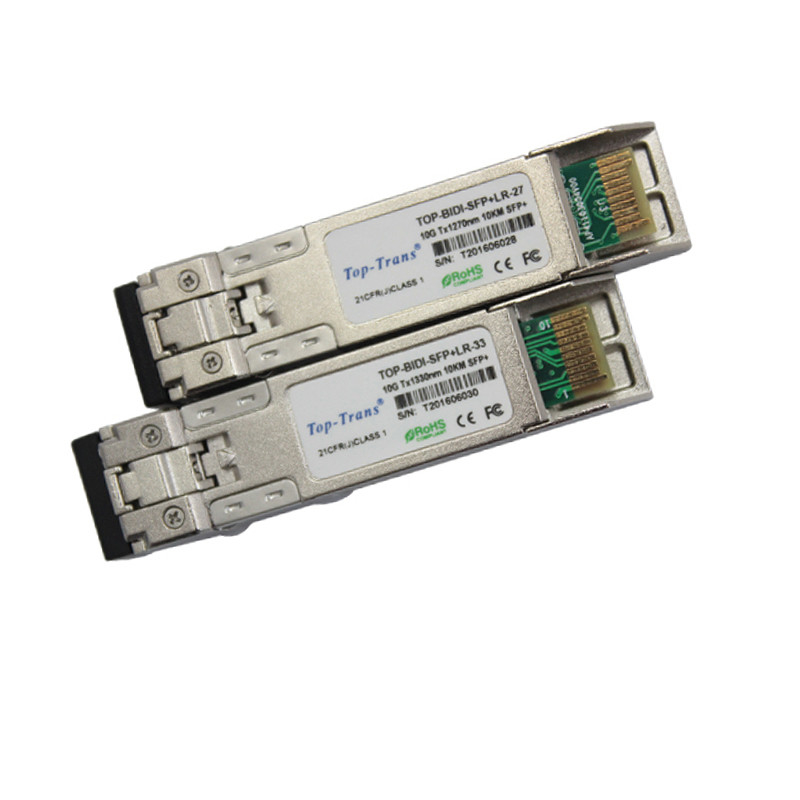

Fiber Optic Sfp Transceiver Tx1270/Rx1330nm 10km BIDI Optical Modules
Optical Module BIDI 10Km Fetures:
SFPMSA package with duplex LC connector
● Very low EMI and excellent ESD protection
● Digital Diagnostic Monitor Interface
● Hot pluggable
● 10Gb/s serial optical interface
● Upto10 kmdistance
● Compliant with SFP+MSA
● High transmission margin
● +3.3Vsingle power supply
● Below<1.5W power consumption
● SFP mechanical interface
APPLICATIONS
● 10GBASE-BXat10.3125Gb/s
● 10GBASE-BXat9.953Gb/s
STANDARD
● SFP+ MSA Compliant
● SFF-8472reversion9.5compliant
● IEEE802.3-2005compliant
● Telcordia GR-468-COREcompliant
● FCC47CFRPart15,ClassBcompliant
● FDA21CFR1040.10and1040.11,class1compliant
● RoHS compliant
10km BIDI Specification
| Fiber Type | SMF |
|
Lasers |
EMI |
|
power supply |
3.3V |
|
Distance |
10Km |
|
Form-Factor |
SFP |
|
wavelength |
1270/1330 nm |
|
Application |
10GBASE-SR/SW 10G Ethernet |
|
Optical Extinction Ratio |
3.5dB |
| Power dissipation | < 1.5W |
| Certificate | ROHS |
SFP+10G 10KM 1270 is hot pluggable 3.3VSmall-Form-Factor transceiver module.It designed expressly for high-speed
communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472 and SFP+MSA. The
module data link up to 10kmin9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input
of TxDisable.TxFault is provided to indicate that degradation of the laser .Loss of signal (LOS)output is provided to indicate the
loss of an input optical signal of receiver or the link status with partner.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What will you do if I found the product has any quality problem?
A3.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!
Q4. What are the trade terms?
A4.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
Q5. Do you have compatible ones?
A5.Yes, we have our own brand:Top-trans, including 1X9,SFP, XFP, SFP+, BIDI in all kinds of specifications.
