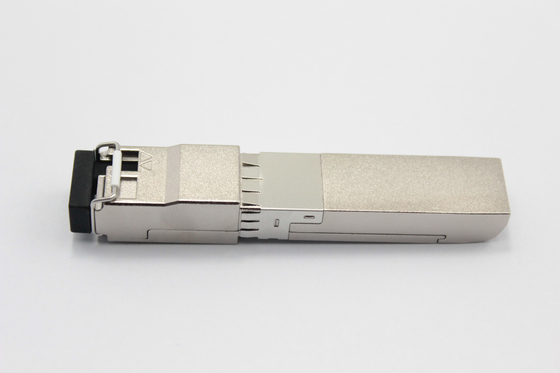

Finisar 10G SFP+ Optical Transceiver SMF BIDI 100km For 10G Ethernet

10G SFP+ Optical Transceiver Module BIDI 100km Fiber Optic For 10G Ethernet

 Optical Module  Fetures:

      Up to 11.1Gb/s data rate

      1490nm EML laser and APD receiver for TBD-SFP+-100D49

     1550nm EML laser and APD receiver for TBD-SFP+-100D55

      2-wire interface with integrated Digital Diagnostic monitoring

      Up to 100km transmission on SMF

      BIDI LC optical connector

      Single +3.3V power supply

      RoHS-10 compliant and lead-free

      Compliant with SFF+MSA and SFF-8472

      Maximum power consumption 1.8W

      Metal enclosure, for lower EMI

      Meet ESD requirements, resist 8KV direct contact voltage

     Operating case temperature: Commercial: 0 ~ +70^oC, Extended: -10 ~ +80^oC, Industrial: -40 ~ +85^oC

APPLICATIONS

      Back to Back

     10GBASE-ZR/ZW

     10G Ethernet

Topstar’ TBD-SFP+-100D49/TBD-SFP+-100D55 SFP+ transceiver is designed for use in 10-Gigabit Ethernet links up to 100km

over single mode fiber. The module consists of EML Laser, APD and Preamplifier in a high-integrated optical sub-assembly.

Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

TBD-SFP+-100D49/TBD-SFP+-100D55 transceivers provide a unique enhanced digital diagnostic monitoring interface, which

allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical

power, and received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning

flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.

The SFP+ MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8 bit

address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8 bit address 1010001X (A2h), so the

originally defined serial ID memory map remains unchanged.

FAQ

Q1. Are your Optical Transceivers original?

A1.Yes, all our optical transceivers are guaranteed 100% original!

Q2.How do you guarantee the quality of SFP?

A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.

Q3. What will you do if I found the product has any quality problem?

A3.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith

that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!

Q4. What are the trade terms?

A4.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

Payment term: Western Union, T/T, Alipay, Escow, Money Gram

Q5 .How many  years warranty and lead time ?

OEM compatible with 3 years warranty and lead time about 3-4 days .
