25GBASE-ER Optical Module SFP28 1310NM 40KM SMF For Enterprise Cloud Edge WAN

To distribute service in multi-regions, enterprise adopts cloud network to interconnect central and branch offices and manage cloud assets, software and applications. However, traditional public clouds using 4G broadband, wireless and LTE network are not secure, less reliable, limited bandwidth and high latency. On the contrary, direct connection with Cloud WAN offers flexible bandwidth, comprehensive security functions and private QoS, winning the favors by more cloud network users

For Cloud WAN, 25GBASE-ER is one of popular high bandwidth solution for metro network application. In comparison to 40G/100GBASE, 25GBASE still uses traditional 10GBASE cabling system but provides extra bandwidth and allows the access of more smart devices and applications.

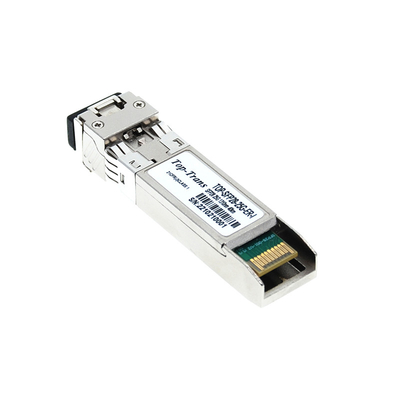

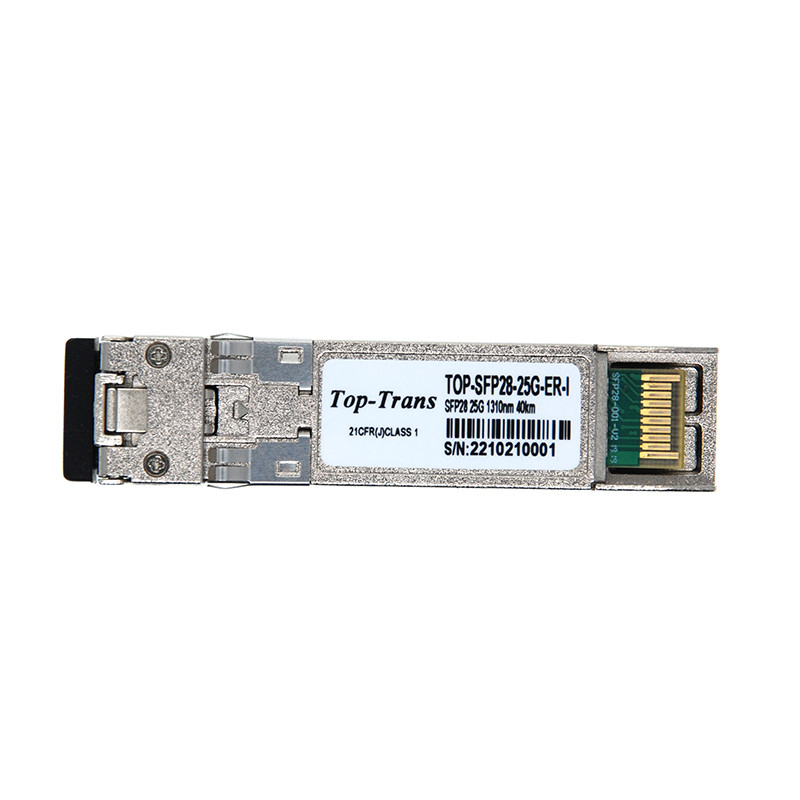

Top-Trans TSFP28-25G-ER Optical Module is designed for 25GBASE-ER, using 1310NM DML transmittors and APD receivers for enough link budget to reach 30km over single mode fiber (OS2 SMF) via dual LC connectors. It operates in the commercial temperature range between 0 to 70 degree celsius. It features SFP28 port to access the interface of 25G switches, routers, interface adapter and servers. It has built in DOM/DDM diagnostic function to monitor the operating status. It is fully compliant with SFP28 MSA, IEEE 802.3 industrial standard.

Key Features

• Hot-pluggable SFP28 form factor

• Supports 25Gbps data rate

• Maximum link length 30KM over OS2 Single Mode Fiber

• 1310NM DML lasers and APD photo-detector

• Internal CDR on both Transmitter and Receiver channel

• Duplex LC receptacle

• Single 3.3V power supply

• Power dissipation < 1W

• Digital diagnostics functions are available via the I2C interface

• RoHS-6 compliant

• Commercial case temperature range: 0°C to 70°C

Protocol

• 25GBASE-ER Ethernet​​

Parameters

​Compatible Platform

• Cisco, Mellanox, Broadcom, Dell-EMC, Juniper, Fortinet, Extreme Network, Avago, Finisar, Nokia, Ericsson

 FAQ


Do your sfp works on cisco platform?

Yes, we always test our sfp compatibility with Cisco Nexus, Catalyst, Meraki etc Series Switches

Can I use your sfp in the speed of 10GBASE?

Yes, we can provide dual rate version of 10/25GBASE

Can your sfp transmit distance beyond 30km, like 40km, 45km?

It depends on the link budget. With FEC, this module can transmit 40KM in the standard OS2 single mode fiber.

Can you provide other type sfp28 module?

Yes, we can provide SFP28 module for dual fiber, single fiber(BIDI) and WDM (CWDM, DWDM, MWDM) system.
