Product Details:
|
| Data Rate: | 10G | Temperture: | -5°C To 85°C |
|---|---|---|---|
| Connector: | LC | APPLICATI10GBASE-SR/SW 10G EthernetONS: | 10GBASE-SR/SW 10G Ethernet |
| Media Type: | MMF | Distance: | 400m |
| Diagnostic: | Yes | Wavelength: | 850 Nm |
| Highlight: | FTLX8574D3BNL 10G SFP Module,400m 850nm SFP Transceiver,FTLX8574D3BNL 850nm SFP Transceiver |
||

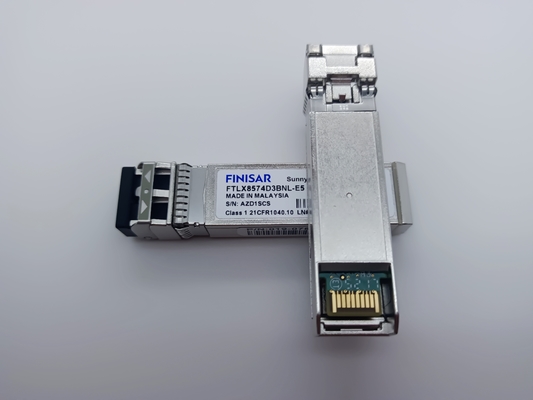

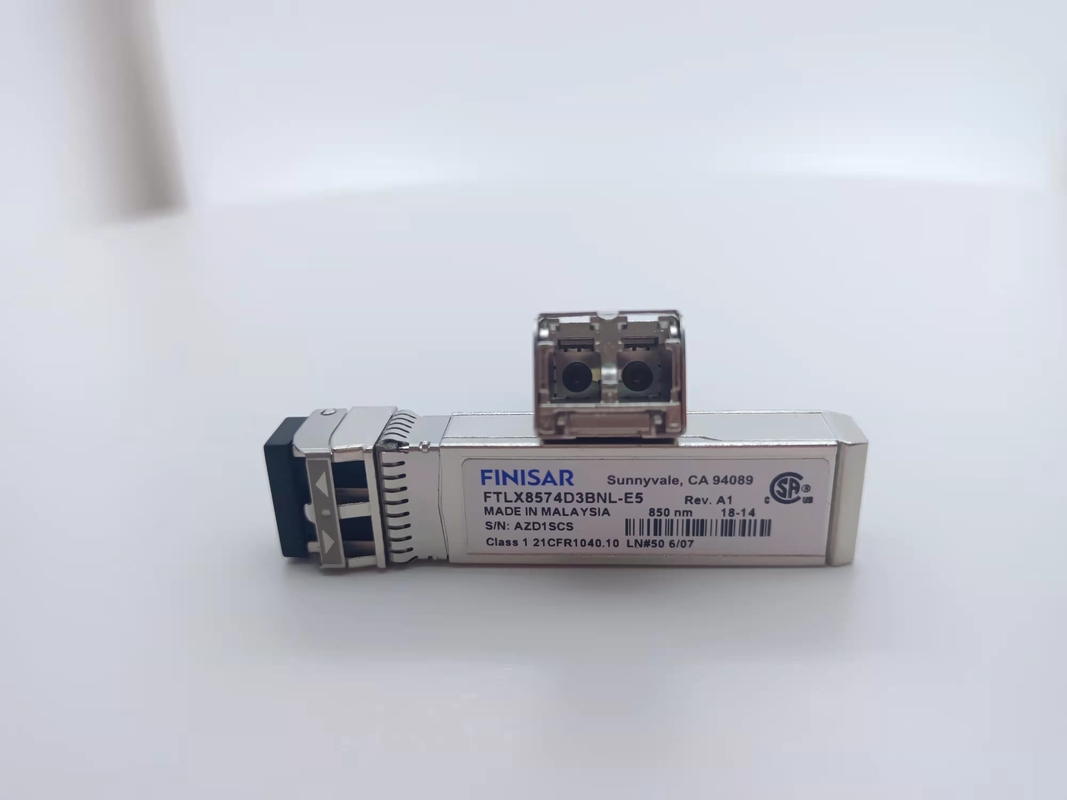

Extended Temperature 10G FTLX8574D3BNL 850nm SFP Transceiver
FTLX8574D3BNL Optical Module Fetures:
Hot-pluggable SFP+ footprint
Supports 9.95 to 10.5 Gb/s bit rates*
Power dissipation < 1W
RoHS-6 compliant (lead-free)
Commercial temperature range -5°C to 85°C
Single 3.3Vpower supply
Maximum link length of 400m on OM4 MMF
Uncooled 850nm VCSEL laser
Receiver limiting electrical interface
Duplex LC connector
Built-in digital diagnostic functions
APPLICATIONS
10GBASE-SR/SW 10G Ethernet
1200-Mx-SN-I 10G Fibre Channel
10G 400M Fiber Module Specification
| Fiber Type | MMF |
|
Conector |
LC |
|
power supply |
3.3V |
|
Distance |
400m |
|
Rate |
10G |
|
wavelength |
850 nm |
|
Application |
10GBASE-SR/SW 10G Ethernet |
| Optical Extinction Ratio | 5.5 dB |
| Power dissipation | < 1W |
Finisar’s FTLX8574D3BNL Extended Temperature 10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet
links over multimode fiber. They are compliant with SFF-84311 , SFF-84322 , IEEE 802.3-2012 10GBASE-SR/SW3 and
10G Fibre Channel 1200-Mx-SN-I4 . Digital diagnostics functions are available via a 2-wire serial interface, as specified in
SFF-84725 . The FTLX8574D3BNL is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an
EDC PHY IC should follow the IC manufacturer’s recommended settings for interoperating the host-board EDC PHY with a
limiting receiver SFP+ module. The optical transceiver is compliant per the RoHS Directive 2011/65/EU6 . See Finisar
Application Note AN-20387 for more details.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What will you do if I found the product has any quality problem?
A3.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith
that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!
Q4. What are the trade terms?
A4.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
