25GBASE-ER Optical Module SFP28 1310NM 30KM SMF For Enterprise Cloud Edge WAN

Parameters

To distribute service in multi-regions, enterprise adopts cloud network to interconnect central and branch offices and manage cloud assets, software and applications. However, traditional public cloud with 4G broadband, wireless and LTE network is not secure, not reliable, limited bandwidth and high latency, so direction connection using Cloud WAN becoming a widely favourable option for enterprises to deploy cloud network which offers flexible bandwidth, comprehensive security functions, light and high-speed connection.

For Cloud WAN, 25GBASE-ER is one of the popular high bandwidth solutions for metro network applications. In comparison to 40G/100GBASE, 25GBASE still uses the traditional 10GBASE Cabling system but increased bandwidth can allow the access of more smart devices and applications.

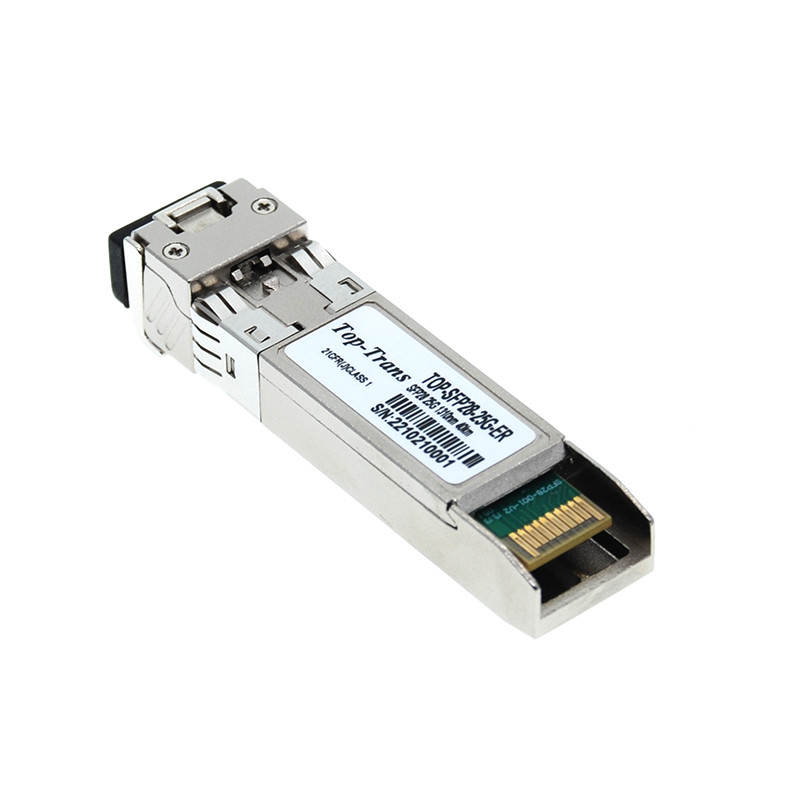

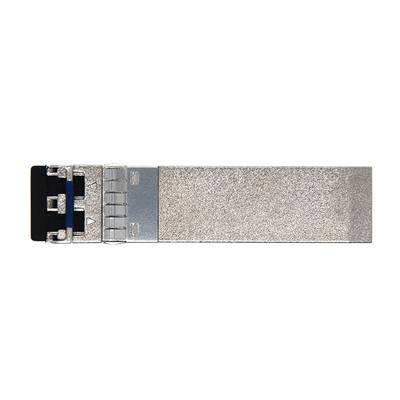

Top-Trans TSFP28-25G-ER Optical Module is designed for 25GBASE-ER, using 1310NM DML transmitters and APD receivers for enough link budget to reach 30km over single-mode fiber (OS2 SMF) via dual LC connectors. It operates in the commercial temperature range between 0 to 70 degrees celsius. It features an SFP28 port to access the interface of 25G switches, routers, interface adapters and servers. It has a built-in DOM/DDM diagnostic function to monitor the operating status. It is fully compliant with SFP28 MSA, IEEE 802.3 industrial standard.

Key Features

• Hot-pluggable SFP28 form factor

• Supports 25Gbps data rate

• Maximum link length 30KM over OS2 Single Mode Fiber

• 1310NM DML lasers and APD photo-detector

• Internal CDR on both Transmitter and Receiver channel

• Duplex LC receptacle

• Single 3.3V power supply

• Power dissipation < 1W

• Digital diagnostics functions are available via the I2C interface

• RoHS-6 compliant

• Commercial case temperature range: 0°C to 70°C

Protocol

• 25GBASE-ER Ethernet​​

​Compatible Platform

• Cisco, Mellanox, Broadcom, Dell-EMC, Juniper, Fortinet, Extreme Network, Avago, Finisar, Nokia, Ericsson

 FAQ


Do your SFP works on the Cisco platform?

Yes, we always test our SFP compatibility with Cisco Nexus, Catalyst, Meraki etc Series Switches

Can I use your SFP at the speed of 10GBASE?

Yes, we can provide the dual-rate version of 10/25GBASE

Can your SFP transmit the distance beyond 30km?

It depends on the link budget. This module can transmit 40KM in the standard OS2 single-mode fiber with FEC on.

Can you provide other types of sfp28 modules?

Yes, we can provide the SFP28 module for dual fiber, single fiber(BIDI) and WDM (CWDM, DWDM, MWDM) systems.
