Product Details:
|
| Data Rate: | 10G | Temperture: | -40°C To 85°C |
|---|---|---|---|
| Connector: | LC | APPLICATIONS: | 10GBASE-SR/SW 10G Ethernet |
| Power Supply: | 3.3V | Distance: | 400 M |
| Diagnostic: | Yes | Wavelength: | 850 Nm |

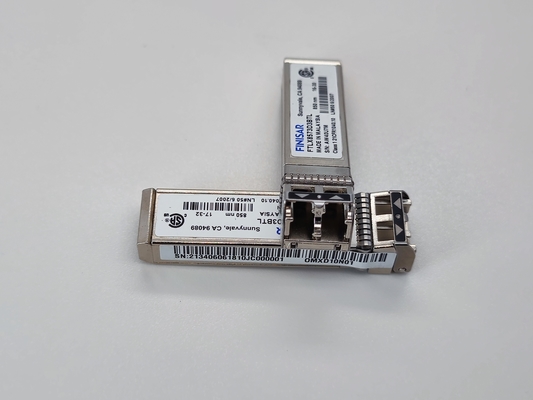

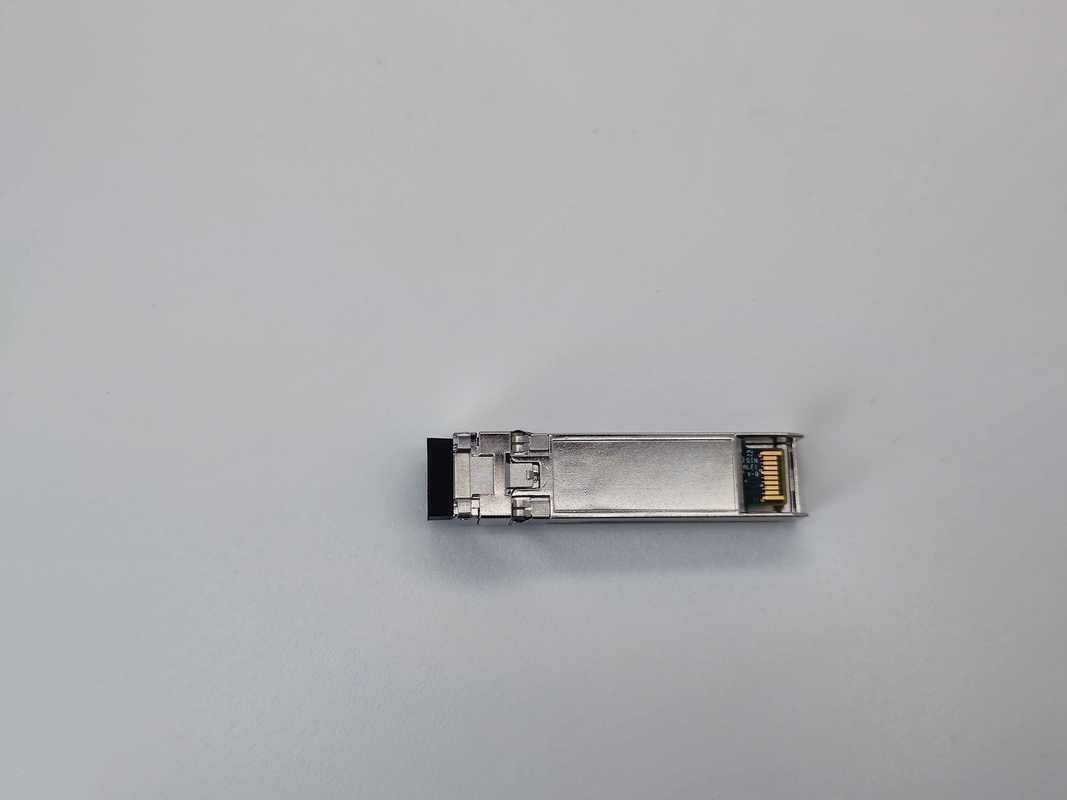

Industrial Temperature FTLX8573D3BTL Optical Transceiver 850nm 300M Fiber Module
FTLX8573D3BTL Optical Module Fetures:
Hot-pluggable SFP+ footprint
Supports 9.95 to 10.5 Gb/s bit rates
Power dissipation < 1W
RoHS-6 compliant (lead-free)
Industrial temperature range -40°C to 85°C
Single 3.3Vpower supply
Maximum link length of 400m on 4700 MHZ-km OM4 MMF
Heated 850nm VCSEL laser
Receiver limiting electrical interface
Duplex LC connector
Built-in digital diagnostic functions
APPLICATIONS
10GBASE-SR/SW 10G Ethernet
1200-Mx-SN-I 10G Fibre Channel
850nm 400m Fiber Module Specification
| Fiber Type | MMF |
|
Conector |
LC |
|
Temperature |
-40°C to 85°C |
|
Distance |
400m |
|
Rate |
10G |
|
wavelength |
850 nm |
|
Application |
10GBASE-SR/SW 10G Ethernet |
| Optical Extinction Ratio | 5.5 dB |
| Power dissipation | < 1W |
Finisar’s FTLX8573D3BTL Industrial Temperature 10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet
links over multimode fiber. They are compliant with SFF-84311 , SFF-84322 , IEEE 802.3ae 10GBASE-SR/SW3 and 10G
Fibre Channel 1200-Mx-SN-I4 . Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-
84725 . The FTLX8573D3BTL is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC
PHY IC should follow the IC manufacturer’s recommended settings for interoperating the host-board EDC PHY with a
limiting receiver SFP+ module. The optical transceivers are compliant per the RoHS Directive 2011/65/EU. See Finisar
Application Note AN-2038 for more details.
