Product Details:
|
| Data Rate: | 10G | Temperture: | -40 To 85 °C |
|---|---|---|---|
| Transmitter: | DFB | APPLICATIONS: | 10G Ethernet And Other Optical Links |
| Power Supply: | 3.3V | Distance: | 1.4 Km |
| Media: | SMF | Wavelength: | 1310 Nm |

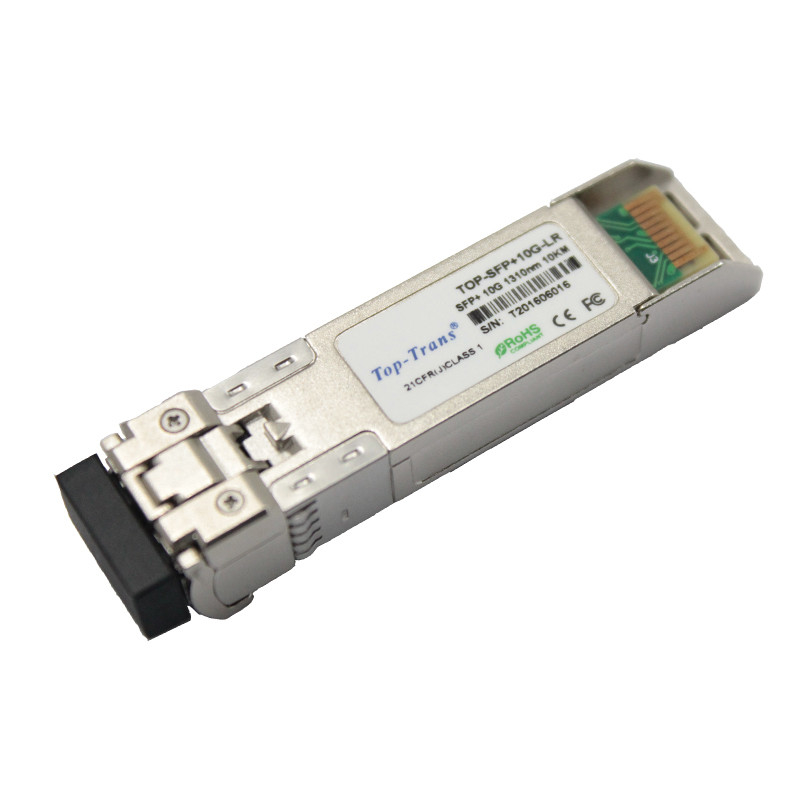

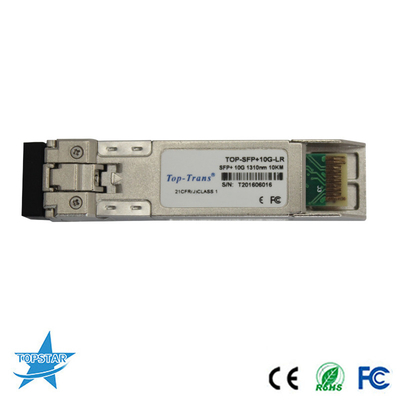

SFP 10Gbps Module 1310nm 1.4KM Optical Transceiver Low Power Consumption Fiber
1310nm 1.4KM Optical Module Fetures:
Optical interface compliant to IEEE 802.3ae 10GBASE-LR
Electrical interface compliant to SFF-8431
Hot Pluggable
1310nm DFB transmitter, PIN photo-detector
Operating case temperature: -40 to 85 °C
Low power consumption
Applicable for 1.4KM SMF connection
All-metal housing for superior EMI performance
Advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP+ solution, enables higher port densities and greater bandwidth
RoHS6 compliant (lead free)
Applications
10GBASE-LR at 10.3125Gbps
Other optical links
Standard
Compliant with SFF-8472 SFP+ MSA.
Compliant to SFP+ SFF-8431 and SFF-8432.
Compliant to 802.3ae 10GBASE-LR.
RoHS Compliant.
Low Power Consumption Optical Transceiver Specification
| Fiber Type | SMF |
|
Conector |
LC |
|
Operating Temperature |
-40 to 85 °C |
|
Distance |
1.4Km |
|
Rate |
10G |
|
Power Supply Voltage |
3.3V |
|
Application |
10G Ethernet and Other optical links |
| Optical Extinction Ratio | 3.5dB |
