Product Details:
|
| Data Rate: | 10G | Temperture: | -40°C To 85°C |
|---|---|---|---|
| Connector: | LC | APPLICATIONS: | 10G Ethernet |
| Power Supply: | 3.3V | Distance: | 10Km |
| Model Number: | FTLX1471D3BTL | Certificate: | ROHS |

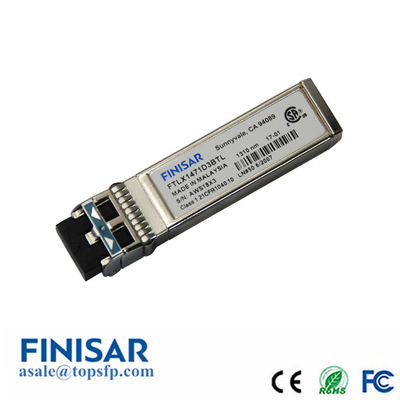

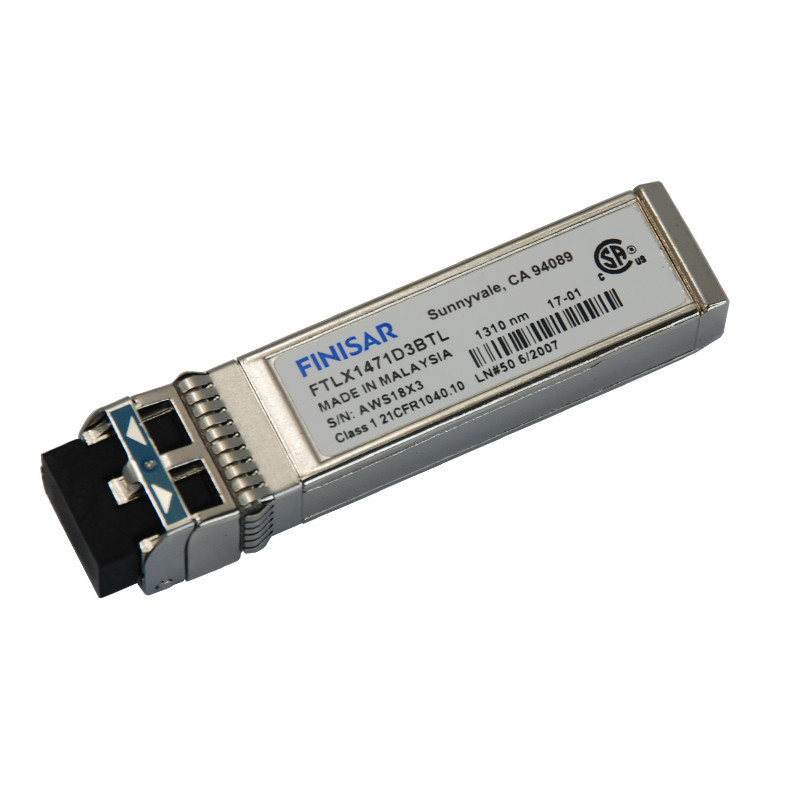

Finisar FTLX1471D3BTL Iindustrial Module 10G SFP Single Mode Optical Transceiver
FTLX1471D3BTL Optical Module Fetures:
• Hot-pluggable SFP+ footprint
• Supports 9.95 to 10.5Gb/s bit rates
• Power dissipation < 1W
• RoHS-6 compliant (lead-free)
• Industrial temperature range -40°C to 85°C
• Single 3.3V power supply
• Maximum link length of 10km
• Uncooled 1310nm DFB laser
• Receiver limiting electrical interface
• Duplex LC connector
• Built-in digital diagnostic functions APPLICATIONS
• 10GBASE-LR/LW 10G Ethernet
• 1200-SM-LL-L 10G Fibre Channel
Description
Finisar’s FTLX1471D3BTL 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-
Gigabit Ethernet links up to 10km over Single Mode fiber. They are compliant with SFF-84311 , SFF-84322 and IEEE 802.3ae
10GBASE-LR/LW3 , and 10G Fibre Channel 1200-SM-LL-L4 Digital diagnostics functions are available via a 2-wire serial
interface, as specified in SFF-84725 . The FTLX1471D3BTL is a “limiting module”, i.e., it employs a limiting receiver. Host board
designers using an EDC PHY IC should follow the IC manufacturer’s recommended settings for interoperating the host-board
EDC PHY with a limiting receiver SFP+ module. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC6
, and Finisar Application Note AN-20387 .
Finisar 10G Optical Transceiver Specification
| Fiber Type | SMF |
|
Conector |
LC |
|
Operating Temperature |
-40°C to 85°C |
|
Distance |
10Km |
|
Rate |
10G |
|
Power Supply Voltage |
3.3V |
|
Application |
10G Ethernet |
| Certificate | ROHS |
