Product Details:
|
Form Factor: | 1U Chassis | Fibre Channel Ports: | On-demand Scaling Of 8 To 24 8 Gbps Ports |
---|---|---|---|
Aggregate Bandwidth: | 384Gbps If All 24 Ports Running At 8 Gbps, Full Duplex | Performance: | Auto-sensing Of 1 2 4 And 8Gbps Port Speeds |
AC Input: | 100-240 VAC, 2.0A, 47-63 Hz | EZSwitchSetup Support: | Yes |
Weight: | 7kg | ||
Highlight: | 24 Port 8G DELL EMC Brocade,DELL EMC DS-300B For Connectrix B,Connectrix B Brocade SAN Switch DS-300B |

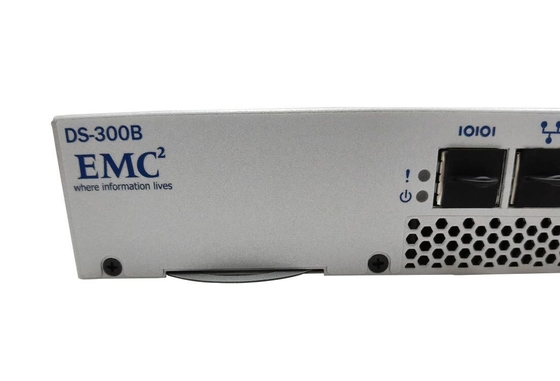

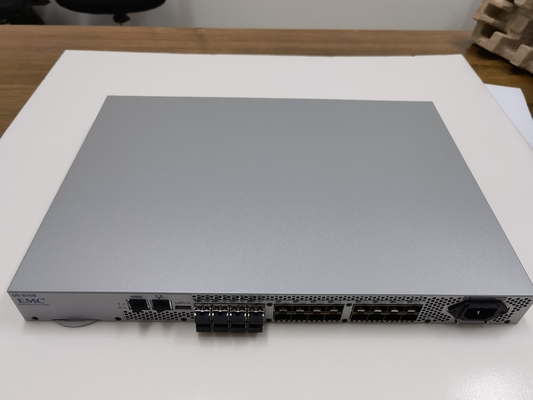

DS-300B 8G SEC SAN Switch Brocade EMC 24 Port For Connectrix B
DELL EMC DS-300B Flexible Entry-Level SAN Switch
This Brocade switch is manufactured for EMC and is known as the EMC Connectrix DS-300B. Good port density and scalability for a mid-range enterprise SAN. Minimum ports are 8 and can be upgraded 8 at a time. This allows you to start smaller and at a cost-effective price point and build out as needed.This switch is becoming more affordable and is flexible enough for entry-level SANs or as core to edge in SAN environments.
Main features | Systems Architecture |
Power consumption | 48 watts nominal, 57 watts maximum |
Input voltage | 85 - 264 VAC, universal |
Maximum output from the power supply | 75 watts |
Scalibility | On-demand scaling of 8 to 24 8 Gbps ports |
ISL Trunking | up to eight 8Gb/s ports per ISL Trunk, for a single Trunk up to 68 Gb/s |
USB | USB port that provides storage for firmware updates, output of the support save command and storage for configuration uploads and download |
Vibration | RJ45 Ethernet management port that in conjunction with EZSwitchSetup, supports switch IP address discovery and configuration |
The DS-300B provides the following features:
◆ 1U chassis The chassis can be installed as a standalone unit or mounted in a standard Electronic Industries Association (EIA) 19 in. (48.26 cm)
cabinet.
◆ One built-in fixed power unit (not a FRU) Three built-in fans (there are no fan FRUs) The DS-300B is cooled by a 2-1 redundant fan configuration,which means that it can sustain a single fan failure and continueto function properly.
◆ On-demand scaling of 8 to 24 8 Gbps ports
◆ GoldenEye-2 ASIC technology supporting 1, 2, 4 and 8 Gbps auto-sensing Fibre Channel ports
◆ A flexible design that enables the DS-300B to function as either a full-functioned switch or an NPIV access gateway
◆ Support of the EZSwitchSetup wizard for setup and basic configuration
◆ A single motherboard design with a 667 MHz PowerPC 440EPx Reduced Instruction Set Computer (RISC) CPU with integrated peripherals
◆ Inter-Switch-Link Trunking (licensable) which enables up to eight ports (at 1G, 2G, 4G, or 8G speeds) between a pair of switches to be combined to form a single, logical ISL switch with a speed of up to 64 Gbits/sec (128 Gbits/sec full duplex) for optimal bandwidth utilization and load balancing
◆ Dynamic Path Selection (DPS) which optimizes fabric-wide performance and load balancing by automatically routing data to the most efficient available path in the fabric
FAQ
Q1. What transceiver module can be used on this EMC DC-300B switch?
A1: 57-1000014-01 57-1000012-01 57-1000117-01 etc 2G 4G 8G 16G whole series SFP optical modules can be used;
Q2. How long can you dispatch the cargoes
A2: Generally 2 working days if in stock, if no stock, time is negotiable;
Q3. What else EMC SAN switch you can provide?
A3: We can provide whole series EMC 8G 16G 32G switch as requested;
