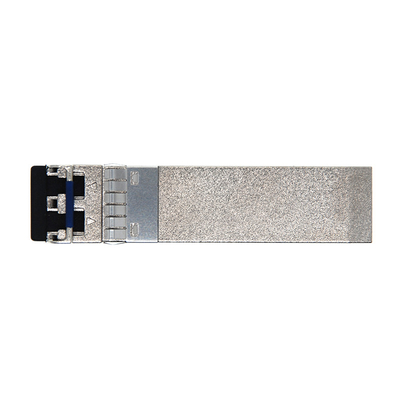

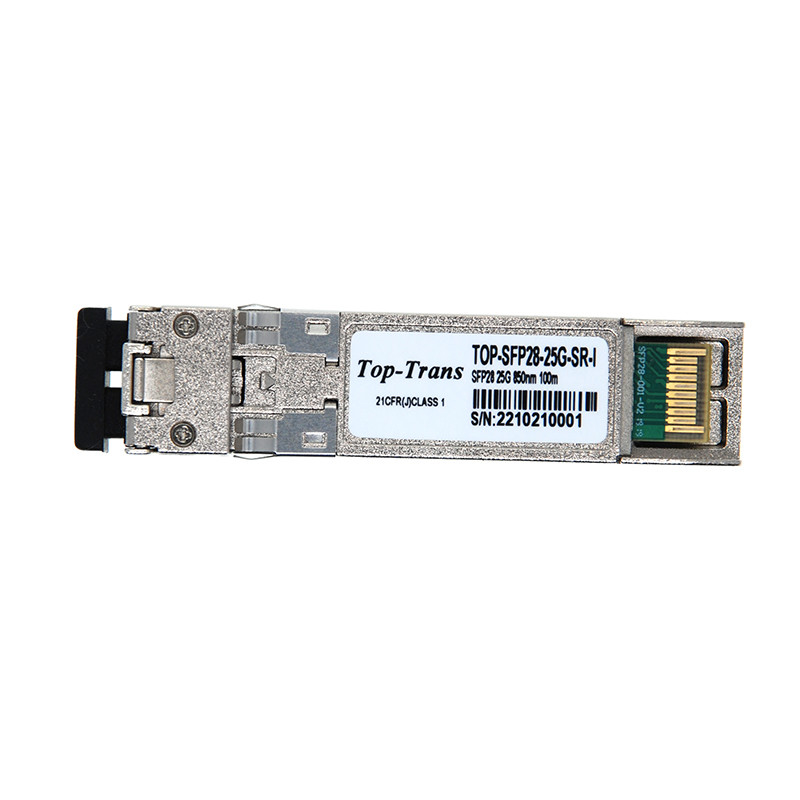

SFP28 Transceiver Module 25GBASE-SR 850NM 100M MMF For Enterprise 25 Gigabit LAN

Top-trans TSFP28-25G-SR creates 25Gigabit Ethernet through a link up to 100m over OM4 MMF (70m over OM3) over Duplex LC Cable. This module can be seamlessly applied into the existing 10G network cabling system, for increased bandwidth of 2.5 times, enabling Enterprise Infrastructure Integrating more devices and application into the cloud. With built-in DDM/DOM, this module can monitor the online operating status on a wide variety of servers, switches and routers.

Key Features

• Hot-pluggable SFP28 form factor

• Supports 25Gbps data rate

• Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF

• 850nm VCSEL laser and PIN photo-detector

• Internal CDR on both Transmitter and Receiver channel

• Duplex LC receptacle

• Single 3.3V power supply

• Power dissipation < 1W

• Digital diagnostics functions are available via the I2C interface

• RoHS-6 compliant

• Commercial case temperature range: 0°C to 70°C

Protocol

• 25GBASE-SR Ethernet

• 25G CPRI RAN

• 32G Fiber Channel

• Infiniband EDR ​​

Parameters

​Compatible Platform

• Cisco Catalyst 2960-CX. 9200, 9300, 9400 Series Switches,

• Mellanox ConnectX-4 MCX4121A-ACAT, ConnectX-5 MCX512A-ACAT Network Interface Adapter

• Broadcom M225P, N225P, N425G, P225P, P425G, M125P Dual SFP28 Network Interface Adapter

 FAQ


• How can you guarantee the quality of transceiver?

​

We keep investing on our joint OEM factory since 2012 and R & D on sfp transceiver. Our factory uses dust-free workshop with strick QC and every transceivers will take the comprehensive testing on optical spectrum, eye pattern, bit error rate and aging in low or high temperature for reliability

• Do your SFP have quantity warranty?

​

​Yes, Every SFP has three years quantity warranty. Client can back up the broken items for replacement & repairment or get the refund.

• What delivery method do you provide?

​

We provide DHL UPS FEDEX ARAMIX etc express logistics service and Airline, land Freight, Sea Freight etc

• How can I order your SFP?

​

You can leave the request in our website and valid contact.

Our sale will touch you shortly and they will help you make the order

We support the payment via T/T, West Union, Paypal

​​
