Product Details:
|
| Certification: | RoHs | Data Rate: | 10G |
|---|---|---|---|
| Standard Temperture: | 0 To +70°C | Center Wavelength: | 1310 Nm |
| Distance: | 10Km | Diagnostic: | Yes |
| Connector: | LC | Industrial Temperture: | -40 To +85°C |

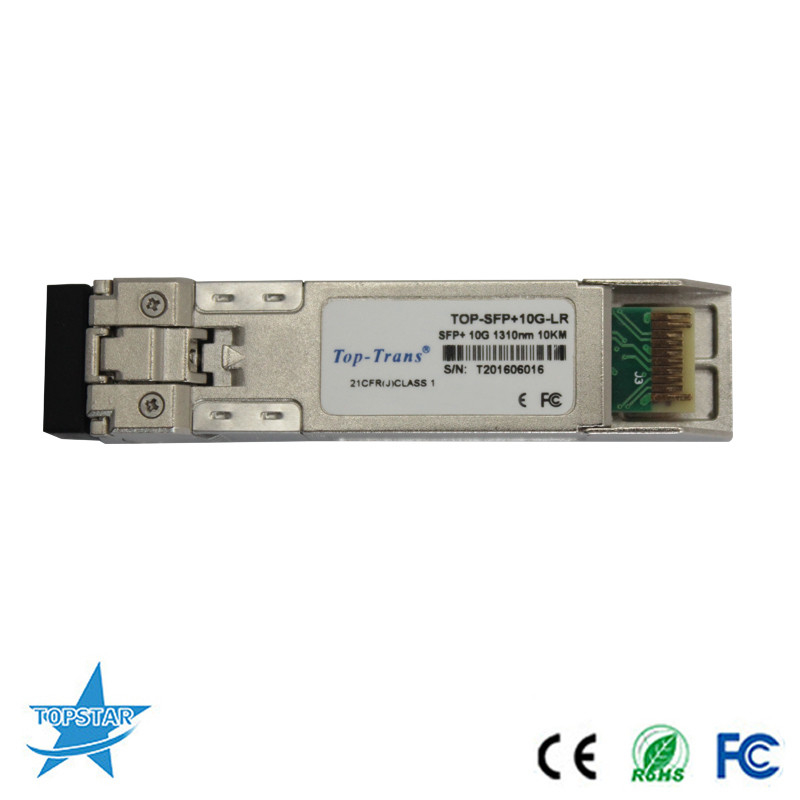

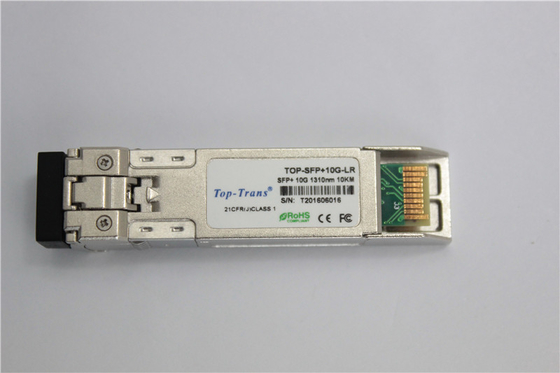

10G SFP 10Km Industrial Single Model Fibre Optical Transceiver
10Km Single Model Fibre Transceiver:
Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
1310nm DFB laser and PIN photodiode, Up to 10km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Power dissipation <1.2W
Real Time Digital Diagnostic Monitoring
Operating case temperature:
Applications
10Gbps Optical systems
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
LTE systems
CPRI at 10.137Gbps
Other Optical links
|
Optical Wavelength
|
1310 nm |
|
transmiter
|
DFB |
|
Max transmission
|
10km |
|
Extended temperture |
-20-+80 |
|
Operating case temperature:
|
0~+70ºC
|
| Data Rate | 10.3G |
|
Power Supply Voltage
|
4.5V |
|
Power dissipation
|
<1.2W
|
10Gbps Optical systems
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
LTE systems
CPRI at 10.137Gbps
Other Optical links
Description
The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 10km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
