Product Details:
|
| Connector: | LC | Rate: | 10Gb/s |
|---|---|---|---|
| Power Consumption: | <1W | Temperature Range: | -40~ 85°C |
| Distance: | 300M | Wavelength: | 850 Nm |
| Power Supply: | 3.3V | Transmitter: | Vcsel |

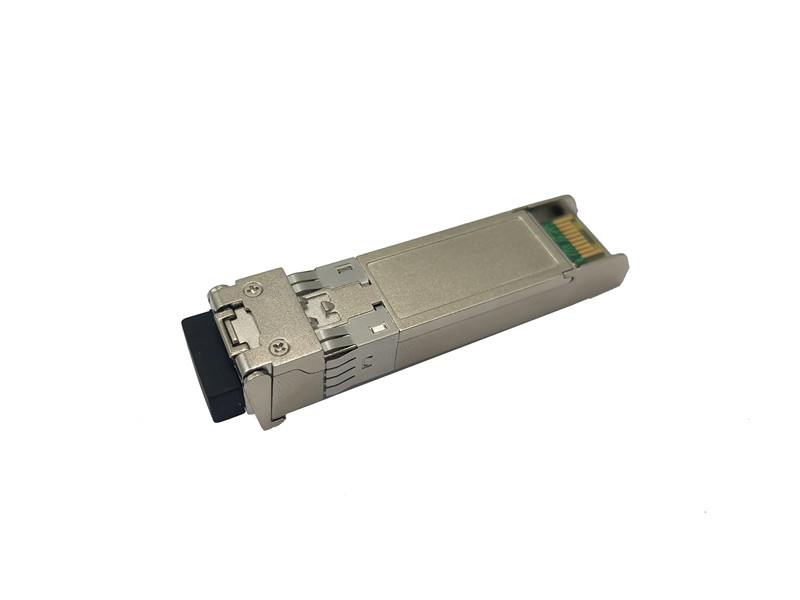

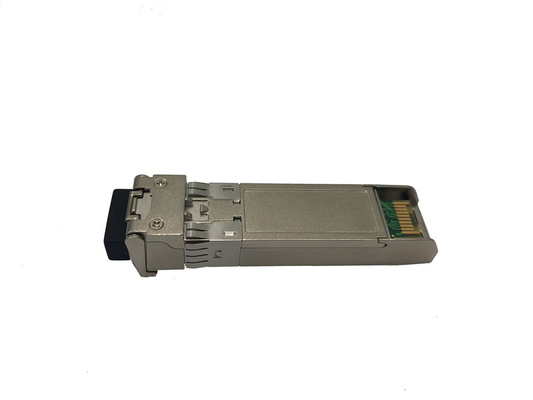

10G SFP Transceiver 850nm Optical Module 300M MMF Mode Fiber
10G SFP Features:
Supports 8.5 to 11.3Gb/s bit rates
Hot-Pluggable
Duplex LC connector
850nm VCSEL transmitter, PIN photo-detector
Maximum link length of 300m on 2000 MHZ-km MMF
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
Voltage :+3.3V
Power consumption<1W
Temperature Range: -40~ 85°C
RoHS compliant
Applications:
10GBASE-SR/SW Ethernet
SONET OC-192 / SDH STM-64
10G Fibre Channel
Note:
1. Average power figures are informative only, per IEEE802.3ae.
2. TWDP figure requires the host board to be SFF-8431compliant. TWDP is calculated using the Matlab code provided in clause 68.6.6.2 of IEEE802.3ae.
3. 12dB reflection.
4. Conditions of stressed receiver tests per IEEE802.3ae. CSRS testing requires the host board to be SFF-8431 compliant.
5. Receiver overload specified in OMA and under the worst comprehensive stressed condition.
850nm 300M SFP Optical Module Specification
| Digital Diagnostic Monitor | Yes |
| Storage Temperature | -40-+85 |
| Media Type | MMF |
| Applications | Ethernet |
| Gross weight | 0.035/kg |
| Carton Size | 22cmx17cmx7cm |
| Warranty | 3 years |
| Packing | 10pcs /box |
| Tx Output Power | ±3.0dBm |
| Rx Input Power | ±3.0dBm |
Description:
TOPSTAR's TOP-SFP+-10G-SR is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s.
The TOP-SFP+-10G-SR converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to
10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
The high performance 850nm VCSEL transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 300m links.
The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-SR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.
Why Choose Topstar?
Established in 2006 ,more than 13 years experiences in the field of Optical Transceiver.
More than 20% year-on-year growth in sales during the past 12 years.
Excellent track records with 12 years continuously no single major quality problem.
500+ customers installed based globally including major operators.
Stocks holds more than 200,000 transceivers at any one time for immediate delivery. Shenzhen sales center,Shenzhen OEM/ODM factory ,
Shenzhen warehouse , HK warehouse , USA San Francisco branch to support fast service and shipment .
100% in testing equipment capable of OEM transceiver.
