Product Details:
|
| Center Wavelength: | 840 Nm To 860 Nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Weight: | 0.05KG/PCS | Performance: | Auto-sensing Of 57.8Gb/s, 28.05Gb/s, And 14.025Gb/s Port Speeds |
| Cable Type: | MMF | Cable Distance: | 100m |
| Connector: | Industry-standard LC Duplex | Compliant: | RoHS |
| Highlight: | FC QSFP Transceiver 64G,57-1000267-01 Transceiver,SWL FC QSFP Transceiver |
||
Brocade 57-1000267-01 XBR-000232 FC QSFP Transceiver 64G SWL for 8510 SAN Director Grade A
Brocade 4x16Gb/s SW FC SFP Transceiver Specification
The Brocade 64G SWL SFP+ modules are hot-swappable, low-voltage (3.3V) digital diagnostic optical transceivers that support high-speed serial links over multimode optical fiber at signaling rates up to 57.8Gb/s. They comply with SFP+ mechanical (SFF-8402), optical, and electrical specifications (FC-PI) for LC duplex transceivers.
The Brocade 64G SWL SFP+ is a multirated 850-nm SFP that complies with 57.8/28.05/14.025Gb/s Fibre Channel specifications.
Ordering Part Number
• XBR-000462 (1-pack)
• XBR-000463 (8-pack)
Parameters for the 64Gb/s ELWL FC SFP Transceiver Module:
| Performance | Fibre Channel: 57.8Gb/s, 28.05Gb/s, and 14.025Gb/s line speed, full duplex; |
| Media | Hot-pluggable, industry-standard small form-factor pluggable (SFP+), LC connector; short wavelength (SWL) |
| Operating Parameters |
Transmit (Tx): • Wavelength: 840 nm to 860 nm • Spectral width: 0.6 nm • Average power: −7.5 dBm to 4 dBm • RIN: −128 dB/Hz max • OMA: −4.5 dBm min (355 µW)
Receive (Rx): • Wavelength: 840 nm to 860 nm • Average power: 4 dBm max • Optical return loss: 12 dB min • Unstressed sensitivity: −7 dBm (200 µW) • SRS OMA: −2.4 dBm (575 µW) • 3-dB cutoff maximum: 18 GHz |
| Operating distances |
OM3 50 µm (2000 MHz×km): • 16G Fibre Channel. Distance: 0.5m to 100m • 32G Fibre Channel. Distance: 0.5m to 70m • 64G Fibre Channel. Distance: 0.5m to 70m
OM4, OM4+, and OM5 50 µm (4700 MHz×km): • 16G Fibre Channel: Distance. 0.5m to 125m • 32G Fibre Channel: Distance. 0.5m to 100m • 64G Fibre Channel: Distance. 0.5m to 100m |
| Size |
Width: 14.80 mm (0.58 inches) Height: 12.21 mm (0.48 inches) Depth: 56.70 mm (2.23 inches) |
| Storage Temperature | −40°C to +85°C (−40°F to +185°F) |
| Power Dissipation | 1.6W |

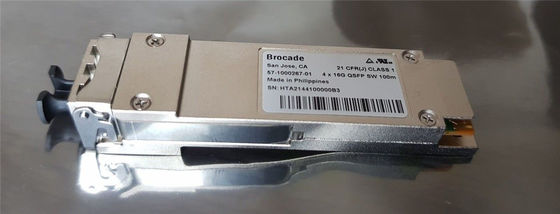

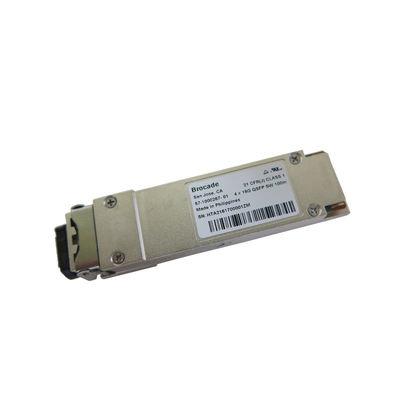

Photo for Brocade 4x16Gb/s 100M FC SFP+ Transceiver
FAQ
Q1. Except for this Brocade 4X16Gb/s 100m FC SFP+ Transceiver optical modules, what else Brocade sfp can you offer?
A1: pls check the below form for the Brocade optical module we can offer;
| Data Rate |
Description
|
Manufacturing
Part Number
|
Brocade Ordering
Part Number
|
|
4x32G FC QSFP+
|
SWL
|
57-1000351-01
|
XBR-000275 (1-pack)
|
| 4x32G FC QSFP+ |
SWL
|
57-1000490-01
|
XBR-000475 (1-pack)
|
| 4x32G FC QSFP+ |
2 km
|
57-1000480-01
|
XBR-000285 (1-pack)
|
| 64G FC SFP+ |
SWL
|
57-1000495-01
|
XBR-000462 (1-pack)
XBR-000463 (8-pack)
|
| 64G FC SFP+ |
LWL - 10 km
|
57-1000496-01
|
XBR-000468 (1-pack)
XBR-000469 (8-pack)
|
| 64G FC SFP+ |
ELWL - 25 km
|
57-1000497-01
|
XBR-000466 (1-pack)
|
|
32G FC SFP+
|
SWL
|
57-1000333-01
|
XBR-000212 (1-pack)
XBR-000213 (8-pack)
|
| 32G FC SFP+ |
SWL
|
57-1000485-01
|
XBR-000412 (1-pack)
XBR-000413 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000332-01
|
XBR-000238 (1-pack)
XBR-000239 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000486-01
|
XBR-000438 (1-pack)
XBR-000439 (8-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000355-01
|
XBR-000278 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000494-01
|
XBR-000478 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000498-01
|
XBR-000479 (1-pack)
|
|
16G FC SFP+
|
SWL
|
57-0000088-01
|
XBR-000192 (1-pack)
XBR-000193 (8-pack)
|
|
16G FC SFP+
|
SWL
|
57-1000487-01
|
XBR-000492 (1-pack)
XBR-000493 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-0000089-01
|
XBR-000198 (1-pack)
XBR-000199 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-1000488-01
|
XBR-000498 (1-pack)
XBR-000499 (8-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000262-01
|
XBR-000258 (1-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000489-01
|
XBR-000458 (1-pack)
|
|
8G FC SFP+
|
SWL
|
57-1000117-01
|
XBR-000163 (1-pack)
XBR-000164 (8-pack)
|
| 8G FC SFP+ | LWL - 10 km |
57-1000027-02
|
XBR-000153 (1-pack)
XBR-000172 (8-pack)
|
| 8G FC SFP+ | ELWL - 25 km |
57-0000080-01
|
XBR-000174 (1-pack)
|
Q2:Is this genuine Brocade Original 4x16G 100M FC SFP Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.
Q3:Does your SFP provide a quality warranty?
A3:For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;
Q4:Can you send this SFP module to my place? and how long does it take?
A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
