Brocade Gen6 FC32-64 FC SFP Transceiver 57-1000326-01 4x25GbE 100GBASE-SR4

Certification
China TOPSTAR TECHNOLOGY INDUSTRIAL CO., LIMITED certification
China TOPSTAR TECHNOLOGY INDUSTRIAL CO., LIMITED certification
Customer Reviews
Finisar sfp works perfectly. All good quality, fast shipping and excellent service. The knowledge of product was good by sales person. A must buy seller.

—— Davidson James-Data Cener in USA California

Supplier is responsive & fast. Product shipped conforms to specs as claimed. Rather efficient and delivers as committed.

—— Sam Khin Singapore ISP company

I'm Online Chat Now

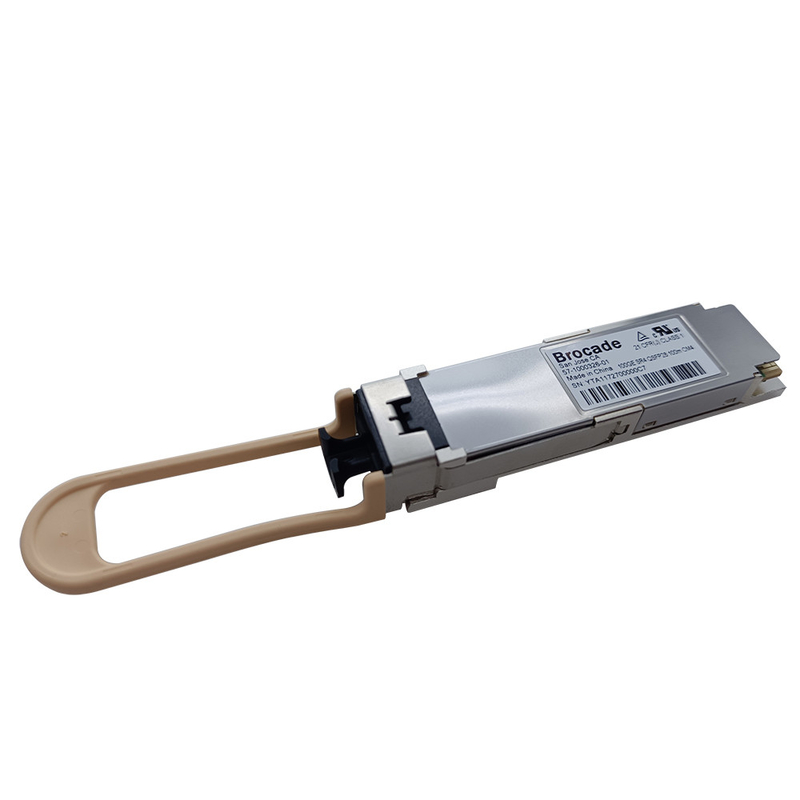

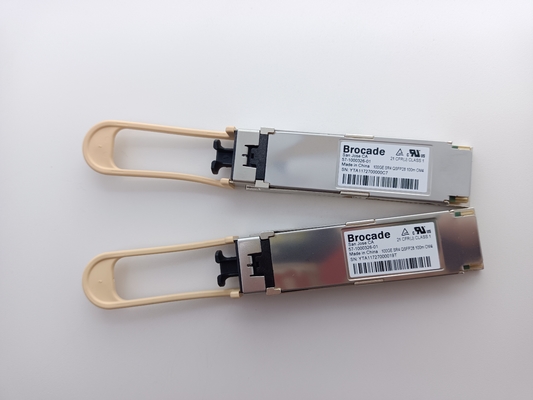

Brocade Gen6 FC32-64 FC SFP Transceiver 57-1000326-01 4x25GbE 100GBASE-SR4

Brocade Gen6 FC32-64 FC SFP Transceiver 57-1000326-01 4x25GbE 100GBASE-SR4
Brocade Gen6 FC32-64 FC SFP Transceiver 57-1000326-01 4x25GbE 100GBASE-SR4 Brocade Gen6 FC32-64 FC SFP Transceiver 57-1000326-01 4x25GbE 100GBASE-SR4

Large Image :  Brocade Gen6 FC32-64 FC SFP Transceiver 57-1000326-01 4x25GbE 100GBASE-SR4

Product Details:
Place of Origin: China
Brand Name: Brocade
Certification: ISO9001, ROHS, CE, FCC
Model Number: 57-1000361-01/XBR-100G-SR4-0288
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: QSFP Blister box + Anti-static Bag
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, Paypal,
Supply Ability: 3000pcs per month

Brocade Gen6 FC32-64 FC SFP Transceiver 57-1000326-01 4x25GbE 100GBASE-SR4

Description
Data Rate: 4×25GbE Form-Factor: QSFP28
Center Wavelength: 850NM Transimission Distance: 70M OM3 100M OM4 MMF
Temperature: 0°C~70°C Commercial Weight: 60 Grams
Warranty: 1 Years Support Switches: Brocade Gen FC32-64
High Light:

Brocade Gen6 FC32-64 FC SFP Transceiver

,

4x25GbE 100GBASE-SR4

,

FC SFP Transceiver 57-1000326-01

Brocade Gen6 FC32-64 Use 57-1000129-01 Transceiver QSFP+ 40GBASE-SR4 MMF MPO



The Brocade® 100 Gb/s SR4 QSFP28 optical transceivers provide stateof-the-art performance o help IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.

Data Speed 4×25.8 Gb/s
Center Wavelength 850NM
Fiber Type MMF
Transmission 70M on OM3, 100M on OM4
Connector MTP/MPO-12
Lasers VCSEL + PIN
Tx power -9.1 - + 2.4 dBm
Rx sensitivity -11.0 - +2.4 dBm
OMA -7.1 dBm to +3.0 dBm per channel
Power Consumption 2.5 W
Single Power Supply 3.3 v

The Brocade 100 Gb/s SR4 QSFP28 supports highly reliable operations in service provider and data center networks. It undergoes rigorous qualification and certification testing to provide an end-to-end solution that is easier to maintain—helping improve the availability of data center networks supporting mission-critical applications.



  • Provides high system reliability based on rigorous qualification and certification testing

  • Leverages unique design parameters to provide the highest performance with industry-leading Brocade solutions to support business continuity

  • Complies with 100GBASESR4 (IEEE 802.3bm) optical specifications, helping to ensure compatibility with other standardscompliant optics

  • Helps eliminate issues resulting from unexpected design changes, providing ongoing end-to-end compatibility

  • Optimizes connectivity to enable maximum cable distance





Brocade Gen6 FC32-64 FC SFP Transceiver 57-1000326-01 4x25GbE 100GBASE-SR4 0

Parameters



Brocade Gen6 FC32-64 FC SFP Transceiver 57-1000326-01 4x25GbE 100GBASE-SR4 1

FAQ



  • Is this genuine Brocade Original Transceiver?

Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since 2006 and never sell fake or copy brand items.



  • Hong long does the SFP warranty provide?

For brocade SFP, we offer 30days of free return, one-year of free replacement.



  • How do you send SFP to my place? and how long does it take?


Yes, we provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.

The express logistic generally takes 5-12 days to global.

​​

  • Do you have regular stock of this Brocade transceiver?

Yes, we have regular stock of this model, ready to ship in 3 working days
