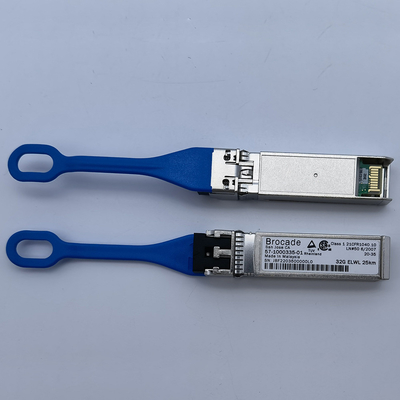

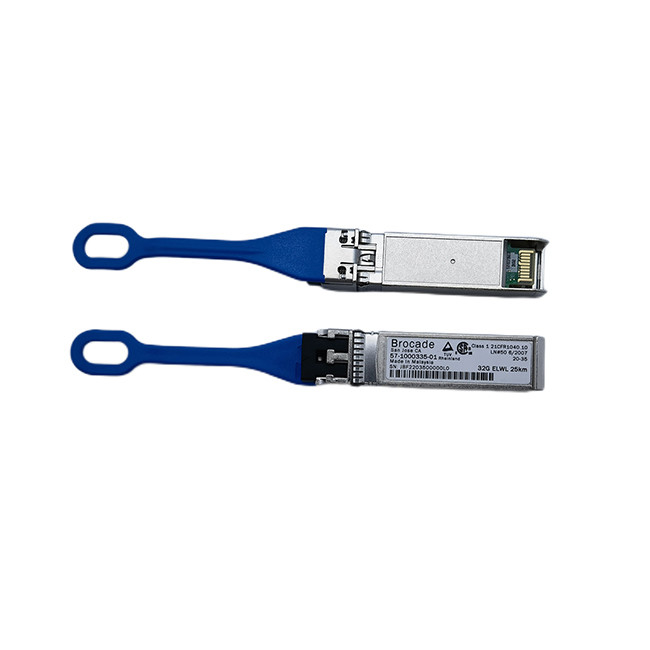

​X7 Blade Use XBR-000478 Brocade Transceiver 32G FC SFP+ ELWL 25KM SMF

The Brocade 32G Extended Long Wavelength (ELWL) 25 km SFP+, part of the Brocade family of small form-factor pluggable (SFP) optical transceivers, is optimized to fully leverage Brocade 32G switch and director products. Brocade ELWL SFPs extend native Fibre Channel connectivity over distance, enabling high-performance disaster recovery and business continuity solutions.

This Brocade XBR-000478 is designed for 32G FC over a link of up to 25KM, supported by the latest Gen7 Brocade G720, G730 SAN switches & FC64-48 and FC32-X7-48 etc X7 blade modules.

Key Features

• Hot-swappable, low-voltage (3.3V) digital diagnostic optical transceivers that support highspeed serial links over single-mode optical fiber at signalling rates up to 28.05Gb/s

• 1310-nm DFB laser

• FC-PI-6 compliance for 28.05/14.025/8.5Gb/s operation

• Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers, providing real-time monitoring of the following:

− Transmitted optical power

− Received optical power

− Laser bias current

− Temperature

− Supply voltage

• Industry-standard LC duplex connector

• 25-km link lengths on 9-µm singlemode fiber (with a 10-km minimum link length)

• IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe

• Compliance with the Restriction on Hazardous Substances (RoHS) directive

• Provides high system reliability through rigorous qualification and certification processes

• Leverages unique design parameters to provide the highest performance with industry-leading Brocade switch and director platforms to support business continuity and disaster recovery.

• Helps eliminate issues related to SFP incompatibility, reducing downtime and support costs.

• Helps eliminate issues resulting from unexpected design changes, providing ongoing end-to-end compatibility.

• Optimizes connectivity with Brocade platforms to enable maximum cable distance.

• Extends Fibre Channel connectivity over distance in enterprise environments, enabling high performance business continuity and disaster recovery solutions.

Protocol

• 32G Fiber Channel​

​

Parameters

​​

FAQ

• Is this genuine Brocade Original Transceiver?

​

​Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since 2006 and never sell fake or copy brand items.

• What's the difference between XBR-000278 and XBR-000478?

They are both Brocade 32G FC SFP+ ELWL transceivers.

XBR-000278 is an old version only for the Brocade Gen6 platform

XBR-000478 is the newly released model compatible with both the latest Gen7 platform and Brocade Gen6 Platform

• Hong long does the SFP warranty provide?

​

For brocade SFP, we offer 30days of free return, one-year of free replacement.

• How do you send SFP to my place? and how long does it take?

​
Yes, we provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.

The express logistic generally takes 5-12 days to global.

​​

• Do you have regular stock of this Brocade transceiver?

​

Yes, we have regular stock of this model, ready to ship in 3 working days
