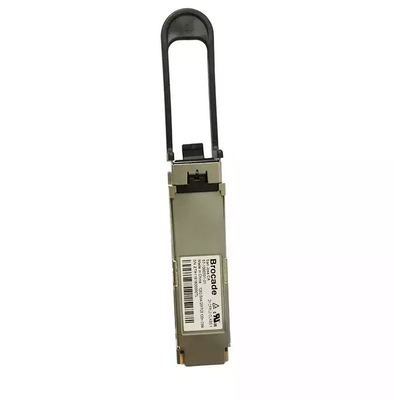

Brocade Transceiver 57-1000355-01 XBR-000275 4x32G FC QSFP+ SWL for G630 SAN

The Brocade® 4×32Gb/s Short Wavelength (SWL) Quad Small Form-Factor Pluggable (QSFP+) transceivers, part of the Brocade family of optical transceivers, are optimized for Brocade switches. These optical transceivers provide state-of-the-art performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services. The Brocade 4×32Gb/s SWL QSFP+ modules are hot-swappable, low voltage (3.3V) digital diagnostic optical transceivers that support highspeed serial links over multimode optical fiber at signalling rates up to 4×28.05Gb/s. They comply with the 128GFC Fibre Channel standard (FCPI-6P) and QSFP MSA mechanical specification (SFF-8661).

This XBR-000275 Transceiver is designed for 4x32G (128G) FC over a link up to 100M with 70M OM3 and 100M OM4 Multimode Fiber, supported by Brocade Gen6 X6 Blade server, FC32-64, FC32-48 Blade module & G620, G630 SAN switches.

Key Features

• 850-nm multimode VCSEL transmitter

• Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers, providing real-time monitoring of the following:

− Transmitted optical power

− Received optical power

− Laser bias current

− Temperature

− Supply voltage

• Industry-standard MPO 1×12 ribbon cable connector

• 100m link length on OM4, OM4+, and OM5 fiber; 70m link length on OM3 fiber (these distances assume 1.0-dBm connector loss)

• Support for the breakout to 4x32Gb/s SWL connectivity

• IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe

• Compliance with the Restriction on Hazardous Substances (RoHS) directive

• Provides high system reliability through a rigorous qualification and certification process.

• Eliminates issues related to transceiver incompatibility, reducing downtime and support costs.

• Provides support for 32Gb/s and 16Gb/s inter-switch links (ISLs), inter-chassis links (ICLs), and device connectivity

Protocol

• 128G Fiber Channel​

​

Parameters

​​

FAQ

• Is this genuine Brocade Original Transceiver?

Yes, every brand SFP sold by Topstar is a genuine original. We are an honest supplier of high reputation in the market

.Topstar sell SFP since 2006 and always provides the best product to meet clients' expectations.

• Hong long does your SFP quality warranty provide?

​

For brocade SFP, we support 30days of free return and 1 year of free replacement for any quality issues.

• How do you pack the SFP?

They are in a bulk package of Brocade 8pcs * plastic blister tray, anti-static bag and then 5-Ply CTN

• How do you send me the SFP module? and how long does it take?

​
We provide door-to-door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.

The express logistic generally takes 5-12 days to global.

​​

• Do you have regular stock of this Brocade transceiver?

​

Yes, we have regular stock for instant delivery
