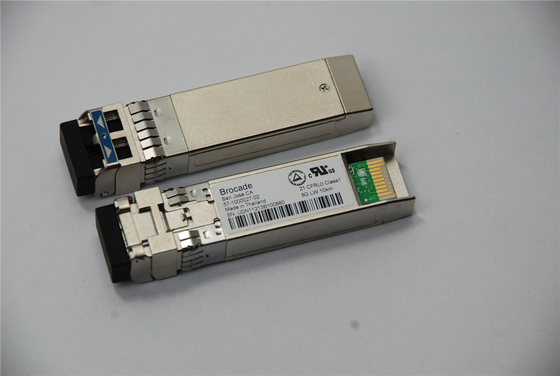

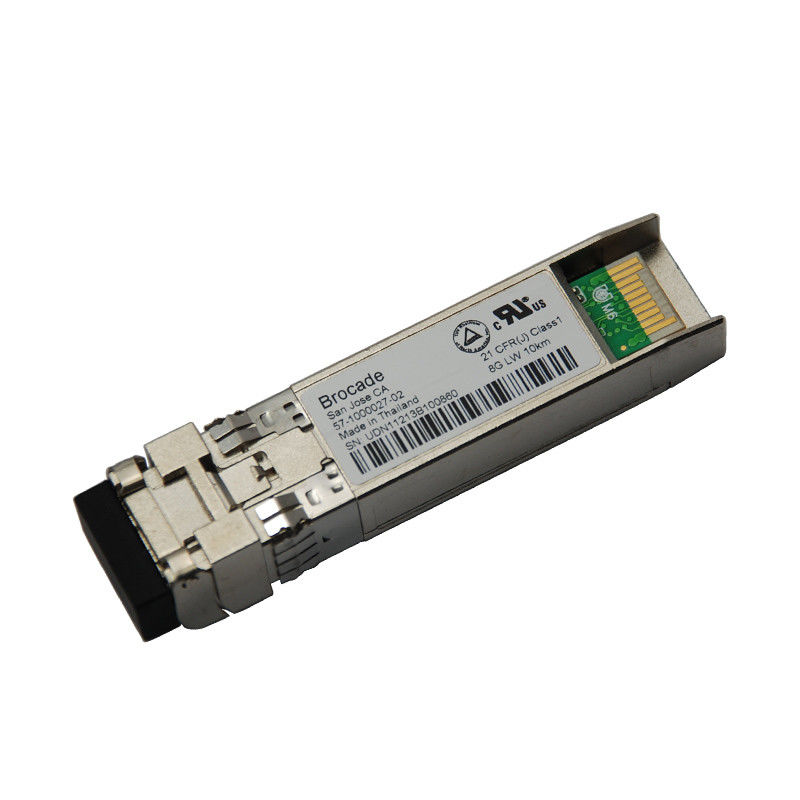

57-1000027-02 XBR-000153 Brocade Original 8G FC SFP+ LWL Transceiver 10KM SMF

The Brocade® 8 Gbit/sec Long Wavelength LWL (10 km) Optical Transceiver, part of the Brocade family of Small Form-Factor Pluggable (SFP) optical transceivers, is optimized to fully leverage Brocade backbone, director, and switch products. Brocade LWL SFPs extend native Fibre Channel connectivity over distance, enabling high-performance disaster recovery and business continuity solutions.

Brocade LWL SFPs are the standard choice for use in mainframe environments, connecting to IBM System z channels and FICON® devices over distance for business continuity and disaster recovery. Together with Brocade switching products, they provide state-of-the-art performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.

Brocade 8 Gbit/sec LWL 10 km Optical Transceivers support highly reliable operations in data center fabrics and are optimized for Brocade switching platforms. They undergo rigorous qualification and certification testing that results in an end-to-end solution that is easier to maintain—helping improve the availability of data center fabrics supporting mission-critical applications.

Key Features

• 1310 nm DFB laser

• FC-PI-4 compliance for 8.5/4.25/2.125 Gbit/sec operation

• Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers, providing real-time monitoring of the following:

− Transmitted optical power

− Received optical power

− Laser bias current

− Temperature

− Supply voltage

• Industry-standard LC duplex connector

• 10 km link lengths at 8.5 Gbit/sec on 9 µm single-mode fiber

• IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe

• Compliance with the Restriction on Hazardous Substances (RoHS) directive

• Provides high system reliability through rigorous qualification and certification processes

• Leverages unique design parameters to provide the highest performance with industry-leading Brocade switch and director platforms to support business continuity and disaster recovery.

• Helps eliminate issues related to SFP incompatibility, reducing downtime and support costs.

• Helps eliminate issues resulting from unexpected design changes, providing ongoing end-to-end compatibility.

• Optimizes connectivity with Brocade platforms to enable maximum cable distance.

​

Protocol

• 8G Fiber Channel​

​

Parameters

​​

FAQ

• Is this genuine Brocade Original Transceiver?

Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since 2006 and never sell fake or copy brand items.

• Hong long does your SFP quality warranty provide?

​

For brocade SFP, we support 30days of free return and 1 year of free replacement for any quality issues.

• How do you send me the SFP module? and how long does it take?

​
We provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.

The express logistic generally takes 5-12 days to global.

​​

• Do you have regular stock of this Brocade transceiver?

​

Yes, we have regular stock of thousands of pcs, ready for a big volume order
