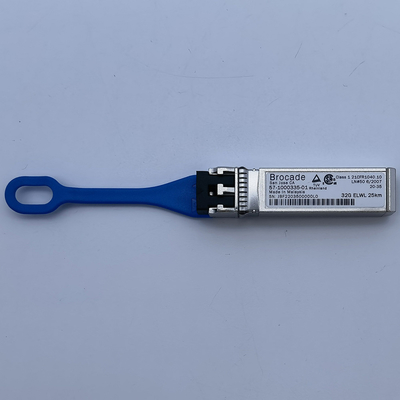

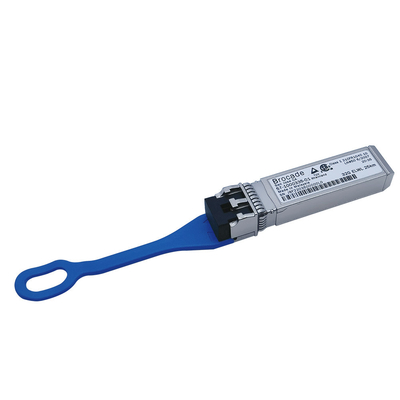

Brocade 32G FC SFP+ ELWL Original Transceiver XBR-000278 57-1000355-01 25KM SMF

Today’s enterprise data centers are undergoing an infrastructure transformation, requiring higher speeds, greater scalability, and higher levels of performance and reliability to better meet the demands of business. As speed and performance needs increase, optical transceivers— once considered a generic component of Fibre Channel switching technologies—have become an integral part of overall system design. However, optical transceiver design margins and parameters vary widely and can be the difference between an optimized, highly reliable fabric and incompatibility issues that drive up support costs.

The Brocade 32G Extended Long Wavelength (ELWL) 25 km SFP+, part of the Brocade family of small form-factor pluggable (SFP) optical transceivers, is optimized to fully leverage Brocade 32G switch and director products. Brocade ELWL SFPs extend native Fibre Channel connectivity over distance, enabling high-performance disaster recovery and business continuity solutions.

The Brocade ELWL SFPs are the standard choice for use in mainframe environments, connecting to IBM System z channels and FICON devices over distance for business continuity and disaster recovery. Together with Brocade switching products, they provide state-of-the-art performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.

Key Features

• Hot-swappable, low-voltage (3.3V) digital diagnostic optical transceivers that support highspeed serial links over single-mode optical fiber at signaling rates up to 28.05Gb/s

• 1310-nm DFB laser

• FC-PI-6 compliance for 28.05/14.025/8.5Gb/s operation

• Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers, providing real-time monitoring of the following:

− Transmitted optical power

− Received optical power

− Laser bias current

− Temperature

− Supply voltage

• Industry-standard LC duplex connector

• • 25-km link lengths on 9-µm singlemode fiber (with a 10-km minimum link length)

• IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe

• Compliance with the Restriction on Hazardous Substances (RoHS) directive

• Provides high system reliability through rigorous qualification and certification processes

• Leverages unique design parameters to provide the highest performance with industry-leading Brocade switch and director platforms to support business continuity and disaster recovery.

• Helps eliminate issues related to SFP incompatibility, reducing downtime and support costs.

• Helps eliminate issues resulting from unexpected design changes, providing ongoing end-to-end compatibility.

• Optimizes connectivity with Brocade platforms to enable maximum cable distance.

• Extends Fibre Channel connectivity over distance in enterprise environments, enabling high performance business continuity and disaster recovery solutions.

Protocol

• 32G Fiber Channel​

​

Parameters

​​

FAQ

• Is this genuine Brocade Original Transceiver?

Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since 2006 and never sell fake or copy brand items.

• Hong long does the SFP warranty provide?

​

For brocade SFP, we offer 30days of free return, one-year of free replacement.

• How do you send SFP to my place? and how long does it take?

​
Yes, we provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.

The express logistic generally takes 5-12 days to global.

​​

• Do you have regular stock of this Brocade transceiver?

​

Yes, we have regular stock of this model, ready to ship in 3 working days
