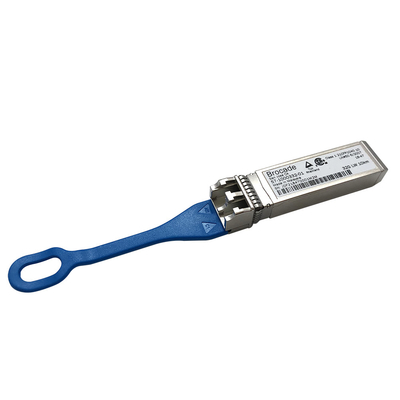

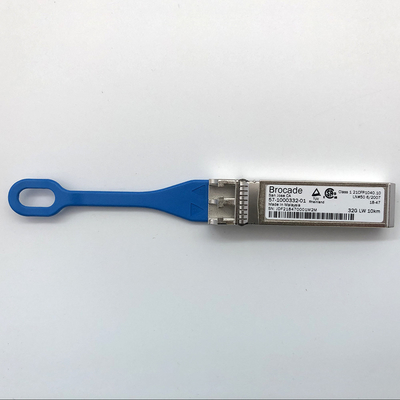

Brocade Original Transceiver 57-1000332-01 XBR-000238 32G FC SFP+ LWL 10KM SMF

Today’s enterprise data centers are undergoing an infrastructure transformation, requiring higher speeds, greater scalability, and higher levels of performance and reliability to better meet the demands of the business. As speed and performance needs increase, optical transceivers— once considered a generic component of Fibre Channel switching technologies—have become an integral part of overall system design.

The Brocade® 32Gb/s Long Wavelength (LWL) 10 km SFP+, part of the Brocade family of Small Form-Factor Pluggable (SFP) optical transceivers, is optimized to fully leverage the Brocade 32Gb/s director and switch products. Brocade LWL SFPs extend native Fibre Channel and mainframe over distance, enabling high-performance disaster recovery and business continuity solutions.

The Brocade LWL SFPs are the standard choice for use in mainframe environments, connecting to IBM System z channels and FICON devices over distance for business continuity and disaster recovery. Together with Brocade switching products, 32Gb/s LWL SFPs and single-mode fiber provide enterprises with state-of-the-art performance and availability, helping IT organizations achieve new levels of infrastructure consolidation, security, and up

Key Features

• 1310-nm DFB laser

• FC-PI-6 compliance for 28.05/14.025/8.5Gb/s operation

• Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers, providing real-time monitoring of the following:

− Transmitted optical power

− Received optical power

− Laser bias current

− Temperature

− Supply voltage

• Industry-standard LC duplex connector

• 10-km link lengths on 9-µm single mode fiber

• IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe

• Compliance with the Restriction on Hazardous Substances (RoHS) directive

• Provides high system reliability through rigorous qualification and certification processes

• Leverages unique design parameters to provide the highest performance with industry-leading Brocade switch and director platforms to support business continuity and disaster recovery.

• Helps eliminate issues related to SFP incompatibility, reducing downtime and support costs.

• Helps eliminate issues resulting from unexpected design changes, providing ongoing end-to-end compatibility.

• Optimizes connectivity with Brocade platforms to enable maximum cable distance.

• Extends Fibre Channel connectivity over distance in enterprise environments, enabling high performance business continuity and disaster recovery solutions.

• Ensures reliable FICON connectivity, interoperability, and architectural adherence between IBM Z mainframes and Brocade SAN products and storage devices

Protocol

• 32G Fiber Channel​

​

Parameters

​​

FAQ

• Is this genuine Brocade Original Transceiver?

Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since 2006 and never sell fake or copy brand items.

• Does your SFP provide a quality warranty?

​

For brocade SFP, we offer a 1-year warranty.

• Can you send this SFP module to my place? and how long does it take?

​
Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.

The express logistic generally takes 5-12 days to global.

​​

• Do you have regular stock of this Brocade transceiver?

​

Yes, we have regular stock of thousands of pcs, ready for a big volume order
