Product Details:
|
| Generation: | 6 | Fibre Channel Ports: | 8-, 16-, And 24-port Configurations |
|---|---|---|---|
| Aggregate Bandwidth: | 768Gb/s | Performance: | Auto-sensing Of 4, 8, 16, And 32G Port Speeds |
| AC Input: | 90 V To 264 V ~3.5 A | Data Traffic Types: | Fabric Switches Supporting Unicast |
| Weight: | 7.5kg | ||
| High Light: | G610 Brocade SAN Switch 8X32G,brocade 32gb switch BR-G610-8-32G-0-Z,brocade 32gb switch SWL SFP AC |
||
BR-G610-8-32G-0-Z BROCADE G610 8P 8X32G SWL SFP AC Storage Switch For Data Center

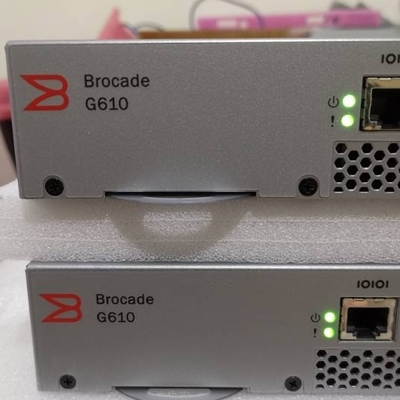

Brocade G610 8-Port with 8 32Gbps SWL SFPS Switch
Product Description:Brocade Gen 6 Fibre Channel is the purpose-built network infrastructure for mission-critical storage, delivering breakthrough
| Main features | Systems Architecture |
| Power consumption |
76.52W with all 24 ports populated with 32G SWL optics.
55.83W for idle configuration (all optics loaded but not initialized).
|
| Scalability | Full-fabric architecture with a maximum of 239 switches. |
| Certified maximum | 6000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required. |
| Management access | 10/100/1000 Mb/s Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45) and one USB port. |
| ISL Trunking |
Frame-based trunking with up to eight 32G SFP+ ports per ISL trunk; up to 256Gb/s per ISL trunk.
Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS fabrics.
|
| USB | One USB port for system log file downloads or firmware upgrades |
| Vibration |
Operating: 0.5g sine, 0.4 grms random, 5 Hz to 500 Hz
Nonoperating: 2.0g sine, 1.1 grms random, 5 Hz to 500 Hz
|
| Power supply | Base switch includes a single, fixed power supply with four integrated system cooling fans. |
