Product Details:
|
| Generation: | 5 | Fibre Channel Ports: | Switch Mode (default): 24 6 Or 48 Port Configurations (12-port Increment Through Ports On Demand [PoD] License) |
|---|---|---|---|
| Aggregate Bandwidth: | 768 Gbps End-to-end Full Duplex | Performance: | Auto-sensing Of 2 4 8 And 16Gbps Port Speeds |
| AC Input: | 85 V To 264 V ~5 A To 2.5 A | Data Traffic Types: | Fabric Switches Supporting Unicast |
| Weight: | 14.5kg | ||
| High Light: | BR-6510-48-16G-R brocade 6510 switch,Managed Rack brocade 6510 switch,Brocade Enterprise Bundle Switch 48 Ports |
||

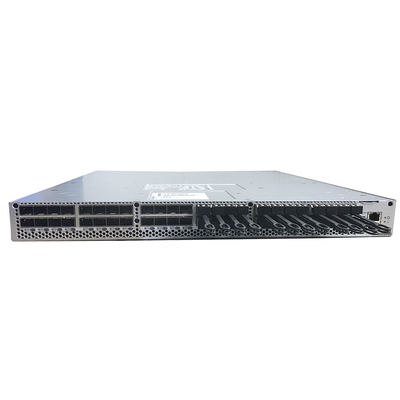

Brocade BR-6510-48-16G-R Enterprise Bundle Switch 48 Ports Managed Rack
Product Description: Brocade 6510 is Flexible, Easy-to-Use Enterprise-Class SAN Switch for Private Cloud Storage; To keep pace with growing business demands, data centers are transitioning to highly virtualized, private cloud storage environments. This approach enables organizations to consolidate and simplify their IT resources, resulting in increased business agility and lower capital and operating expenses. But virtualization is not without its challenges. Data centers must keep up with the explosive data growth and dynamic changes driven by virtualized workloads. Selecting the right network is key to realizing the full benefits of these cloud-based architectures.
| Main features | Systems Architecture |
| AC Power consumption |
110 W with all 48 ports populated with16 Gbps SWL optics 72 W for empty chassis with no optics
|
| Scalability | Full-fabric architecture with a maximum of 239 switches |
| Certified maximum | 6000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required |
| Management access | 10/100 Mbps Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45), and one USB port |
| ISL Trunking | Frame-based Trunking with up to eight 16 Gbps ports per ISL trunk; up to 128 Gbps per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS. |
| USB | One USB port for system log file downloads or firmware upgrades |
| Vibration | Operating: 0.5 g sine, 0.4 grms random, 5 Hz to 500 Hz Non-operating: 2.0 g sine, 1.1 grms random, 5 Hz to 500 Hz |
| Power supply |
Dual, hot-swappable redundant power supplies with integrated system cooling fans
|
FAQ
Q1. What Brocade optical transceivber can be used on this Brocade 6510 switch?
A1: 57-1000487-01 XBR-000492 XBR-000493 etc Brocade 4G 8G 16G whole series optical modules can be used;
Q2. How does your company do regarding quality control?
A2: All our Brcoade switch were from formal channels, and we only sell original type products for the past 16 years;
Q3. What are the warranty of this switch?
A3: 1 year for repair;
