Product Details:
|
| Generation: | 5 | Fibre Channel Ports: | Switch Mode (default): 24 6 Or 48 Port Configurations (12-port Increment Through Ports On Demand [PoD] License) |
|---|---|---|---|
| Aggregate Bandwidth: | 768 Gbps End-to-end Full Duplex | Performance: | Auto-sensing Of 2 4 8 And 16Gbps Port Speeds |
| AC Input: | 85 V To 264 V ~5 A To 2.5 A | Data Traffic Types: | Fabric Switches Supporting Unicast |
| Weight: | 14.5kg | ||
| High Light: | BR-6510DC-24-8G-R brocade 6510 switch,8GB SWL Brocade 6510 SAN Switch,DC Power 24P brocade 8gb switch |
||

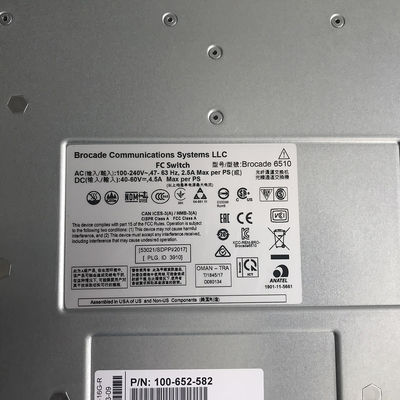

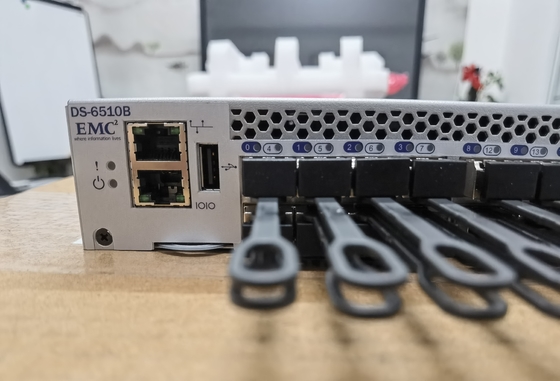

Brocade Communication BR-6510DC-24-8G-R 6510 Switch DC Power 24P 8GB SWL
Product Description:The Brocade 6510 Switch meets thedemands of hyper-scale, private cloud storage environments by delivering
| Main features | Systems Architecture |
| AC Power consumption |
110 W with all 48 ports populated with16 Gbps SWL optics 72 W for empty chassis with no optics
|
| Scalability | Full-fabric architecture with a maximum of 239 switches |
| Certified maximum | 6000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required |
| Management access | 10/100 Mbps Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45), and one USB port |
| ISL Trunking | Frame-based Trunking with up to eight 16 Gbps ports per ISL trunk; up to 128 Gbps per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS. |
| USB | One USB port for system log file downloads or firmware upgrades |
| Vibration | Operating: 0.5 g sine, 0.4 grms random, 5 Hz to 500 Hz Non-operating: 2.0 g sine, 1.1 grms random, 5 Hz to 500 Hz |
| Power supply |
Dual, hot-swappable redundant power supplies with integrated system cooling fans
|
FAQ
Q1. What Brocade optical transceivber can be used on this Brocade 6510 switch?
A1: 57-0000088-01 XBR-000192 XBR-000193 etc Brocade 4G 8G 16G whole series optical modules can be used;
Q2. How does your company do regarding quality control?
A2: All our Brcoade switch were from formal channels, and we only sell original type products for the past 16 years;
Q3. What are the warranty of this switch?
A3: 1 year for repair;
