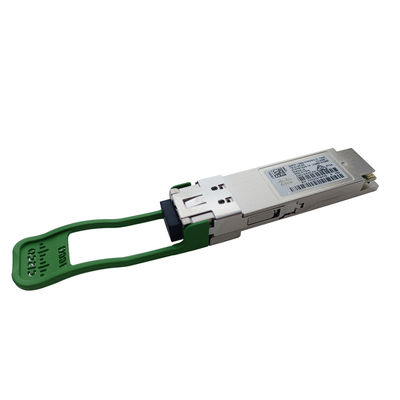

QSFP-100G-CWDM4-S 100G-CWDM4 QSFP28 1310nm 2km SMF Optical Module Transceiver

The features of QSFP-100G-CWDM4-S

Features

• PRODUCT FEATURES

• Optical line rate of 103.125 Gbps (4 x 25.78125 Gbps)

• Requires host system to enable RS-FEC RS (528,514) in accordance with IEEE802.3 clause 91

• Supports up to 5 dB channel insertion loss including up to 2 km of single mode fiber

• Operating case temperature range of 0ºC to70ºC

• Tx and Rx re-timers

• External reference clock is notrequired

• Power dissipation < 3.5 W

• Single 3.3 V power supply

• Integrated CWDM TOSA/ROSA

• Duplex single mode LC opticalreceptacle

• 100G CWDM4 MSA Technical Specification Rev 1.0compliant

• CAUI-4 chip-to-module 100G four-lane electrical interface per IEEE 802.3 Annex 83E compliant

• Supports digital diagnosticmonitoring

• Hot pluggable 38-pin electricalinterface

• 2-wire I2C management interface

• Green handle

Applications

• Local area network (LAN)

• Wide area network (WAN)

• Ethernet switches and routerapplications

FAQ

Q1. Are your Optical Transceivers original?

A1.Yes, all our optical transceivers are guaranteed 100% original!

Q2. What will you do if I found the product has any quality problem?

A2.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!

Q3. What is the operating temperature range of optical modules?

A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Extended temperature range(EXT):-5 to 85°C(23 to 185°F)

Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)

Q4. What are the trade terms?

A4.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

Payment term: Western Union, T/T, Alipay, Escow, Money Gram

Warranty: 1 Year

Q5. Do you have compatible ones?

A5.Yes, we have our own brand:Top-trans, including 1X9,SFP, XFP, SFP+, BIDI in all kinds of specifications.
