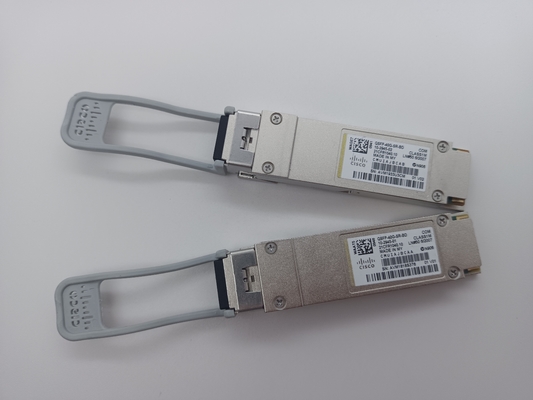

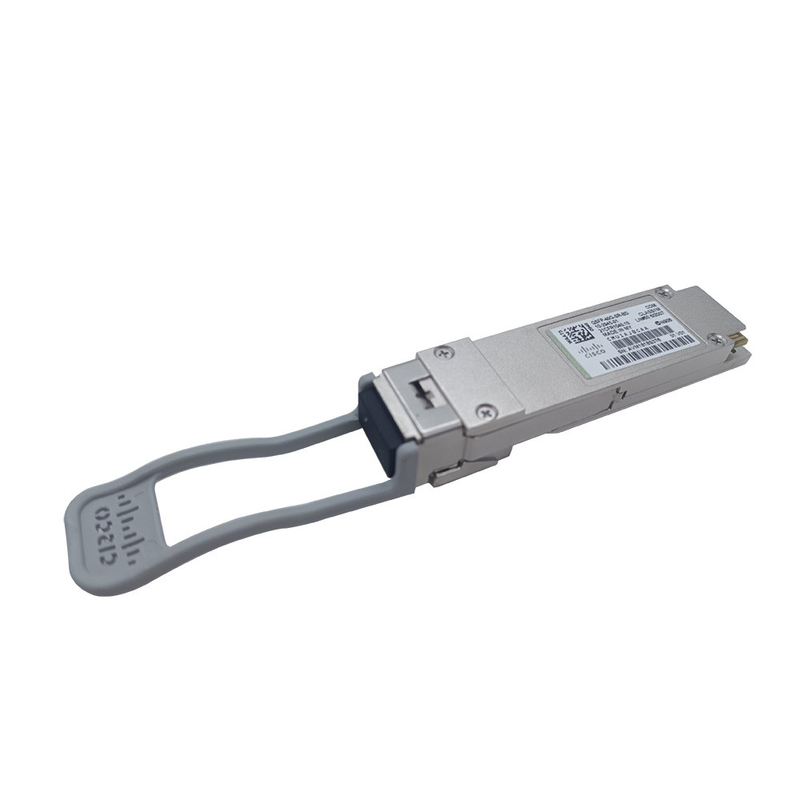

850nm Cisco 40G QSFP SR4 BIDI Transceiver QSFP-40G-SR-BD

850nm Cisco 40G QSFP SR4 BIDI Transceiver QSFP-40G-SR-BD
850nm Cisco 40G QSFP SR4 BIDI Transceiver QSFP-40G-SR-BD 850nm Cisco 40G QSFP SR4 BIDI Transceiver QSFP-40G-SR-BD

Large Image :  850nm Cisco 40G QSFP SR4 BIDI Transceiver QSFP-40G-SR-BD

Product Details:
Place of Origin: Malaysia
Brand Name: QSFP-40G-SR-BD
Certification: RoHS
Model Number: QSFP-40G-SR-BD
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Price is negotiable
Packaging Details: Anti-boxes
Delivery Time: within 24 hours
Payment Terms: T/T, Paypal、Credit card
Supply Ability: 5000pcs/month

850nm Cisco 40G QSFP SR4 BIDI Transceiver QSFP-40G-SR-BD

Description
Data Rate: 40Gb/s Form-Factor: QSFP
Center Wavelength: 850nm Transmission Distance: 150m
Temperature: 0 To 70°C Weight: 0.16kg
Warranty: 1 Year DDM: Yes
Highlight:

850nm QSFP-40G-SR-BD

,

cisco qsfp 40g bidi Transceiver

,

850nm Cisco 40G QSFP SR4

QSFP-40G-SR-BD QSFP+ 40G SR4 BIDI 40GBASE QSFP Modules Transceiver



The features of QSFP-40G-SR-BD



Fiber Type SMF
Connector Double LC Connector
Lasers MPO
Tx power -4.00 to +2.50 dBm
Rx sensitivity -11.00 to + 0.50 dBm
Extinction Ratio 3.5dB
Power Consumption 2.5W
Single Power Supply

3V



850nm Cisco 40G QSFP SR4 BIDI Transceiver QSFP-40G-SR-BD 0



850nm Cisco 40G QSFP SR4 BIDI Transceiver QSFP-40G-SR-BD 1



Features

  • Compliant to the 40Gb per IEEE 802.3ba-2010
  • Compliant to QSFP+ SFF-8436 Specfication
  • Power Level 4: Max Power 3.5W
  • Class 1M Eye Safety
  • High port density: 21mm horizontal port pitch
  • Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data
  • Links up to 100m using OM3 &150m using OM4
  • Proven High Reliability technology: VCSEL transmitters and PIN receiver
  • Hot pluggable transceiver for ease of installation and servicing
  • Two Wire Serial (TWS) Management Interface with maskable interrupts for expanded functionality

Applications

  • 40 Gigabit Ethernet interconnects
  • Datacom/Telecom switch & router connections
  • Data aggregation and backplane applications
  • Proprietary protocol and density applications



FAQ

Q1. Are your Optical Transceivers original?

A1.Yes, all our optical transceivers are guaranteed 100% original!





Q2. What will you do if I found the product has any quality problem?

A2.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!



Q3. What is the operating temperature range of optical modules?

A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Extended temperature range(EXT):-5 to 85°C(23 to 185°F)

Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)





Q4. What are the trade terms?

A4.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

Payment term: Western Union, T/T, Alipay, Escow, Money Gram

Warranty: 1 Year



Q5. Do you have compatible ones?

A5.Yes, we have our own brand:Top-trans, including 1X9,SFP, XFP, SFP+, BIDI in all kinds of specifications.
