Original Arista QSFP-100G-SWDM4 850nm 100m 70m/OM3 100m/OM4 Duplex MMF Transceiver​

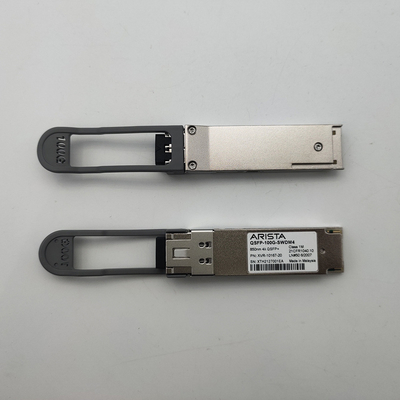

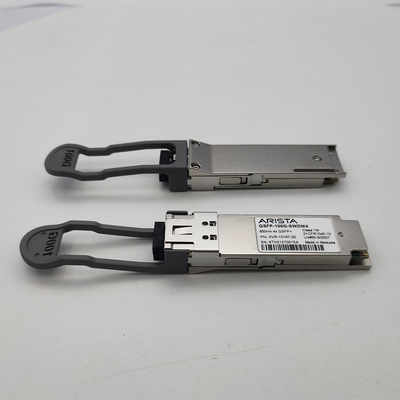

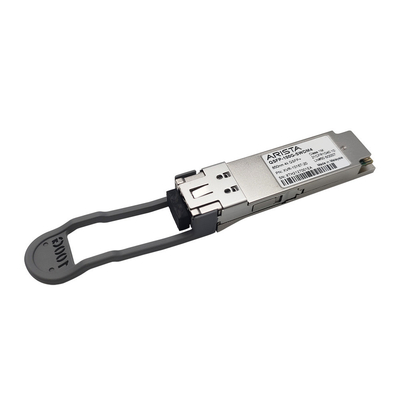

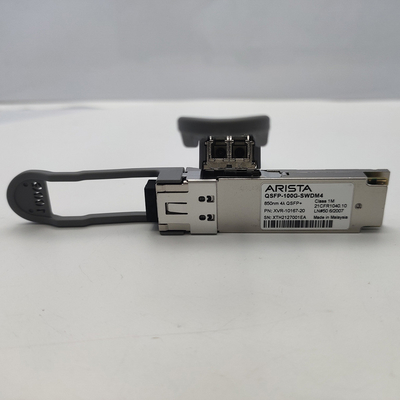

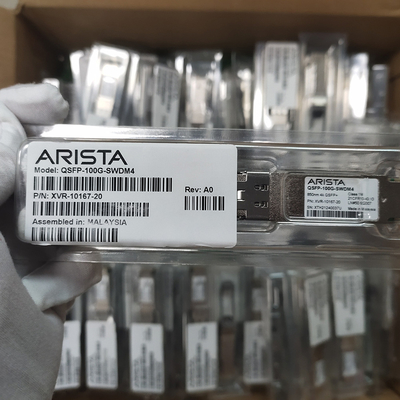

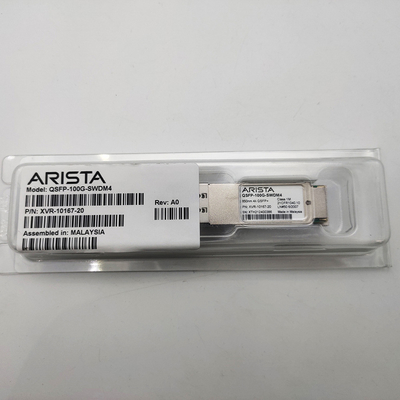

Arista QSFP-100G-SWDM4 Optical Transceiver Module

Description: The Arista QSFP-100G-SWDM4 is a high-performance optical transceiver module designed for use in data center and enterprise networks. It enables seamless connectivity for high-speed data transmission over multimode fiber, providing reliable and efficient networking solutions.

Key Features:

• Form Factor: QSFP28 (Quad Small Form-factor Pluggable)
• Data Rate: 100 Gbps
• Transmission Distance: Up to 100 meters over OM5 multimode fiber
• Wavelength: SWDM (Shortwave Wavelength Division Multiplexing)
• Fiber Type: OM3/OM4/OM5 multimode fiber
• Connector Type: MTP/MPO connector
• Digital Diagnostics Monitoring (DDM): Allows real-time monitoring of key parameters for enhanced network management
• Hot-swappable: Enables plug-and-play installation without disrupting network operations
• Low Power Consumption: Energy-efficient design minimizes power consumption and operating costs
• Wide Operating Temperature Range: Suitable for deployment in various environmental conditions
• Compliance: Meets industry standards and regulations for compatibility and reliability

Applications:

• High-speed data center interconnects
• Enterprise network backbone connections
• Cloud computing environments
• Storage area networks (SANs)
• High-performance computing (HPC) clusters

Technical Specifications:

• Optical Output Power: XX dBm (minimum)
• Receiver Sensitivity: XX dBm (maximum)
• Operating Temperature Range: XX°C to XX°C
• Supply Voltage: XX V (typical)
• Power Consumption: XX Watts (typical)

Parameters OF QSFP28

FAQ OF QSFP28

• We need port split from 400G to 4x100G What you can provide?

​

For 400G to 4 * 100G, we offer the breakout fiber link length for DR-500M, FR-2KM, LR-10KM

QSFPDD-400G-PLR4 with 4 * QSFP28-100G-LR1

QSFPDD-400G-FR4 with 4 * QSFP28-100G-FR1

QSFPDD-400-DR4 with 4 * QSFP28-100G-DR1

Via 8 cores MTP/MPO to 4 of 2 cores LC Duplex Breakout Cable

• Can I use your QSFP28 module in Huawei CE16800 switches?

​
Yes, Huawei compatibility are the best popular demand of our past customers.
Our optics will guarantee the work on Huawei Cloud Engine switches.

​​

• Can your optics interoper with QSFP28 LR4?

​

No, their optical modulation are different, when LR4 uses 4 * 25G NRZ but this LR1 uses 1 * 100G PAM4

• What if I find your optics are not satifiying with our fiber link, occurs critical signal losses?

​

Our optics is produced using fresh new components through the strict QC control over parameter and performance test, on the error detector and eye diagram. The qualification ratio is over 99.9%

If any quality defects happen within the warranty, we will arrange the replace/repair service immediately
